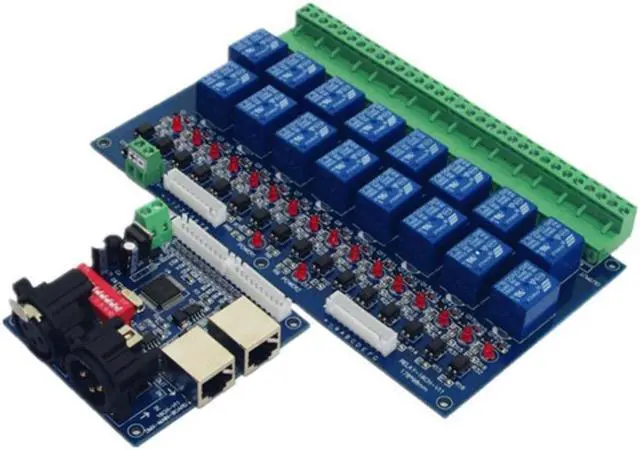

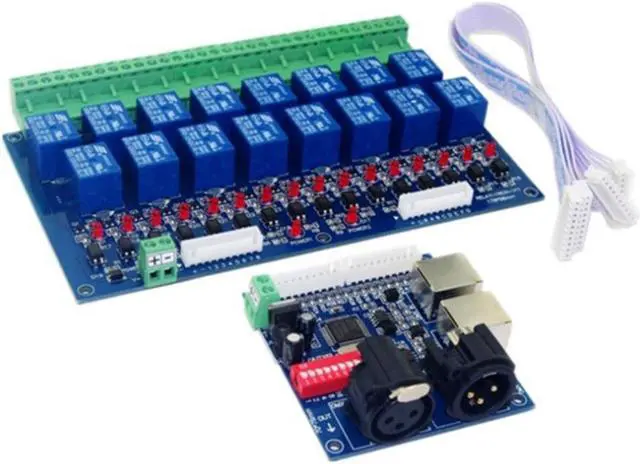

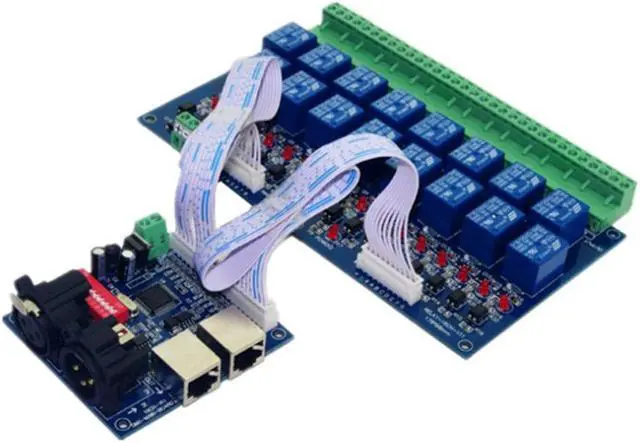

16CH Relay Switch DMX512 Controller,Relay Output,DMX Relay Control,16Way Relay Switch DC12V Main-Board & DMX-RELAY-16C

Type:Portable
DSD Sampling Frequencies:2.8224 MHz (DSD64)
Certification:NONE
Inputs:USB Type-A
PCM Sampling Frequencies:96 kHz
Material:Plastic
Origin:CN(Origin)
Outputs:RCA
PCM Word Length:16-bit
Model Number:relay control
Dimensions (W x H x D):178 x 98 x 25mm
Bluetooth:No
WIFI:Yes
USB Compatibility:ios
Working temperature:2060Celsius
Supply voltage:DC12V
Product size:L76 x W70 x H32mm
Output:16CH TTl signal
Controller:XLRRJ45
weight:0.15kg
DMX512 data:0127 Relay switch OFF, 128255 Relay switch On

We offer discount for large quantity. Welcome to contact with us!
Controled Method: DMX relay control
Model Number: DMX-RELAY-16CH
Features: 16CH DMX relay decoder
Item Type: RGB Controler
Applicable Lights: LED bulb Light Lamp
Main-board:
Working temperature:-20-60Celsius
Supply voltage:DC12V
Product size :L76 x W70 x H32mm
Output:16CH TTl signal
Controller:XLR+RJ45
weight:0.15kg
DMX512 data:0-127 Relay switch OFF, 128-255 Relay switch On

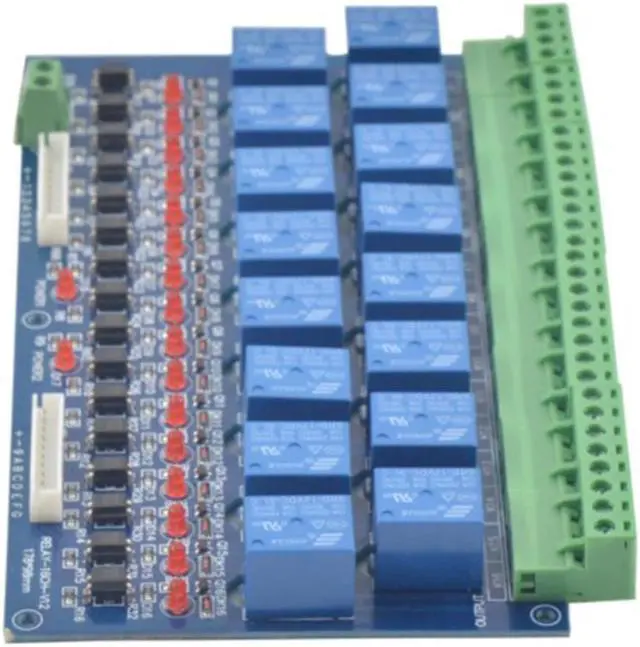

Relay-16CH:
Working temperature:-20-60Celsius
Supply voltage:DC12V
Product size :L178 x W98 x H25mm
Output:16 group relay switch (Normally Open), DC5V-48V MAX10A, AC5V-250V MAX10A
weight:0.35kg
colour:Blue
Material:plastic
Package Contents:
1 x relay control
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
