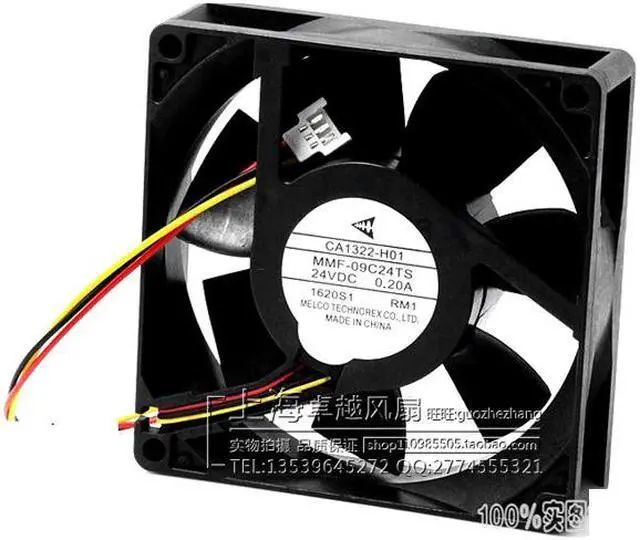

inverter fan CA1322-H01 MMF-09D24TS-RM1 24V 0.20A

Power:3W
Lines:3 Lines
Power Interface:3pin
Model Number:CA1322-H01
Application:Graphics Card
Heatsink Material:Copper & Aluminum
Type:Fan
Package:No
Air Volume:45CFM
Noise:30dBA
Compatible CPU:1
Bearing:Two Ball Bearing
Fan Life:30000 hrs
Fan Speed Control:3500RPM
Fan Size:70*70*25


AFB0724VH 7025 24V 0.33A 7CM inverter dual ball cooling fan?
MITSUBISHI inverter fan MMF-09D24TS-RM1 three line
Current: 0.20A
Voltage: 24VDC
MITSUBISHI inverter A500 series
Reminder:
The converter cooling fan design life of 25000 hours to 40000 hours, the continuous operation of 3-5 must be replaced, otherwise the inverter capacity will decrease or often trip protection, because the fan bearing cooling capacity decline caused by aging, damage will often bring some users of the converter, due to the market to buy the high air volume fan with cheap the current domestic small volume and small fan instead of replacement, soon will be damaged, directly affect the service life of converter. Pay attention to the nominal voltage, current and air flow of the fan when changing.
On the market a lot of fake inverter fan use time is short, the amount of heat is limited, seriously affect the inverter itself heat, it is easy to lead to the module burned, not covet cheap.
