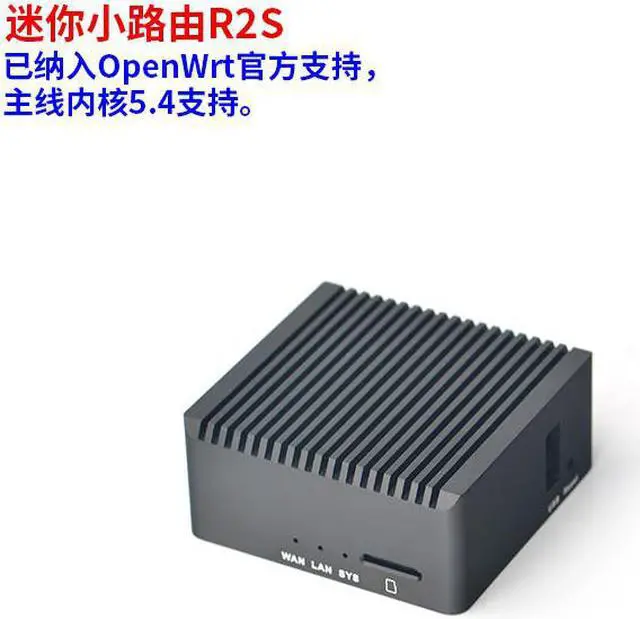

NanoPi R2S Mini Router RK3328 Dual Gigabit Ethernet Port 1GB Memory OpenWrt / LE

Certification:NONE
Origin:CN(Origin)
State of Assembly:Ready-to-Go
Compatibility:All Compatible
Bundle:1
Camera Equipped:No
Model Number:NanoPi R2S

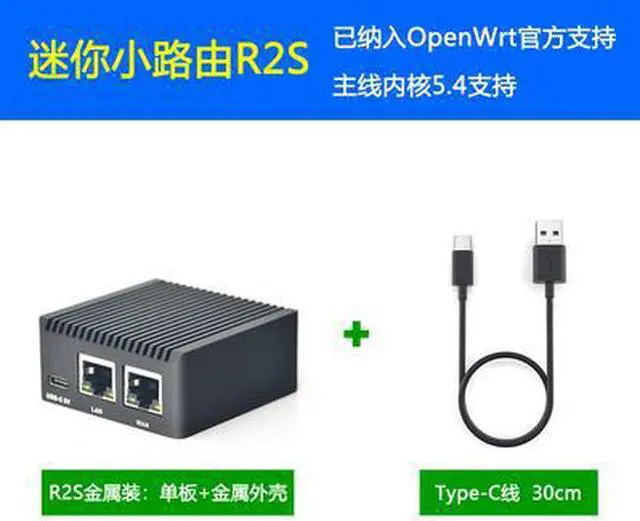

R2S board + heat sink + case (assembled)
WiKi Wiki tutorial (firmware introduction, instructions for use, operation steps, etc.)
//wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S
Other system firmware download
//download.friendlyarm.com/nanopir2s
Schematic (pdf format)
//wiki.friendlyarm.com/wiki/images/5/59/SCH_NanoPi_R2S_V1.0-1912.pdf
Dimensions (dxf format)
//wiki.friendlyarm.com/wiki/index.php/File:Dimension_NanoPi_R2S_V1.0-1912_PCB.rar
How to use USB WiFi as AP on NanoPi R2S
//wiki.friendlyarm.com/wiki/index.php/How_to_use_a_USB_WiFi_adapter_as_an_access_point_on_FriendlyWrt
How to use JellyFin video server on NanoPi R2S through Docker
//wiki.friendlyarm.com/wiki/index.php/How_to_setup_JellyFin_media_system_on_NanoPi-R2S/zh
750-45 product introduction.jpg
For details, please refer to
//wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S/zh#.E5.A6.82.E4.BD.95.E7.BC.96.E8.AF.91.E7.B3.BB .E7.BB.9F
For details, please refer to
//wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S/zh#.E7.8E.A9.E8.BD.ACDocker.E5.BA.94.E7.94.A8
For details, please refer to
//wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S/zh#.E5.A6.82.E4.BD.95.E4.BD.BF.E7.94.A8USB_WiFi
For details, please refer to
//wiki.friendlyarm.com/wiki/index.php/NanoPi_R2S/zh#.E5.A6.82.E4.BD.95.E8.B6.85.E9.A2.91
CPU Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GHz
Memory RAM: 1GB DDR4
Storage MicroSD Slot: MicroSD x1 for external storage up to 128GB

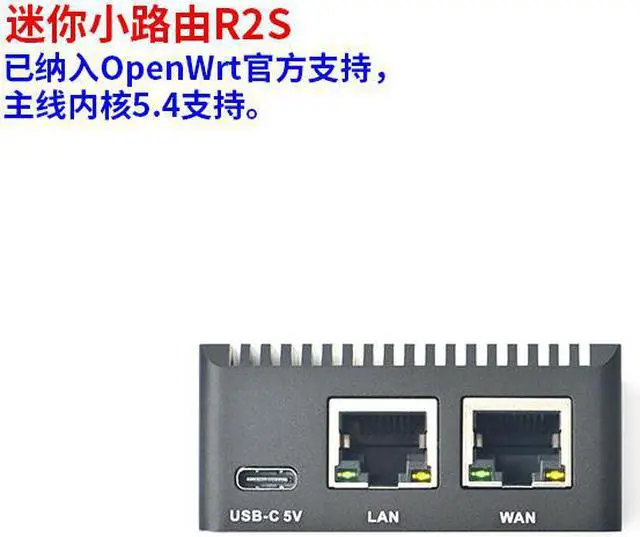

Connectivity Ethernet: Gbps Ethernet x1
USB 3.0 to Gbps Ethernet x1
USB USB 2.0 Host x1: USB Type A
USB-C x1: Power input(5V/2A) and Slave
Pin-header Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
Button User Button x1
LED SYS LED(Red) x1
WAN LED(Green) x1
LAN LED(Green) x1
Others Working Temperature: 0? to 80?
Power DC 5V/2A
OS Support FriendlyWrt 19.07-snapshot (64-bit)
Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11)
PCB 6 Layer
Dimension 55.6x52 mm
Weight 26.68g(Without Case) / 115g(With Case)
