Tester Inline Tester Power over Ethernet Voltage Current Tester Test for POE Testing Network Cable Continuity Checking

Origin:CN(Origin)
Package:Yes
Type:Cable Crimper
Model Number:

Tester Inline Tester Power over Ethernet Voltage Current Tester Test for POE Testing Network Cable Continuity Checking

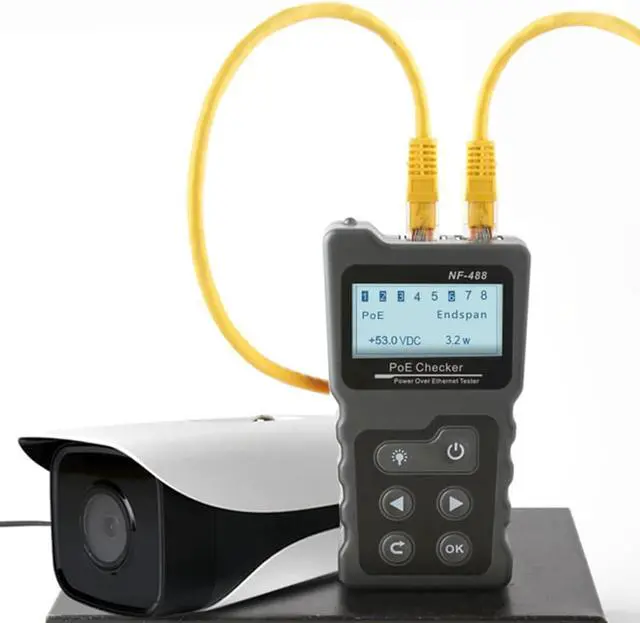

Test the information of the standard PoE device, such as af/at standard, power supply voltage, power supply polarity and mode.
Identify the supply voltage, power supply polarity and mode of non-standard PoE devices.

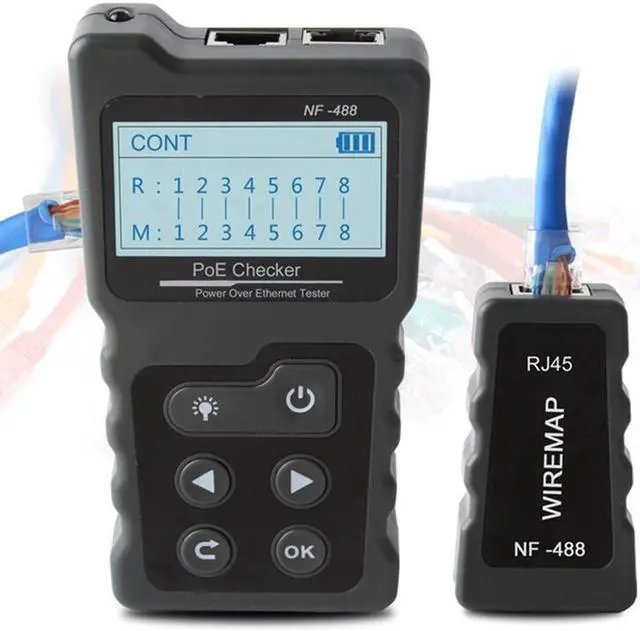

Check the short circuit, crossover and open circuit status in the network cable.
Test the current, voltage and power consumed by DC appliances.

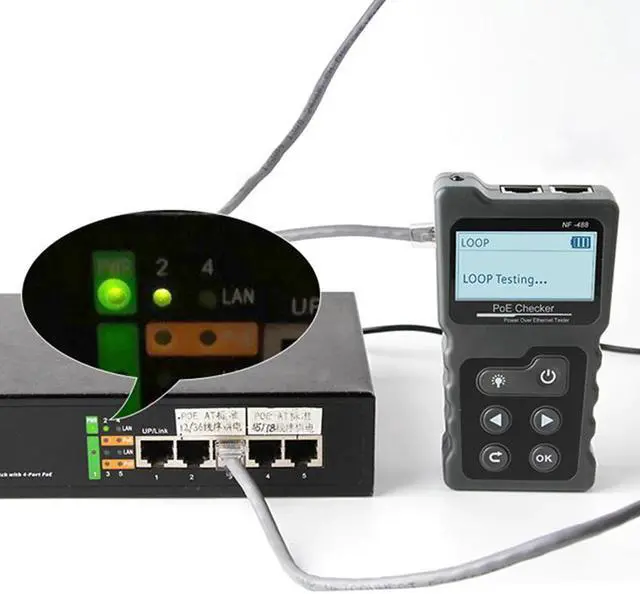

The loop-back test function of the switch.
NF-488 Transmitter specification
Indictor LCD 128x64 mm, with back light
Continulity function Cable types CAT5,CAT6
Check UTP/STP cable YES
Cable short indicate YES
Max testing range 600m
Wire mapping Emitter +Remote
Emitter + switch/routor
PoE function
Test range DC5-60V POE switch

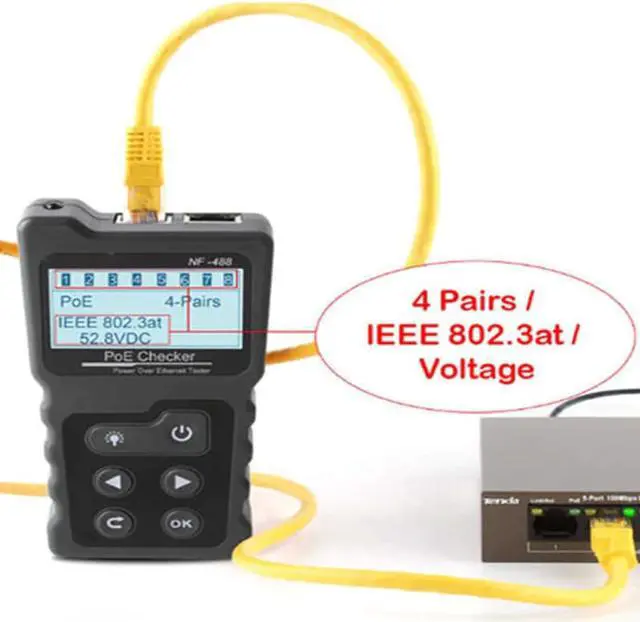

Standard identify 802.3af/at ( standard/non-standard)
Test range power 0-18W
Output interface YES
Power function Voltage test range DC0-60V
Current test range 0-3A
Power test range 0-180W
Input voltage protection DC48V 5mA
Max working current less than or equal to 80mA
Loopback Compatible with 10M ,100M,1000M switch
Power supply 3*AAA(Not include)
NF-488 Remote Specification
Ports RJ45
Function Wire mapping for network cable
Input voltage protection DC48V 5mA
Colour: as shown
Material: plastic
Package Contents:

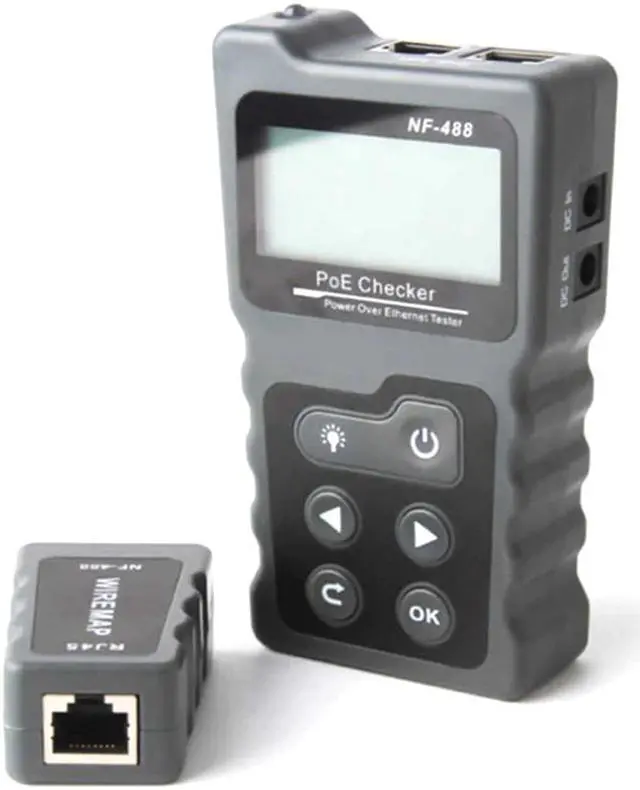

1 * emitter
1 * remote control
1 * english manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
