Dual Hole Car Spark Plug Tester Ignition System Coil Engine Inline Autos Diagnostic Test Tool Igniton Spark Tester Spark Test

Origin:CN(Origin)
Model Name:OSPT
External Testing Certification:ce
Electronic:No
Hardware Version:Latest
Item Height:10cm
Item Length:20cm
Power:WW
Material Type:Best Quality
Item Type:Other
Item Weight:0.4kg
Software Version:Latest
Voltage:12V
Item Width:7cm
Feature:two testing holes and can test two spark plugs meanwhile
Function:Test spark plug performance and ignition strength
Product Type:OBD2 Car Diagnostic Tool Scanner
Support Cars:12V Gasoline vehicles car spark plugs
Product Name:Dual Hole Car Spark Plug Tester Detector

Dual Hole Car Spark Plug Tester Ignition System Coil Engine Inline Autos Diagnostic Test Tool  Igniton Spark Tester  Spark Test
Note!!!
1.The diameter is 1.1cm of Car Spark Plug Tester Dual Hole
2.It supports 12V Gasoline vehicles car spark plugs
3.Please Turn Off Power before you place spark plug
4.The Spark Plug Tester is a high-voltage detector, so do not touch spark plug with hand at work to avoid danger.

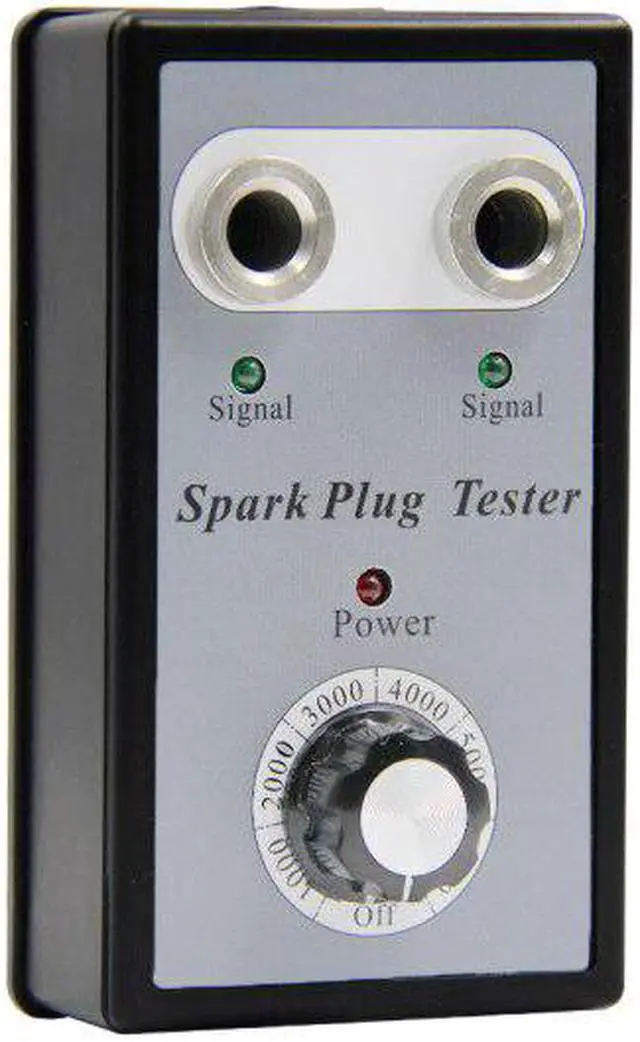

Display On Real Dual Hole Car Spark Plug Tester
Two types of Plugs
Details About Dual Hole Car Spark Plug Tester
Dual Hole Car Spark Plug Tester Detector have
two testing holes
, you can test two spark plugs meanwhile and and if you suspect any spark plug works improperly you could compare and test to make accurate judgment.
To Test spark plug performance and ignition strength, apply to
12V Gasoline vehicles car
spark plugs.
Adjustable double hole  car spark plug tester detector Ignition Plug Analyzer Diagnostic Tool
Car Spark Plug Tester Detector with Dual Hole Advantage:
Dual Hole Car Spark Plug Tester Detector have two testing holes, you can test two spark plugs meanwhile and and if you suspect any spark plug works improperly you could compare and test to make accurate judgment.
Usage: Test spark plug performance and ignition strength
Application Range:
12V Gasoline vehicles car spark plugs
Car Spark Plug Test principle:
In automobile ignition system, the high-voltage ignition coil generates a high-voltage (10000 volts or more), and the spark plug diverts it form
high -tension ignition coil into the cylinder engine, spark between the spark plug electrodes will ignite the mixture. The Detector could tell the
good spark plugs from the bad by the strength of the spark.
Car Spark Plug Tester User
Manual
:
1.Place the Spark Plug into tester hole 1 or 2; If you want to compare the spark plug and old one, place spark plug into hole 1 and the old on into hole 2
2.Connect to power supply
3.Turn the key switch 4 clockwise to turn on tester, indicator 3 will light up, tester is now working at 1000rpm/min.
4. Again turn the key switch 4 clockwise,you can adjust the working frequency between 1000rpm to 5000rpm/min.
 The higher the frequency, the stronger the spark strength.
Gasoline Car Spark Plug Tester Product
Parameters
:
Main Unit Size:145*85*60mm
Main Unit Weight:220G( Not including Power Adapter)
Power Adapter: Input 100-240V AC /  Output 12V 1A DC
12V Gasoline vehicles Spark Plug Tester
Package
Includes:
1pc x Spark plug tester
1pc x Power Adapter
