Delta Afb0712hhb 0.45a AMD CPU Radiator 7015 4-Pin PWM Ball Fan

Certification:CE
Origin:CN(Origin)
Application:Computer Case
Package:Yes
Compatible CPU:yes
Fan Life:40000 hrs
Lines:Photos
Heatsink Material:plastic

Delta AFB0712LB 12v 0.14A 7015 7cm 3-wire computer CPU heat dissipation ball fan
?
10
suction fan for barbecue oven centrifugal turbine blower BFB1012H 9733 12v 1.20A
?
8.88
NMB 9038 12V 1.6A 9CM Max airflow rate fan PWM temperature control fan 3615ML-04W-B76
?
18.88
delta AFC1212DE 12038 12v 1.6A wind 154.5CFM PWM temperature control mining machine fan
?
10.55
delta strong wind power 12V car/motorcycle turbocharger violent fan heat dissipation air-cooled oil cooling modification
?
10

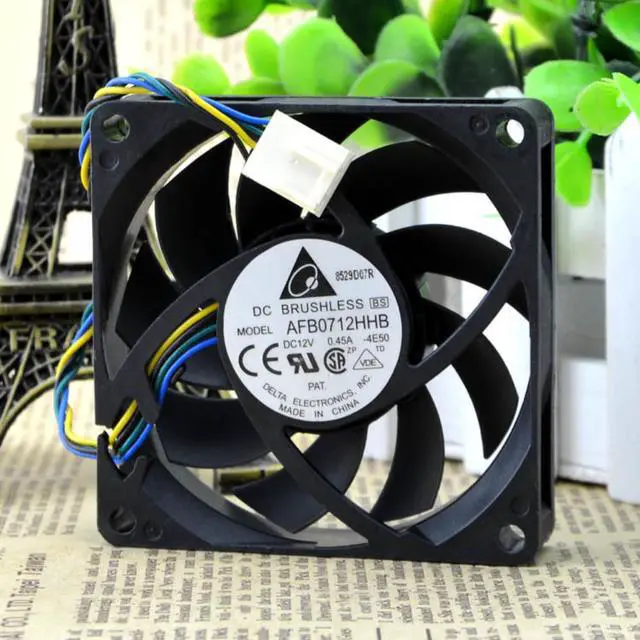

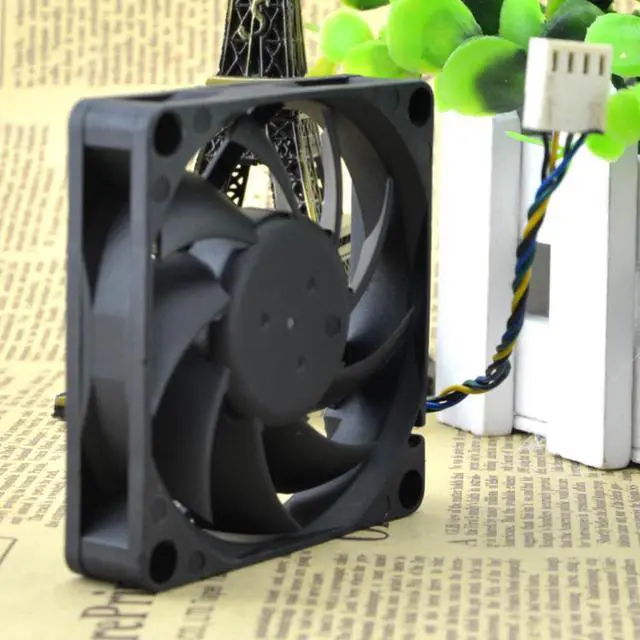

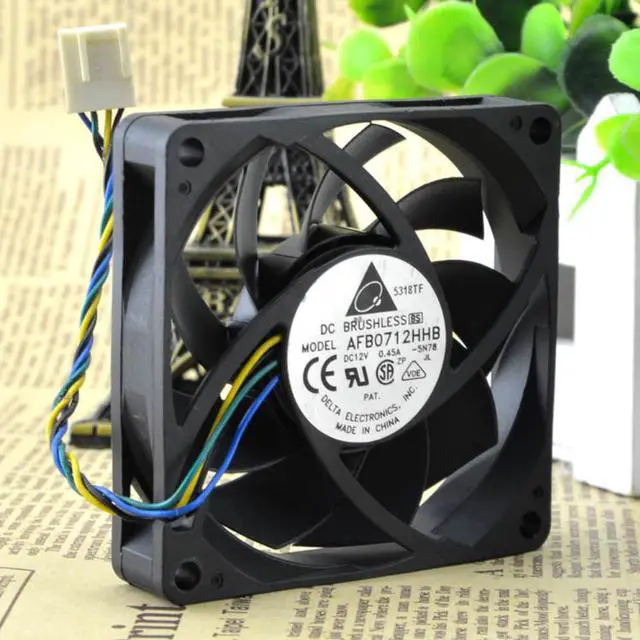

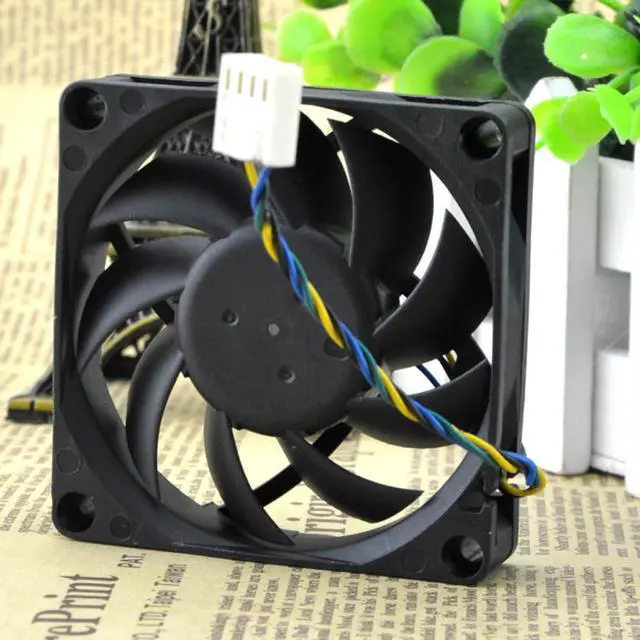

Delta AFB0712HHB 0.45A AMD CPU radiator 7015 4-pin PWM ball fan
?
12
product's brand: Delta
product Model: AFB0712HHB
appearance size: 70mm × 70mm × 15mm
rotational speed reference: 1000~5000±10%RPM
bearing Type: ball bearing
rated Voltage: 12V
rated Voltage: 0.45A
port type: the 4pin port of the main board can also be applied to customers who need the 3PIN Max airflow rate of the main board.
Speed Monitoring:
fan Wire Length: 10cm (counting from fan Outline border)
the fan is a PWM intelligent temperature control fan. On the premise that the mainboard supports the PWM function, the fan is very quiet. Generally, the rotating speed is controlled at 1500 revolutions, and there is almost no sound. Buyers please make sure whether their mainboards support the PWM function. Generally, if the socket of CPU fan position on the mainboard is 4-pin, PWM is supported. Some low-end mainboards may be fake 4-pin, those motherboards do not support PWM, and some of the PWM functions of motherboards need to be turned on by entering the BIOS of the motherboards, otherwise the fan will run at full speed. When the fan is running at full speed, it is close to 5000 revolutions, and the noise is not bad. Users who want to mute should make sure that the fan is used under PWM control.
