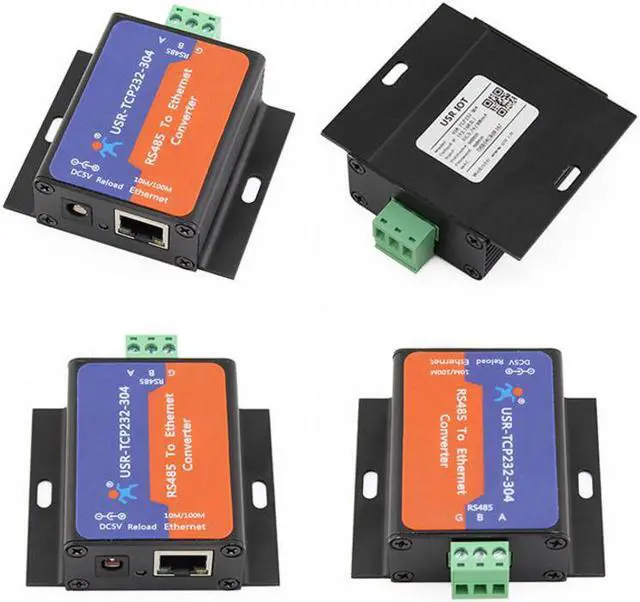

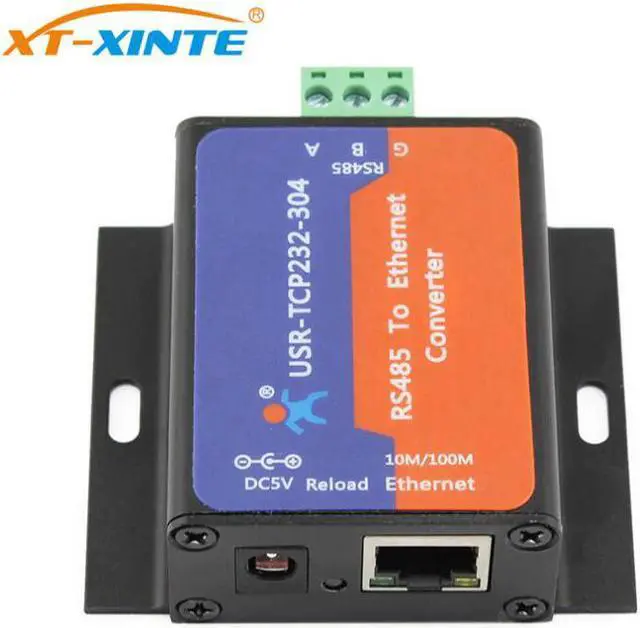

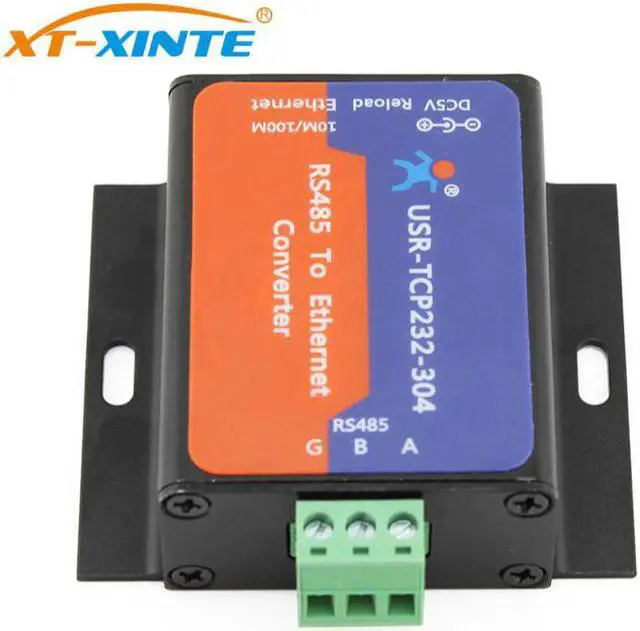

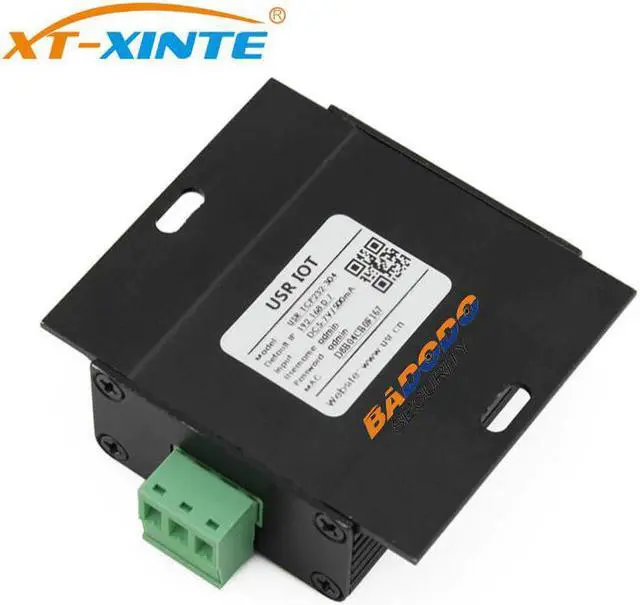

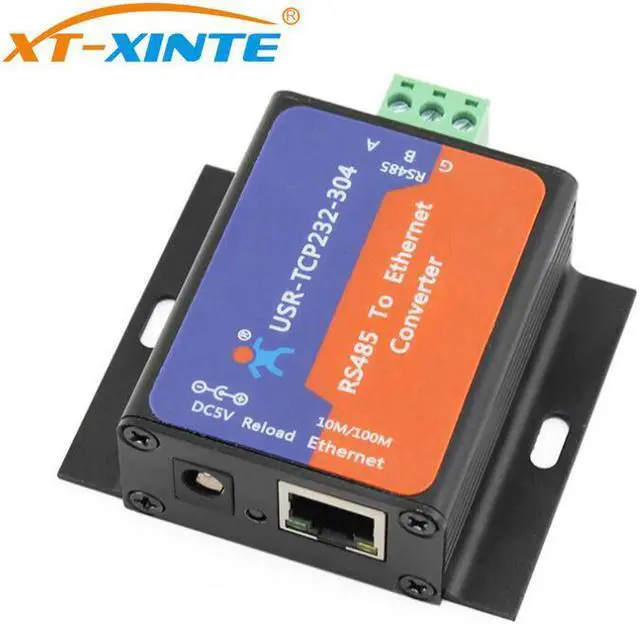

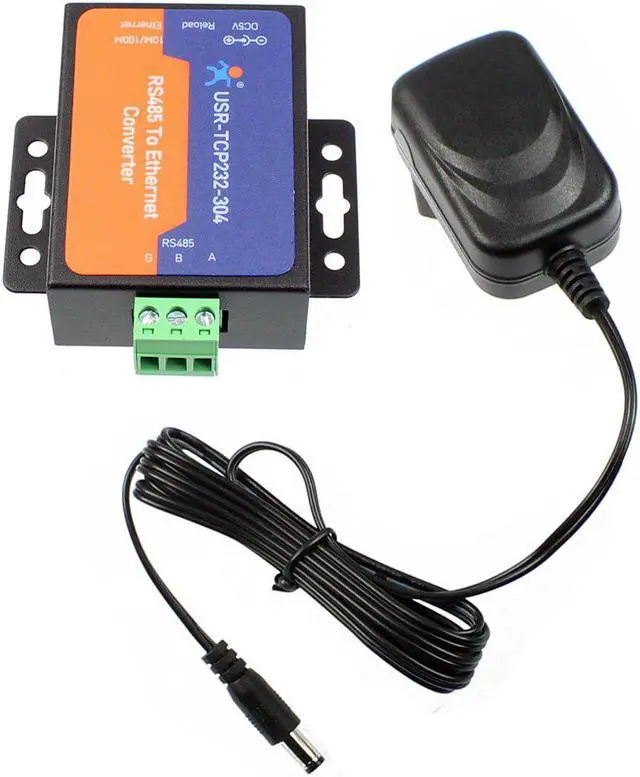

USR-TCP232-304 RS485 Serial to Ethernet Converter RS 485 to TCP/IP Ethernet Server Converter Module Support DHCP/DNS

Origin:CN(Origin)

RM1641845738262220
USR-TCP232-304 RS485 Serial to Ethernet Converter RS 485 to TCP/IP Ethernet Server Converter Module Support DHCP/DNS
USR-TCP232-304
This is a serial RS485 to Ethernet server, used for data transparent transmission. USR-TCP232-304 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS485 and Ethernet. USR-TCP232-304 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.
Function Features:
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
Support DNS function
Set parameters through webpage
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique MAC address bought from IEEE, user can define MAC address
Restore factory default
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
Support customization
Application Field of RS232 Ethernet Server
Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system,
POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Built-in Webpage of RS485 Ethernet Server
Application of Ethernet Module
