Telescopic External Hard Drive Case M2 SSD Case for NVME Enclosure USB 3.1 to PCIE Hard Disk Case Box for 2242/2260/2280

Origin:CN(Origin)
Supporting Hard Drive Capacity:2TB
Internal Interface:SATA
Size:1.8"
Case Material:Aluminum
Package:No
External Interface:USB

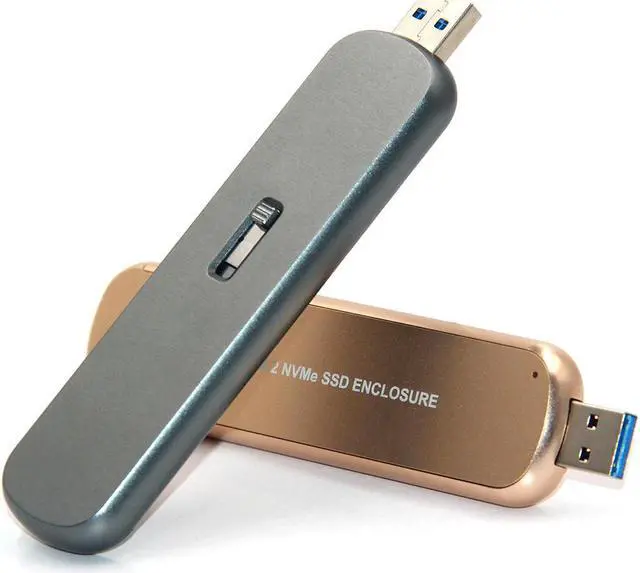

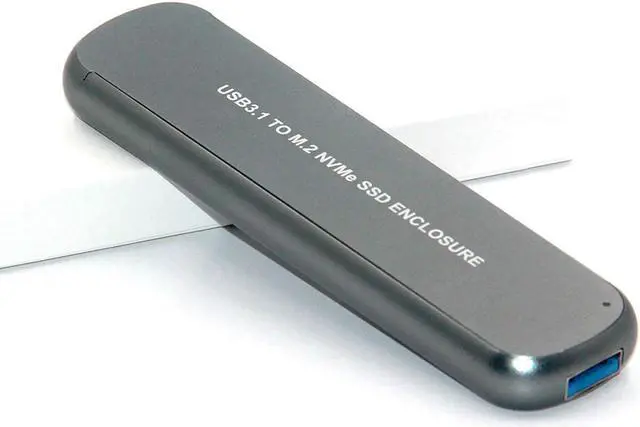

XT-XINTE JM583 Aluminum USB3.1 Type A to PCI-E SSD M.2 NVME SSD Enclosure with Retractable USB Port Speed Up to 10Gbps UASP
Brand: XT-XINTE
Color: gold, silver, gray
specification:

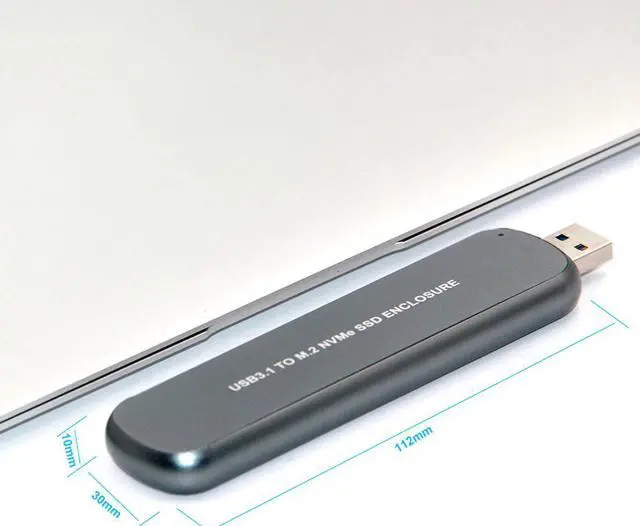

Size: 30 * 112mm
Weight: 60g
Function:
USB interface to read PCI-E SSD M.2 hard disk through JM583 mobile hard disk
Feature:
Supports TRIM to the SSD
Integrates with USB Type-C multiplexer & configuration channel (CC) logic
Complies with PCI Express Base Specification Revision 3.1a
Complies with NVM Express 1.3
Complies with USB3.1 Gen 1 and Gen 2 Specification, USB Mass Storage Class, Bulk-only Transport Specification (Revision 1.0)
Complies with USB Attached SCSI Protocol (UASP) Specification (Revision 4)
Supports USB Super-Speed / High-Speed / Full-Speed Operation
Supports USB2.0 / USB3.1 Gen 1/2 power saving mode
Supports external SPI NVRAM for Vendor VID / PID of USB2.0 / USB3.1 Gen 1/2 device controller
Thirteen GPIOs for customization
Provides hardware controlled PWMs
Provides software utilities for downloading the upgraded firmware code under USB2.0 / USB3.1 Gen1,2
Design for Windows 7, Windows 10 and MAC 10.10.5 or later version
Supports 25MHZ external crystal
Supports 3.3V I / O
Embedded 5V to 1.0V voltage regulator
Embedded 5V to 3.3V linear voltage regulator (LD0)
