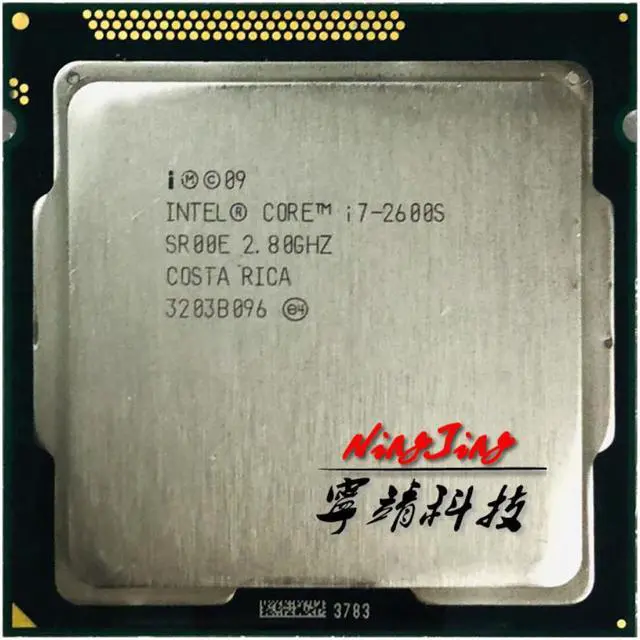

Intel Core i7-2600S i7 2600S i7 2600 S 2.8 GHz Quad-Core Eight-Core 65W CPU Processor LGA 1155

Intel Model:Intel Core i7-2600S
Support Memory Channels:2
PCIe VERSION:PCIe 2.0
Application:Desktop
Number OF Therads:8
Usage Scenario:others
Support Memory Type:DDR3
Support Chipset Models:Intel B75
Processor Type:Intel Core
Chip Process:32 nanometers
Default TDP / TDP:65W
Origin:CN(Origin)
Unlocked:Yes
Socket Type:LGA 1155
Item Condition:Used
Type:Quad-Core
GPU-built:Yes
L3 Cache Capacity:8 MBMB
Number of Cores:Quad-Core
Package:No
L2 Cache Capacity:1 MBMB
Model Number:Intel Core i7-2600S

Intel Core i7-2600S specifications
The specs can be used for short-term
listings on auction and classifieds sites
Architecture / Microarchitecture
Microarchitecture
Sandy Bridge
Processor core
?
Sandy Bridge
Core stepping
?
D2 (Q1HM, SR00E)
Manufacturing process
0.032 micron High-K metal gate process
Die
216mm
2
Data width
64 bit
The number of CPU cores
4
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size
?
4 x 32 KB instruction caches
4 x 32 KB data caches
Level 2 cache size
?
4 x 256 KB
Level 3 cache size
8 MB shared cache
Physical memory
32 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
EM64T / Extended Memory 64 technology / Intel 64
?
NX / XD / Execute disable bit
?
HT / Hyper-Threading technology
?
TBT 2.0 / Turbo Boost technology 2.0
?
VT-x / Virtualization technology
?
VT-d / Virtualization for directed I/O
TXT / Trusted Execution technology
Low power features
Enhanced SpeedStep technology
?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 2000
Microarchitecture: Gen 6
Execution units: 6
Base frequency (MHz): 850
Maximum frequency (MHz): 1350
The number of supported displays: 2
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1066, DDR3-1333
Maximum memory bandwidth (GB/s): 21.3
Other peripherals
Direct Media Interface 2.0
PCI Express 2.0 interface
Electrical / Thermal parameters
Maximum operating temperature
?
69.1°C
Thermal Design Power
?
65 Watt
