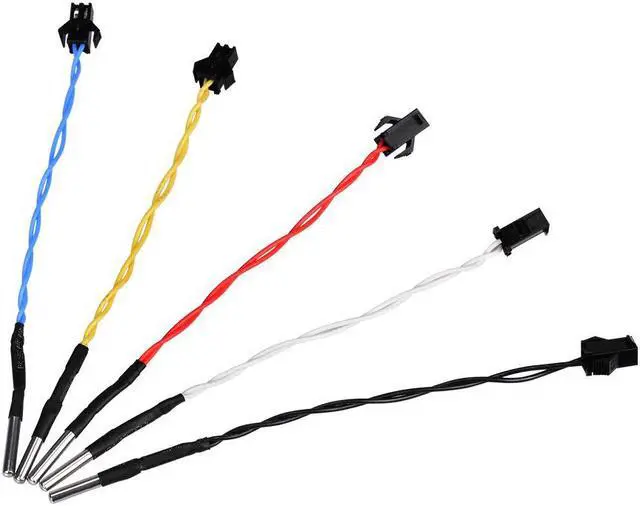

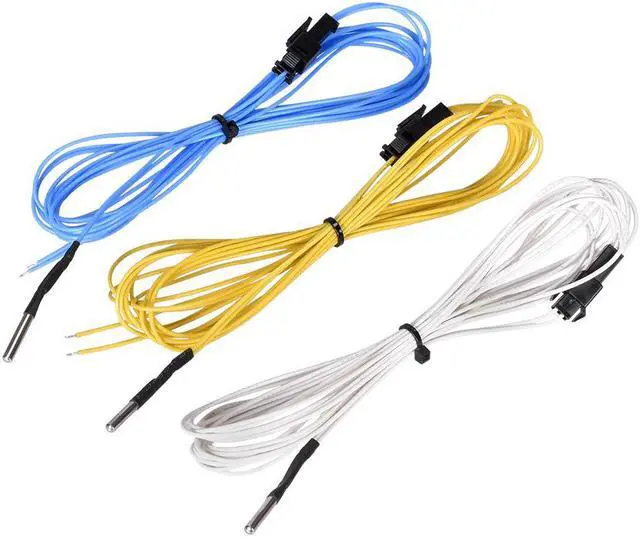

3D Printer Parts HT-NTC100K Ohm Thermistor 1M/2M High Temperature NTC 3950 100K Sensor for Filament V6 Heat Block Hotend

Origin:CN(Origin)
Item Type:Thermistor
Model Number:HT-NTC100K Thermistor
Product name:HT-NTC 3950 100K Thermistor

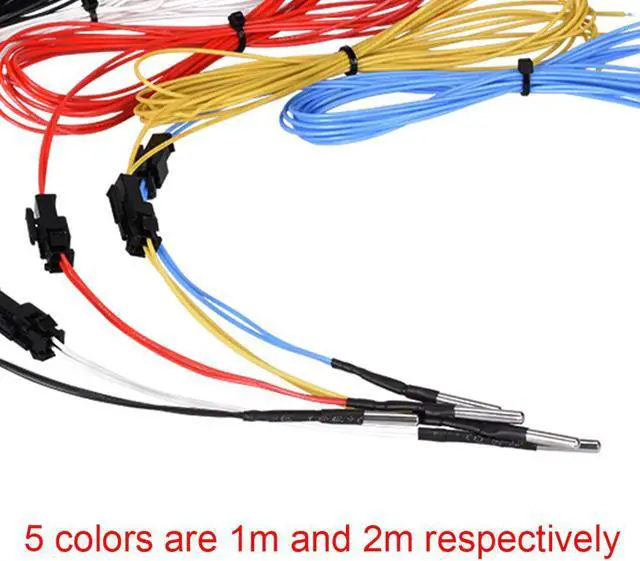

Size:1M/2M
Color:Red/Yellow/Blue/Black/White
Material:304 Stainless Steel
Stock:In stock
Suitable For:V6 Heating Block

Paramenter:
Product Name: HT-NTC100K Thermistor
Length: 1M /2M
Temperature measurement head size: 3 * 15MM
Operating Temperature Range: -50? ~+ 320?
Maximum temperature can be reached:320?
Material : 304 Stainless Steel
Feature:
Thermistor temperature measurement is stable. The temperature measurement of the
upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type
thermocouple. It helps much to solve the issues of strict requirements of K-type
thermocouple wiring, and the line is long which is susceptible to get external interference
and result in temperature fluctuation that can affect the printing quality.
The improvements compared to the other temperature resistance in the market.
1. Upgrade from the ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple.
2. The temperature measurement range is increased from -50 ?~ +250? to -50 ? ~ +320 ?. It helps a lot to print high-temperature filament, can replace the K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.
3. The version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement.
1PC* HT-NTC100K Thermistor 1M/2M (For your choose)
