IDE to SATA converter SATA to IDE adapter Bidirectional conversion card Computer hard disk motherboard conversion card

Origin:CN(Origin)
Type:Cable Adapter
Certification:NONE
Package:No
Products Status:STOCK
Model Number:0370

IDE to SATA converter SATA to IDE adapter Bidirectional conversion card Computer hard disk motherboard conversion card
Description:
Compliant with Serial ATA specification, compliant With Serial ATA 1.0 specification, compatible With Ultra ATA 100/133
Data transfer rate up to 1.5 Gbps (150 MB/s), support IDE drive size larger than 240GB
Support for Windows 98/98SE/ ME/ 2000/ XP/Win7/Win10, for Mac OS 8.6 and above
Support the Serial ATA transfer rate of 1.5Gb/s (150MB/s)
No driver is needed, the mini board size, no space wasted
Specifications:

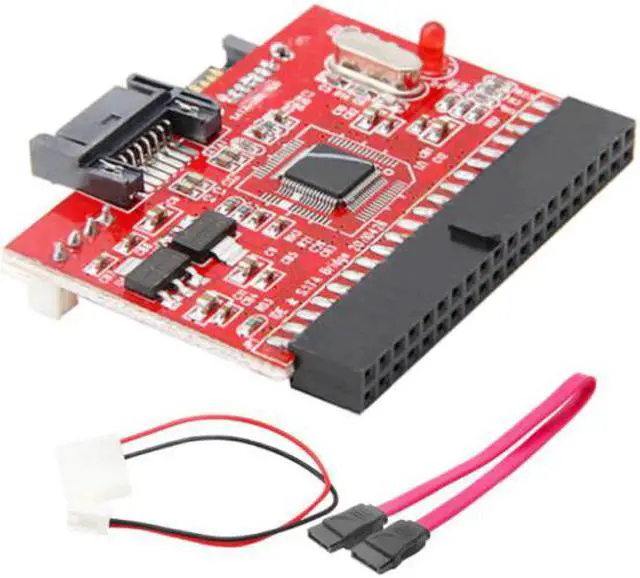

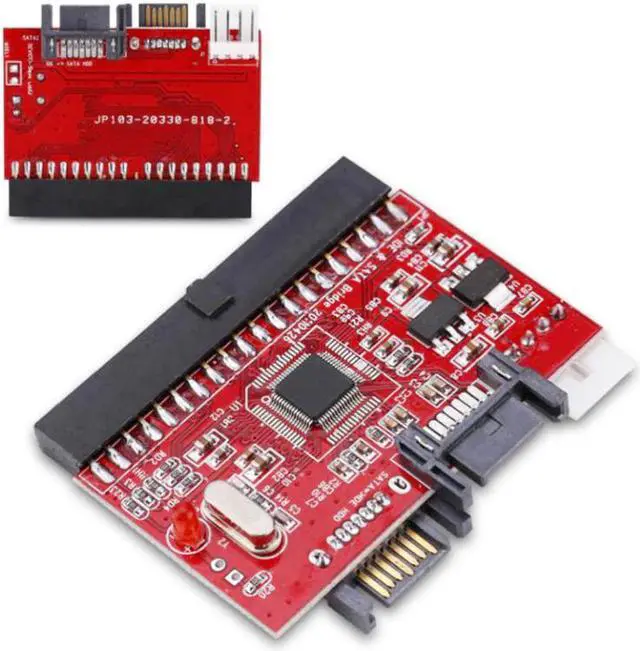

Item Name: IDE to SATA/SATA to IDE Adapter
Color: Red
Material: PCB+Metal
Size: 5.4x4.5x1cm
Interface: 40pin IDE /SATA/4Pin
Connection Method:
The conversion card's IDE jack, plugged into the motherboard IDE interface;

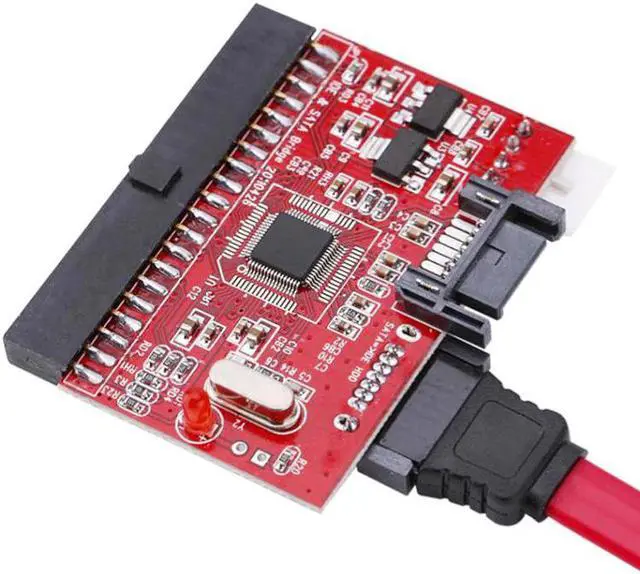

SATA data cable (delivery) one end plugged into the conversion card, the other end connected to the SATA hard disk;
The conversion card is connected to the power cable (delivery), the other end of the power cable is connected to the chassis power cable;
SATA hard drive power conversion line, then the chassis power supply, so that the connection is good, you can start the computer power.
If the installation is still not recognized SATA hard disk, you should check in detail the above installation steps and connections, and note the following:
This conversion card is inserted in the motherboard IDE interface, the motherboard IDE is not the gap with the card IDE prominent position on the.
Due to the conversion card's IDE interface is slightly smaller than the hard-line interface, so pay attention to whether the motherboard IDE's target should be plugged in, may be staggered in a row.
In addition to the SATA hard disk must be connected to the data cable and the power cord, the conversion card must also be connected to the power (you can use this card delivery power adapter cable or direct use of the floppy drive power cord).
Check the BIOS is set to automatically identify the hard disk device IDE interface, if not set to enter the BIOS settings.
Conversion Card Support Large Hard Drive:
If you find this SATA hard disk can not be started, please refer to the other online introduction IDE hard disk boot BIOS setup, partitioning, activation partitioning, formatting, transfer boot system and other operations, has nothing to do with the function of this card.
