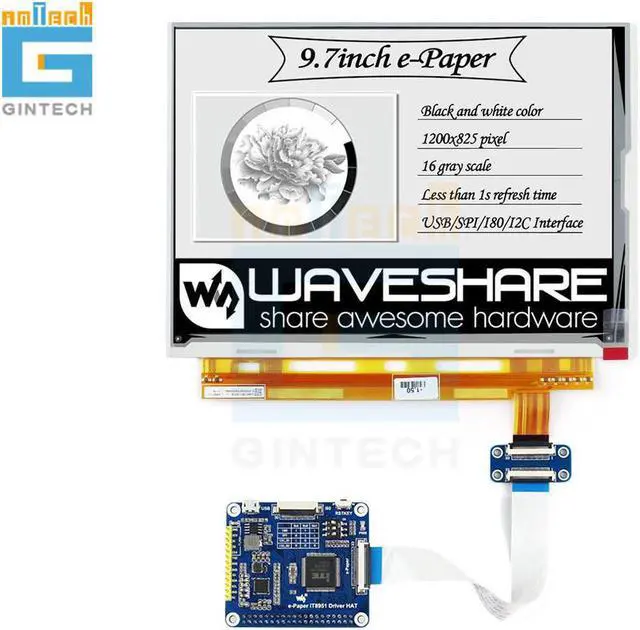

1200x825, 9.7inch E-Ink display HAT for Raspberry Pi, IT8951 controller, USB/SPI/I80/I2C interface 9.7inch e-Paper HAT

Origin:CN(Origin)
Model Number:9.7inch e-Paper HAT

1200x825, 9.7inch E-Ink display HAT for Raspberry Pi, IT8951 controller, USB/SPI/I80/I2C interface 9.7inch e-Paper HAT
Option list:
Please notice:
Color:  B=Black, W=White, R=Red, Y=Yellow
PACKAGE CONTENT
9.7inch e-Paper x1

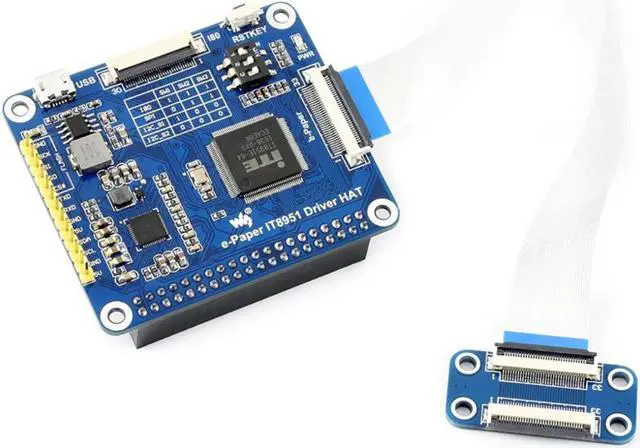

e-Paper IT8951 Driver HAT x1
9.7inch e-Paper Adapter x1
33PIN FFC (same side contact) x1
USB type A plug to micro B plug cable x1
PH2.0 20cm 8Pin x1
RPi screws pack (2pcs) x1
1
2+3+4
5
6
7
DESCRIPTION
1200x825, 9.7inch E-Ink display HAT for Raspberry Pi, IT8951 controller, USB/SPI/I80/I2C interface
Overview
This is an E-Ink display HAT for Raspberry Pi, 9.7inch, 1200x825 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
Operating voltage: 5V
Interface: USB/SPI/I80/I2C
Outline dimension: 218.8mm × 156.425mm × 1.15mm
Display size: 202.8mm × 139.425mm
Dot pitch: 0.169 × 0.169
Resolution: 1200 × 825
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time:
Total refresh power: 0.6W(typ.)
Total standby power: 0.3W(typ.)
Viewing angle: >170°

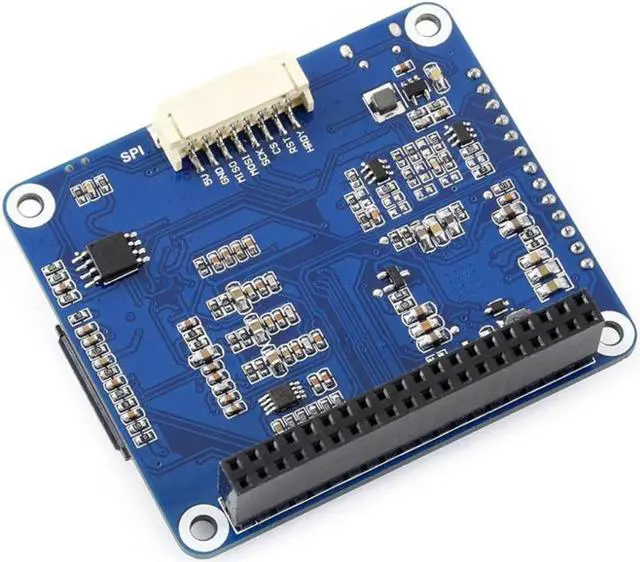

SPI Pinouts
e-Paper IT8951 Driver HAT Dimensions
