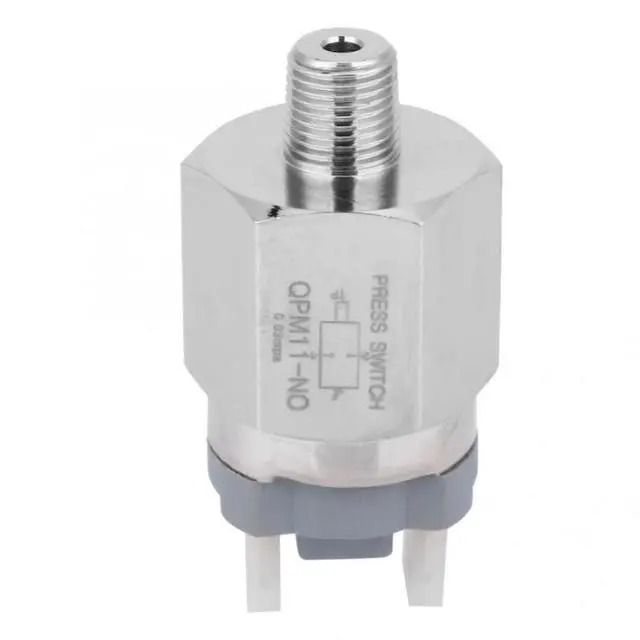

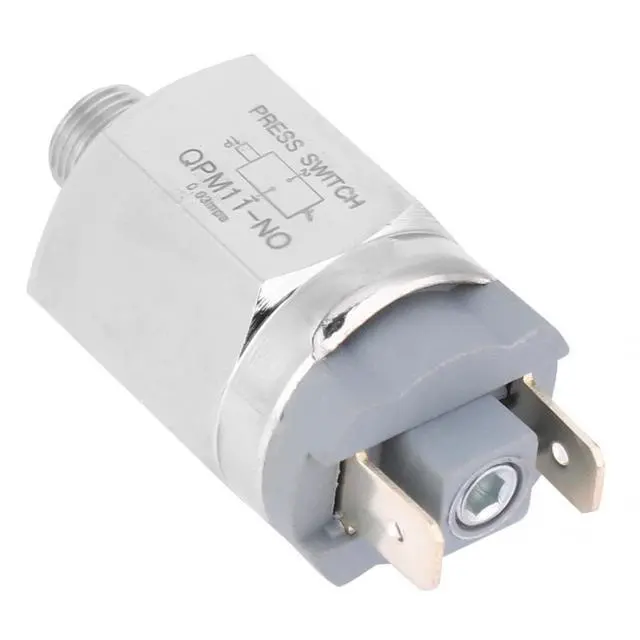

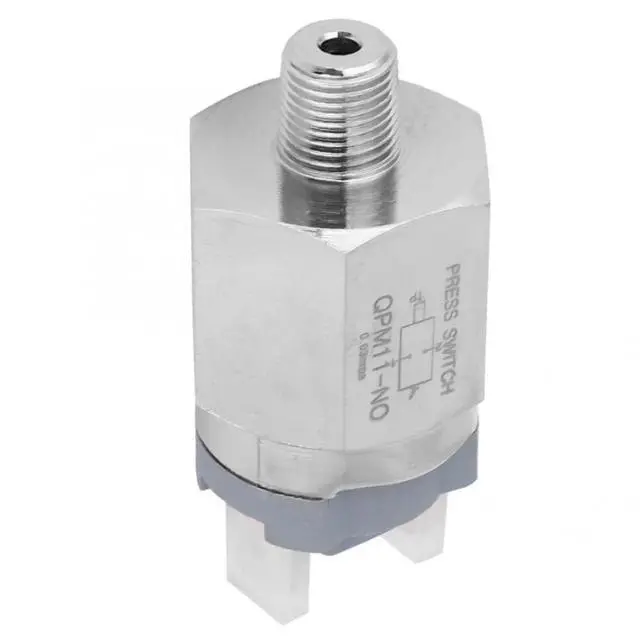

Normally Open Pressure Switch G1/8in QPM11-NO 0.02~0.1Mpa Switch AC220V 48VAC/DC
- Normally Open Pressure Switch G1/8in QPM11-NO 0.02~0.1Mpa Switch AC220V 48VAC/DC
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:CN(Origin)
Certification:CCC
Current:Other
Features:NO Switch
Material:Plastic
Warranty:12 months
Model Number:Pressure Control Switch
Switch Type:Pressure Switch
Type 1:Normally Open Switch
Normally Open Pressure Switch G1/8in QPM11-NO 0.02~0.1Mpa Switch AC220V 48VAC/DC
Features:
The switch is working in pressure between 0.02~0.1MPa.
Wide temperature fitness,can work normally between -5~60.
The switch has a high insulation voltage of 1500V,more safe.
The maximum pulse quantity is 200 circle/min with a maximum service of 1,000,000 circles.
High protection level of IP54,more durable and reliable.
Specification:
Item Type:Pressure Switch
Applicable Medium: Air
Operating Pressure Range: 0.02~0.1Mpa
Environment And Medium Temperature: -5~60°C
Working Form: Adjustable Pressure
Caliber: G1/8in
Working Voltage: AC220V, 48V/AC, DC
Maximum Operating Current: 500mA
Maximum Power: 100VA, 24VA
Insulation Voltage: 1500V, 500V
Maximum Number Of Pulses: 200 Circles / min
Service Life: 1,000,000 Circles
Protection Level: IP54
Certification:CCC
Current:Other
Features:NO Switch
Material:Plastic
Warranty:12 months
Model Number:Pressure Control Switch
Switch Type:Pressure Switch
Type 1:Normally Open Switch
Normally Open Pressure Switch G1/8in QPM11-NO 0.02~0.1Mpa Switch AC220V 48VAC/DC
Features:
The switch is working in pressure between 0.02~0.1MPa.
Wide temperature fitness,can work normally between -5~60.
The switch has a high insulation voltage of 1500V,more safe.
The maximum pulse quantity is 200 circle/min with a maximum service of 1,000,000 circles.
High protection level of IP54,more durable and reliable.
Specification:
Item Type:Pressure Switch
Applicable Medium: Air
Operating Pressure Range: 0.02~0.1Mpa
Environment And Medium Temperature: -5~60°C
Working Form: Adjustable Pressure
Caliber: G1/8in
Working Voltage: AC220V, 48V/AC, DC
Maximum Operating Current: 500mA
Maximum Power: 100VA, 24VA
Insulation Voltage: 1500V, 500V
Maximum Number Of Pulses: 200 Circles / min
Service Life: 1,000,000 Circles
Protection Level: IP54
