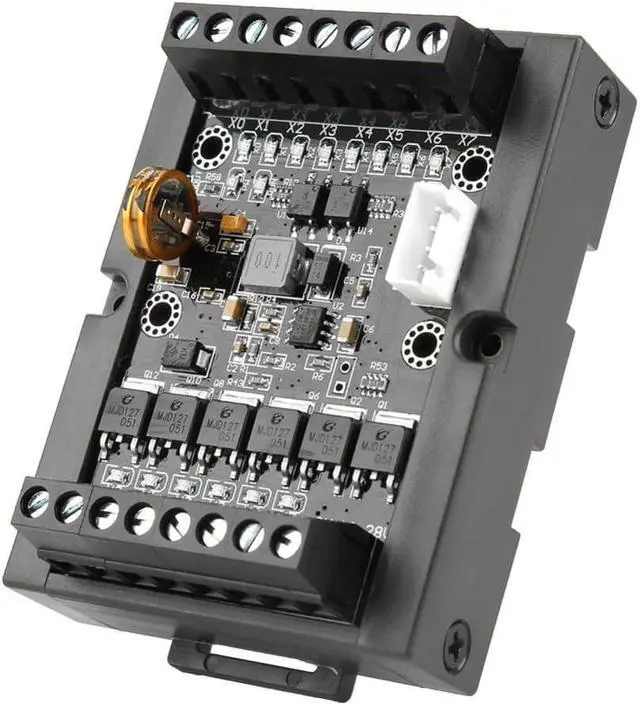

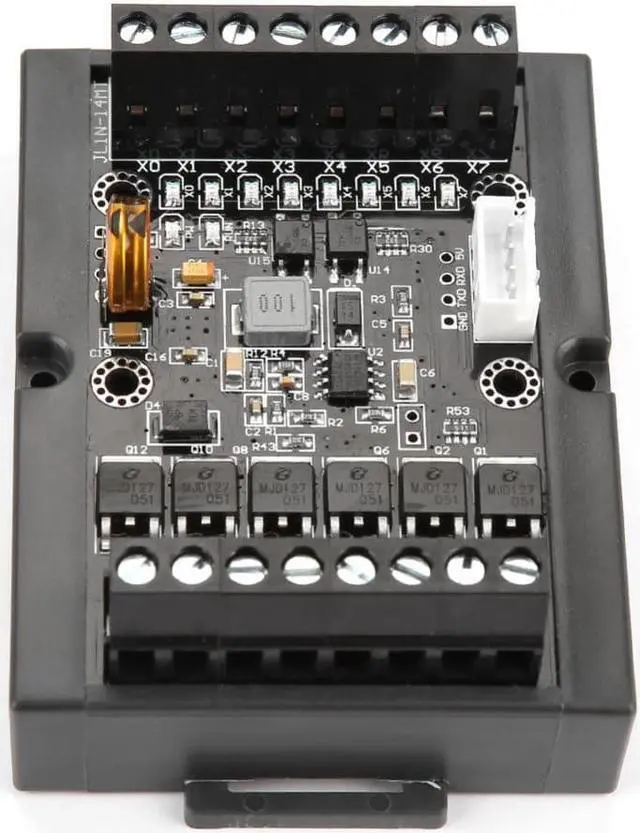

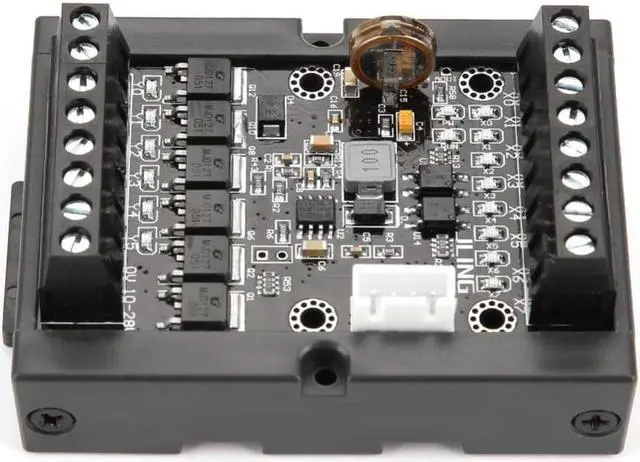

PLC programmable logic controller regulator FX1N-14MT industrial control board 10-28VDC relay module Relay Module

Motor Type:DC Motor
Certification:NONE
Origin:CN(Origin)
Model Number:Relay Module
Item:plc programmable logic controller
Feature:motor speed controller
Feature 1:speed controller for ac motor
Feature 2:plc industrial
Feature 3:PLC

PLC programmable logic controller regulator FX1N-14MT industrial control board 10-28VDC relay module Relay Module
Features:
1. 100% and .
2. Small body and stable performance.
3. This module is programmable and can realize thousands of functions.
4. Work performance is stable and reliable.
5. Built-in timing circuit can effectively ensure long-term operation of the module.
Specification:
Condition: 100%
Model:
FX1N-14MT
Power Supply: 10-28VDC
Maximum memory capacity: 8000 steps
Weight: Approx. 71g / 2.5oz
Function:
1. Turn on the power, the relay 1 is closed after N seconds of closing; then the relay 2 is closed after N seconds of closing.
2. Turn on the power, the relay 1 is turned off after N seconds of closing; then the relay 2 is turned off after N seconds, and then cycles.
3. When the power is turned on, the relays 1 and 2 are not activated. When there is a signal or a button is triggered, the relay 1 is turned off after N seconds is closed; then the relay 2 is turned off after N seconds and then turned off until the next trigger, repeating the same action.
By programming the signals 1, 2, any control of the relays 1 and 2 can be achieved.
4. When signal 1 has a signal, relay 1 is closed and relay 2 is turned off; 5. When signal 2 has a signal, relay 1 is turned off and relay 2 is closed.
6. Only the NPN sensor signal can be connected, and the sensor signal can be programmed to realize any control of the relay.
7. When signal 1 has a trigger, control relay 1; when signal 2 has a trigger, control relay 2.
8. Turn on the power, control the motor to rotate for N seconds, then reverse N seconds, and cycle.
9. When the signal 1 has a signal, the motor is controlled to rotate forward; when the signal 2 has a signal, the motor is reversed.
Package List:
1 * Relay Module
