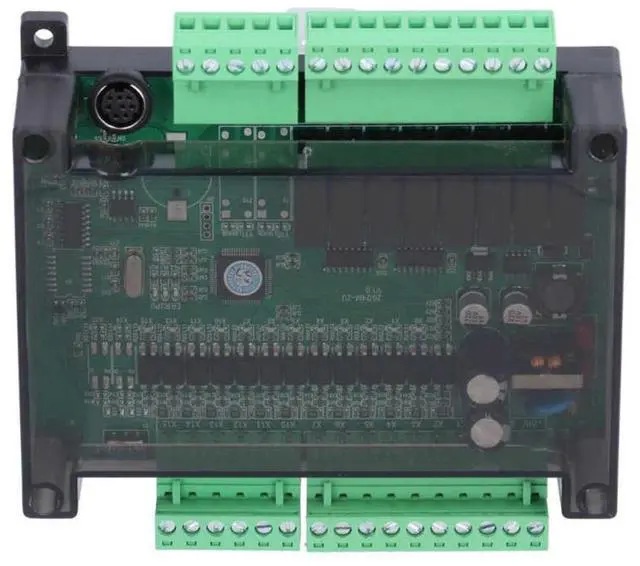

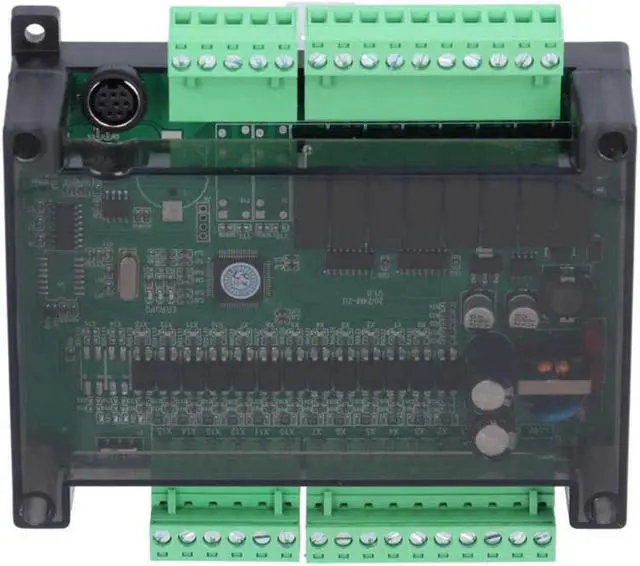

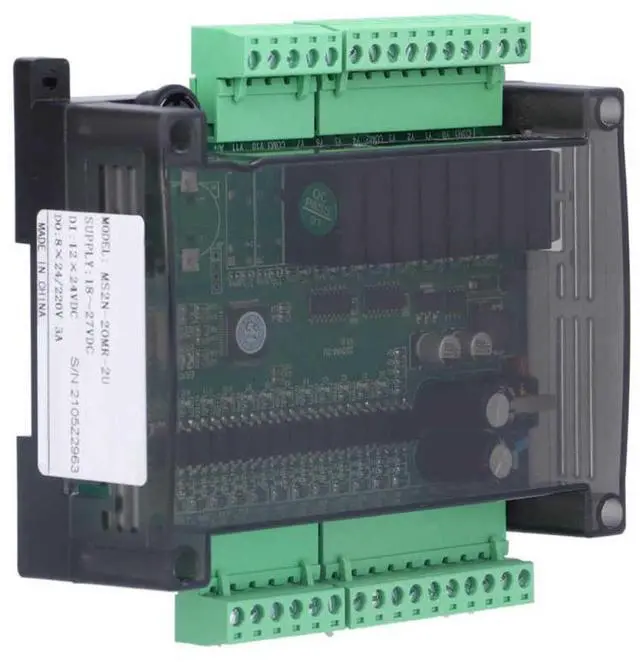

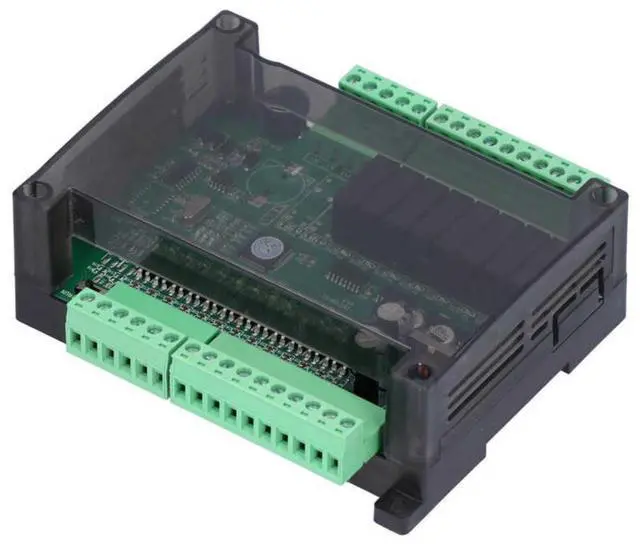

PLC Industrial Control Board with Shell Programmable FX2N Controller MS2N-20MR-2U Programmable Logic Controller Module

Motor Type:Other
Certification:NONE
Origin:CN(Origin)
Model Number:PLC Industrial Control Board

PLC Industrial Control Board with Shell Programmable FX2N Controller MS2N20MR2U
Feature:
1. Used in the field of electronic control, compatible for Mitsubishi GX Work2 GX Developer.
2. Support super encryption function, easy and convenient to use and operate.
3. Use a highaccuracy clock chip with annual error within 10 seconds, can be maintained for six months after power off.
4. Painted with threeproof paint, have excellent insulation, moistureproof, antileakage, shockproof and dustproof performance
5. Efficient and accurate, undergo 72hour aging test before leaving the factory.
Specification:
Item Type: PLC Industrial Control Board
Model: MS2N-20MR-2U
Input: 12 road NPN type including 2 road 60K high speed input
Output: 8 channels Omron relay type 3A load can be connected to 220V
Core: FX2N 8000 steps compatible with 1N positioning instructions
Pulse Input: 2-way 60Khz X0-X1
Pulse Output: None
Power Supply: DC 18-27V
Analog Input: 4AD 0-10V/0-20MA, 12-bit accuracy, 0-4095 can be changed to NTC 200 degrees temperature measurement
Analog Output: 2DA 0-10V/0-20MA,12-bit accuracy, 0-4095
Analog Usage: AD0-AD3 corresponds to D8030-D8033 DA0-DA1 corresponds to D8096-D8097
Direct operation of registers without commands, special registers can not be directly involved in operations.
Communication Port: RS232 MD8 round port DVP, RS485 terminal interface A+ B-
Software: GX Work2 GX Developer
Clock Type: High-accuracy clock within 10 seconds per year
Clock Description: The plc with clock is with year, month, day, hour, minute and second, nothing to do with the counter.
Chip Model: STM32F103RCT6
PWM Description: PWM supports 1Khz by default
Package List:
1 x
PLC Industrial Control Board
How to use:
About the programming port protocol:
The programming port supports FX protocol by default
HMI parameters: baud rate: 9600 data bits 7 stop bits 1 even parity
PLC does not need any settings
2N support: 2000/4000/8000 steps
About poweroff retention:
Flash memory without power loss for 8 years
Keep range: D200D7999
It is recommended to keep the data more stable after D500
About encryption:
Support super password function (singlechip encryption level)
Login keywords: 12345678 activate the super password function
After activating the super password, only the  program can be overwritten, and the  program cannot be read
About the usage of 1 N positioning instruction:
Our 2N series products all support 1N instruction
Usage: Convert the program into 1N and write positioning instructions
Then turn to 2n and continue to write
The  422 communication line cannot be used (see the download line label for 422 or SC09FX if there is one, please change to the download line)
Use Xinje or Delta's 232 communication download line to download the program.
Program download instructions:
 projectFX2N.Choose the corresponding COM portPLC writeClick parameter+programconfirm within 8000 stepsexecuteyesdownload complete.
