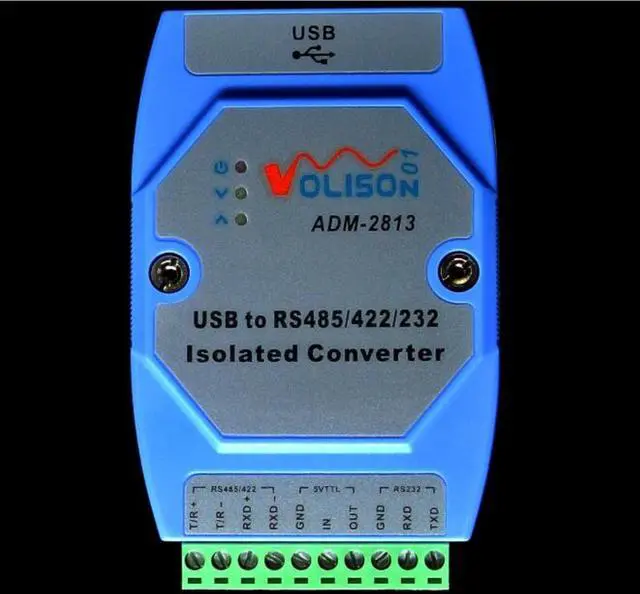

ADM-2813 Industrial grade USB to RS485/422/232/TTL USB to 485232 photoelectric isolation FT232 rail

Certification:CE
Smart home platform:NONE
Origin:CN(Origin)

Industrial isolation type USB to 232/485/422/TTL
AMD-2813
Product Brief
ADM-2813 is an industrial grade USB to RS-485/422/232/TTL photoelectric isolated converter without external power supply and compatible with USB1.0 USB2.0 standard. It can convert the USB signal of computer or industrial computer intoRS-485/422/232/TTLSignal, zero time delay automatic receive and transmit, automatic control of data flow direction, plug and play. The imported FT232 chip is used as the USB signal conversion chip,RS-485/422/232 interface with lightning protection, surge protection, anti-static protection,Stable and reliable operation.
performance parameter
1 compatible with USB1.0, US2.0 and RS-485/422 A/EIA standards
2, input interface: 1 road USB-B, VCC, D+, D-, GND
3 output interface: 1 way RS-485/422/232/5VTTL interface (4 kinds of data)
RS-485:, T/R+, T/R-
RS-422:, T/R+, T/R-, RXD+, RXD-
RS-232:, TXD, RXD, GND
5VTTL:, IN, OUT, GND
4, communication rate:RS-232:300BPS-115.2KBPS, RS-485/422:0~230.4KBPS
5, load capacity: RS-485 can connect 32 devices
6, communication distance: RS-485/422:1000 meters (1200BPS), RS-232:10 meters, USB:5 meters
7, LED instructions: power supply, data direction indicator
8, work mode: asynchronous half duplex, 2 line (RS-485), full duplex 4 wire (RS-422) or full duplex RS-232/TTL
9 photoelectric isolation: isolation voltage 2KVrms /500VDC insulation,
quarantine
The DC/DC module, the RS-485/422, provides 600W lightning protection surges
RS-232
provide
15KV ESD protection
10, system support: Win98/ME/2000/Server2003/XP
Win Vista/Win7/Win8 32bit/64bit
More than 2.4 versions of Windows, CE, Mac, OS, and Linux
11 installation method: 35mm DIN rail installation
12, structure size: 103x72x27 (mm),
Length x, width x, height (mm)
13, use environment: -20 Celsius to 75 degrees Celsius, relative humidity is 5% to 95%
USB into RS485
USB Into RS422
USB Into RS232
USB into 5VTTL
