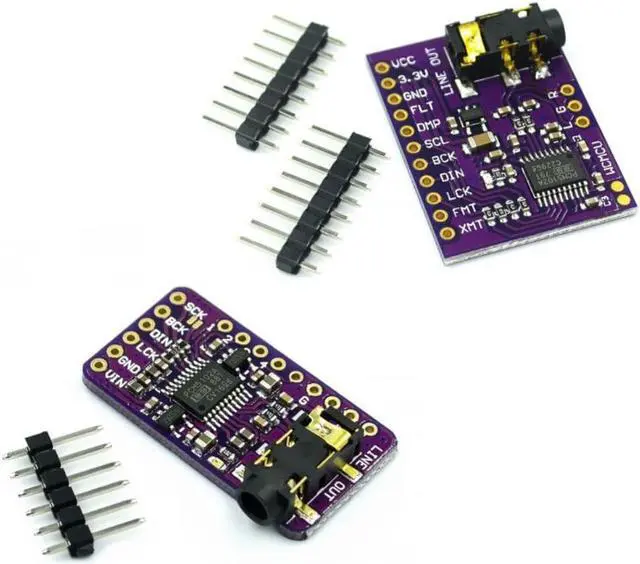

PCM5102 PCM5102A DAC Sound Card Board pHAT 3.5mm Stereo Jack 24 Bits Digital Audio Module for Raspberry Pi Beyond

Origin:CN(Origin)
Condition:
Type:Voltage Regulator
Model Number:MW
Application:Computer
Supply Voltage:1
Dissipation Power:1
is_customized:Yes

Product Features
The PCM5102 integrates a stereo analog-to-digital converter (DAC) for excellent dynamic performance and improved tolerance to clock jitter. With DirectPathTM charge pump technology, the PCM510xA device provides a 2.1 VRMS central ground output (designer does not need to be at the output) Connected to the DC-blocking capacitor) and an external mute circuit that is traditionally associated with a single-supply line driver. Integrated soft muting can also be hardware muted to achieve a 120dB mute signal-to-noise ratio (SNR). Each pin of the integrated line driver supports loads as low as 1k, surpassing all other charge pump-based line drivers in performance. A high-performance integrated audio phase-locked loop (PLL) with BCK reference integrated on the device internally generates SCK, eliminating the need for a system clock (commonly referred to as the master clock) to achieve a 3-wire I2S connection and reduce System electromagnetic interference (EMI). Smart Clock Error and PowerSense Undervoltage Protection feature a two-layer system that eliminates clicks and pops. Compared to many traditional switched capacitor DAC architectures, out-of-band noise can be controlled to a low level of 20dB, reducing EMI and aliasing in downstream amplifiers/ADCs. When an error occurs in the clock and power system, the device automatically attenuates the data and starts the analog mute circuit.
Product Parameters
Module supply voltage: DC3.3V
Signal to noise ratio SNR: 112dB
Dynamic range: 112dB
Full-scale single-ended output: 2.1VRMS
Sampling frequency: 8KHz ~ 384KHz
Main clock frequency: 50MHz
Number of audio data: 16, 24, 32
Working environment temperature: -40 ° C ~ 85 ° C
Audio data format: IIS, left aligned
Total harmonic distortion (THD+N at -1dBFS): -93dB
Module size: 31.8mm*23.7mm*6.35mm, with a 3.5mm headphone holder
