0.2-4mm Square MM Adjustable Automatic Cable Wire Stripper With Cutter Duckbill Bend Nose Bolt Clippers Wire Stripping cut Tool

Certification:CE
Origin:CN(Origin)
Package:Yes
Type:Wire Stripping Strippe

Product Description

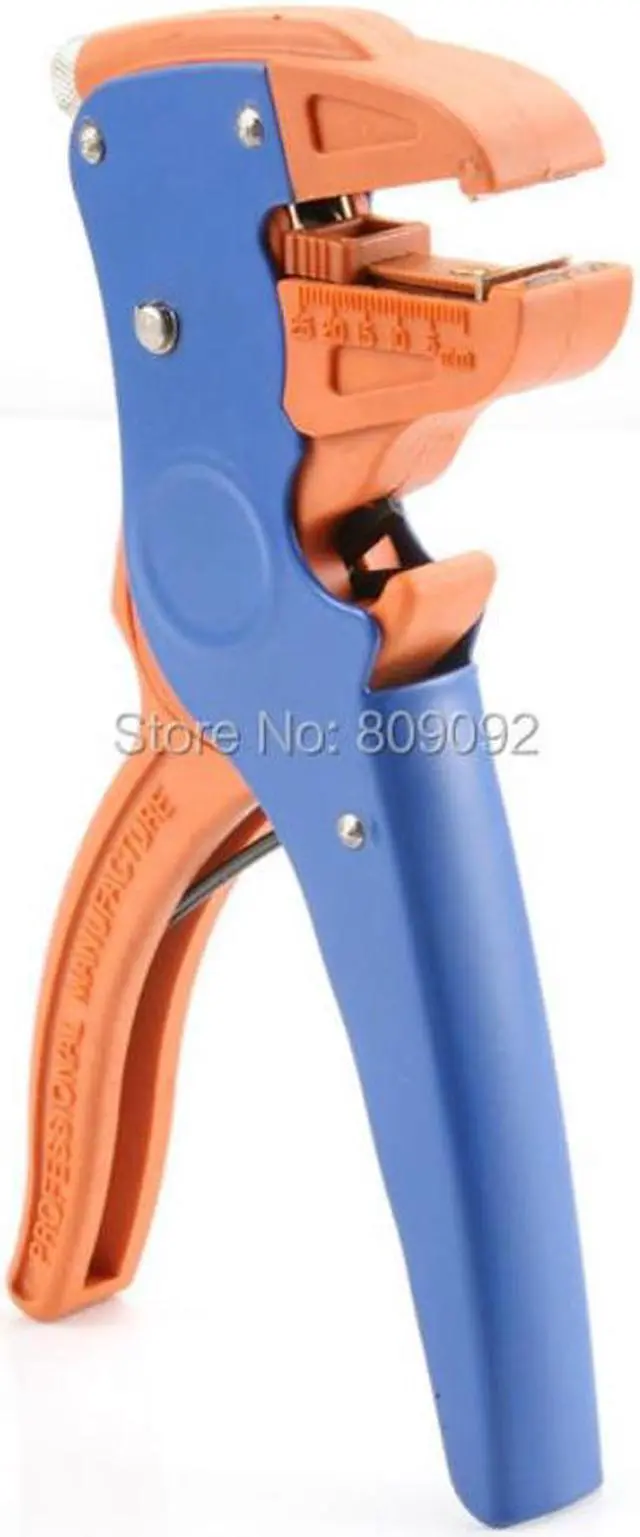

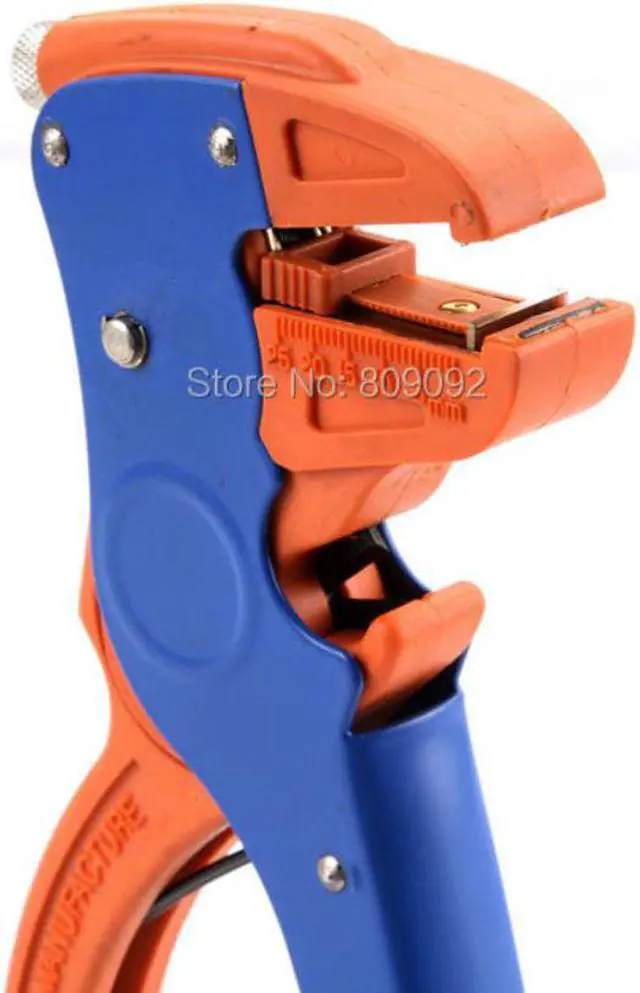

0.2-4mm Duckbilled Wire Cutter Stripper Stripping Tool
Feature:
1. 2 in 1 wire stripper & cutter.
2. Applicable wire stripper range 0.2mm-6mm.
3. Self-adjusting mechanism according to wire size provide excellent wire stripping W/O damaging the conductor.
4. Adjustable stop for consistency in wire strip lengths. Replaceable blade system.
5. Strip 8mm widths flat cable also applicable.
6. Simple adjustmentdial for blade pressure according to the thickness of insulation.
7. Light, handy and excellent durability.
Instructions:
1. Place cable between cutter blades and close handles fully.
2. Clamp prepared Cable between front blades,aganist the Cable-stop for the length to be stripped, using as reference millimeter sacbles laterally positioned. (Adjustable 2mm to 30mm)
3. Turn the Dial in clockwise for thicker wire insulatio and in counterclockwise for thinner wire insulation. Adjust the best optimum position.
4. Press on handles, cable is locked by external jaws while the insulation is lightly cut without damaging the conductor. The complete closing of the handled operate a sliding action of the blades that remove the insulation.
Package Content:
1 X Duckbilled Wire Cutter Stripper Stripping Tool
