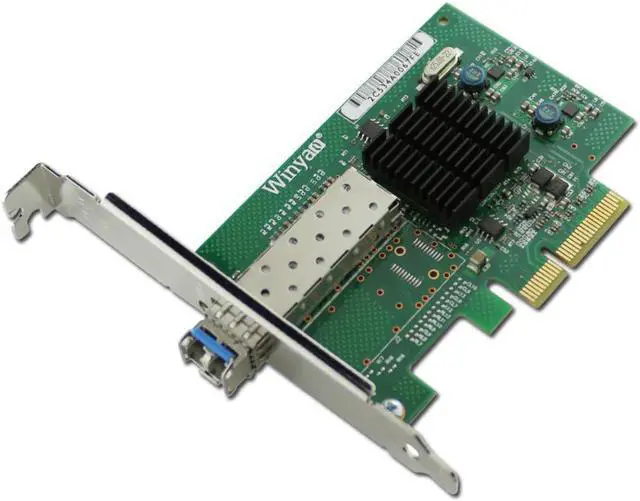

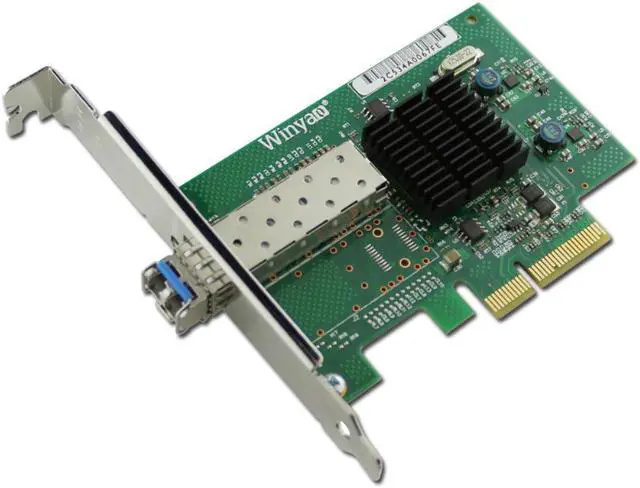

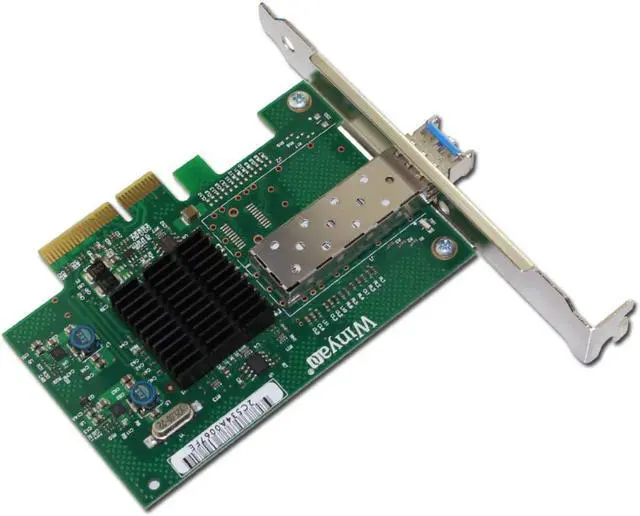

PCIe X4 Gigabit Fiber Card Single Mode 1310nm 10km LC Optical Transceiver Module

Transmission Rate:1000Mbps
Type:Wired
Wireless Protocol:802.11n
Certification:RoHS
Transmission Speed:600 Mbps
Package:Yes
Model Number:WY576SF-LX
Interface Type:PCI Express
Kind:External
Applicable Network Type:Gigabit Ethernet
Application:Server
Lan Transmission Rate:1000M Ethernet
Length:other
Wi-Fi Supported Frequency:other
Adapter Socket:SFP LC*1
Frequency Range:Double frequency(2.4GHz, 5GHz)
Products Status:Stock

PCIe X4 Gigabit Fiber Adapter NIC Card Single Mode 1310nm 10km LC Optical Module
About Description:
Ports: SFP LC * 1
Bus Type: PCI-E X4
Chipset: for JL82576EB
Transmission Rate: 1000Mbps
Network Type: Gigabit Fiber Ethernet
Transmission Distance: 10km
Module Optical Transceiver : 1 x Single-mode 1310nm
Boot Rom: Support BOOT ROM
LEDs indicators: 1 x led indicators for link/Activity Mode status
Management Features: IPMI pass-through via SMBus or NC-SI, WoL, PXE remote boot, ISCSI boot, VLAN filtering, ESXI
Performance Features:
16 Transmit and Receive queues per port
Up to 16 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
Support for 8 pools of virtual machine Device Queues (VMDq) per port
Support Direct Cache Access (DCA)
Support I/O AT 2.0
TSO interleaving for reduced latency
Minimized device I/O interrupts using MSI and MSI-X
Offload of TCP / IP / UDP checksum calculation and TCP segmentation
SCTP receive and transmit checksum offload
Packet interrupt coalescing timers (packet timers) and absolute- delay interrupt timers for both transmit and receive operation
SFP Gigabit Ethernet:
Gigabit Ethernet Adapters with SFP cage support
1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
1000Base-T (1000Mbit/s) Copper Gigabit Ethernet with 1000Base-T SFP transceiver
Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
1 Port Link synchronization
Optional SGMII mode (future support)
Common Key features:
PCI-Express Base Specification Revision 1.1 (2.5Gbps) to the upstream on board switch
High performance, reliability, and low power use in 82576 Dual integrated MAC + PHY and SERDES chip Controllers
Ultra deep, packet buffer per channel lowers CPU utilization
Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
Server class reliability, availability and performance features:
Link Aggregation and Load Balancing
Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
Switch and NIC Independent
Failover
Priority queuing - 802.1p layer 2 priority encoding
Virtual LANs -802.1q VLAN tagging
Jumbo Frame (9.5KB)
802.x flow control
PCI-SIG SR IOV (8 VF)
Multicast/ broadcast Packet replication
Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
Supports Vital Product Data (VPD)
Integrated LinkSec security engines
Supports IEEE 1588
Network standards: IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
Support system:
Microsoft Windows* (32 & 64 bit), SCO UnixWare* 7.x, Open Unix* 8.0, Novell ODI*, Novell Netware*,
SUSE Linux Enterprise Server* 9.0, Red Hat Enterprise Linux* 4.0, Linux*, BSD*, Sun Solaris*,
Microsoft DOS*, VMWare ESX*
You'll receive:
1 x Gigabit Fiber Ethernet Adapter
1 x Single-mode 1310nm Optical Transceiver Module
1 x Low Bracket
1 x Driver CD
Please check pictures for more details.
