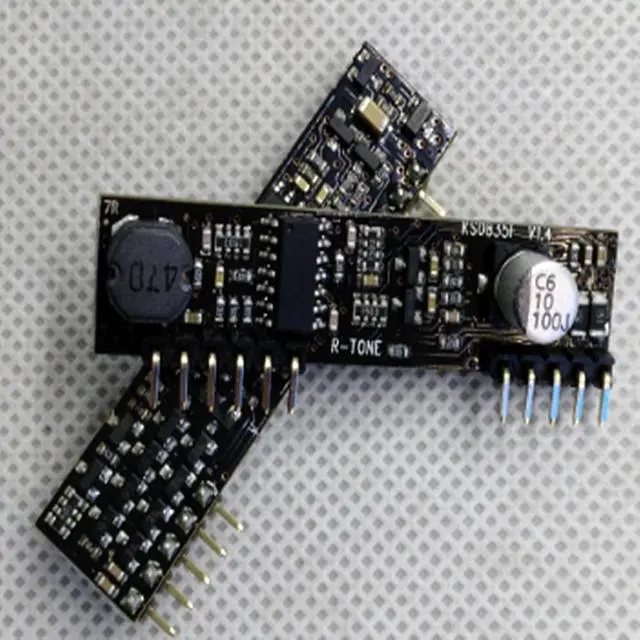

KS0835F Single Power Integrated Ringing User Module Single Power Supply Wide Range 3V-5.5V
- KS0835F Single Power Integrated Ringing User Module Single Power Supply Wide Range 3V-5.5V
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number:KS0835F
Features
·Single supply voltage ring slic: +3.3V to +5.0V
·Integral high efficiency DC/DC converter.
·Highly integrated with ringing generator.
·Tip/Ring polarity reversal.
·2 / 4 wire conversion
·Constant current feed
·High performance with low price
·Excellent sound quality
·On-Hook Transmission for caller line ID.
·Designed for GSM network
·Easy to use, with a minimum number of external components.
Applications
·Fixed Cellular Terminals (FCT) applications.
·POS MODEM applications
·Internet Telephony (VoIP) applications.
·Fixed Wireless Terminals (FWT) applications.
·DVB Terminals applications.
·Wireless local loop (WLL) applications.
·GSM gateway
Index
·unbalanced to ground 60dB(300Hz-3400Hz)
·Two- Wire Impedance 600R
·Four-wire return loss >24Db
·weighted noise -75dB
·Ringing voltage 130VP-P
·Constant current 23-31mA
·Supply Voltage 3.2V-5.5VDC
Features
·Single supply voltage ring slic: +3.3V to +5.0V
·Integral high efficiency DC/DC converter.
·Highly integrated with ringing generator.
·Tip/Ring polarity reversal.
·2 / 4 wire conversion
·Constant current feed
·High performance with low price
·Excellent sound quality
·On-Hook Transmission for caller line ID.
·Designed for GSM network
·Easy to use, with a minimum number of external components.
Applications
·Fixed Cellular Terminals (FCT) applications.
·POS MODEM applications
·Internet Telephony (VoIP) applications.
·Fixed Wireless Terminals (FWT) applications.
·DVB Terminals applications.
·Wireless local loop (WLL) applications.
·GSM gateway
Index
·unbalanced to ground 60dB(300Hz-3400Hz)
·Two- Wire Impedance 600R
·Four-wire return loss >24Db
·weighted noise -75dB
·Ringing voltage 130VP-P
·Constant current 23-31mA
·Supply Voltage 3.2V-5.5VDC
