Wireless-AC NGFF M.2 CNVio1730M Intel 9560NGW Dual Band Bluetooth 5.0 Wifi Card 01AX768

Transmission Rate:Other
Certification:NONE
Origin:CN(Origin)
Kind:Internal
Type:wireless
Lan Transmission Rate:ETHERNET
Wireless Protocol:802.11n
Length:Other
Adapter Socket:Other
Wi-Fi Supported Frequency:2.4G & 5G
Package:No
Applicable Network Type:ETHERNET
Model Number:M-31 Network Cards
Product name:Network Cards
Model:Intel 9560NGW
SPS:937263-001 0B
Fru P/N:01AX768
Dual Band:2.4Ghz/5Ghz
Speed:Max.1730Mbps
Bluetooth Version:Bluetooth 5.0

if you like the following,please cilck it!
Wireless-AC NGFF M.2 CNVio1730M Intel 9560NGW Dual Band Bluetooth 5.0 Wifi Card 01AX768

(100% and .)
Network Cards
Feature:
Provide Bluetooth 5 and 2x2 802.11ac Wi-Fi including wave 2 features such as 160MHz channels.
Fast downloads and long life.
M.2 2230 modules enable system configuration and platform usages flexibility with the use of a standard Key A or E socket for attaching the module.
Combined with Intel Core processors and exceptional wireless innovations,the Intel Wireless-AC 9560 can provide Gigabit wireless speed4 and dramatically improve your connected experience at home,work or on the go.
Card only, other accessories demo in the picture are not included!
Network Cards
Specification:

Model: Intel 9560NGW
SPS: 937263-001 0B
Fru P/N:01AX768
Dual Band:2.4Ghz/5Ghz(160Mhz)
Speed: Max.1730Mbps(The router must on 160Mhz)
Bluetooth Version: Bluetooth 5.0
Compatible Port/Slot: NGFF
Downstream Data Rate: Max.1730Mbps
ConnectorInterface: M.2:CNVio
Size: One Size
Length: 3.0cm/1.18in
Width: 2.2cm/0.87in
Quantity: 1 Pc
Package includes:
1 x Network Card
Network Cards
Tips
:
1.Not support Windows 7/8/8.1.
2.Not support IBM/Thinkpad/lenovo/hp laptop.
3.Only for the motherboard with the CNVI interface.
Network Cards

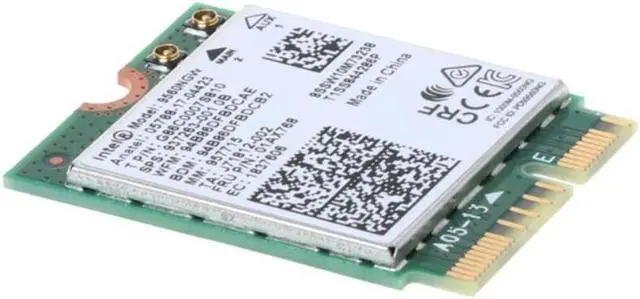

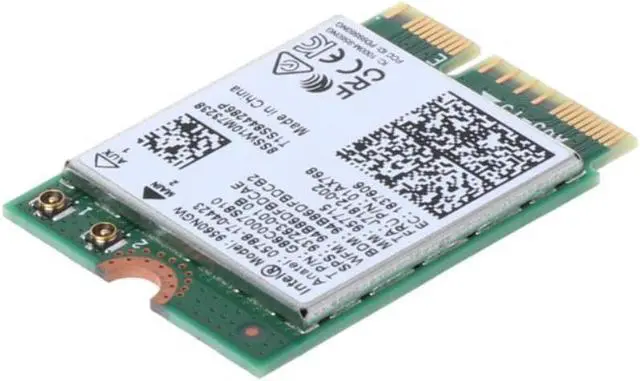

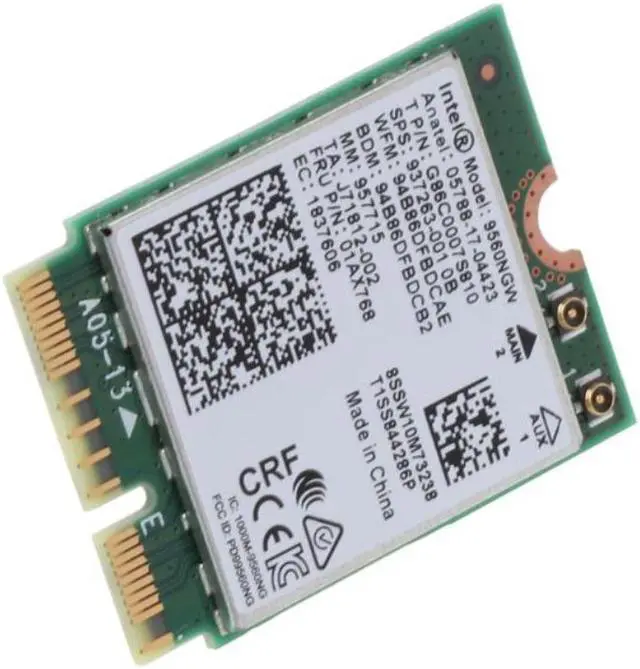

Picture:

Warm tips:
*No
retail package.
* Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
