GEYA GRL8-02 Liquid Control Relay Level Control Relay 10A ACDC24V-240V Wide Range Voltage Water Pump Relay
Limited time offer, ends 08/09 By TechMax Depot
- GEYA GRL8-02 Liquid Control Relay Level Control Relay 10A ACDC24V-240V Wide Range Voltage Water Pump Relay
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Origin:CN(Origin)

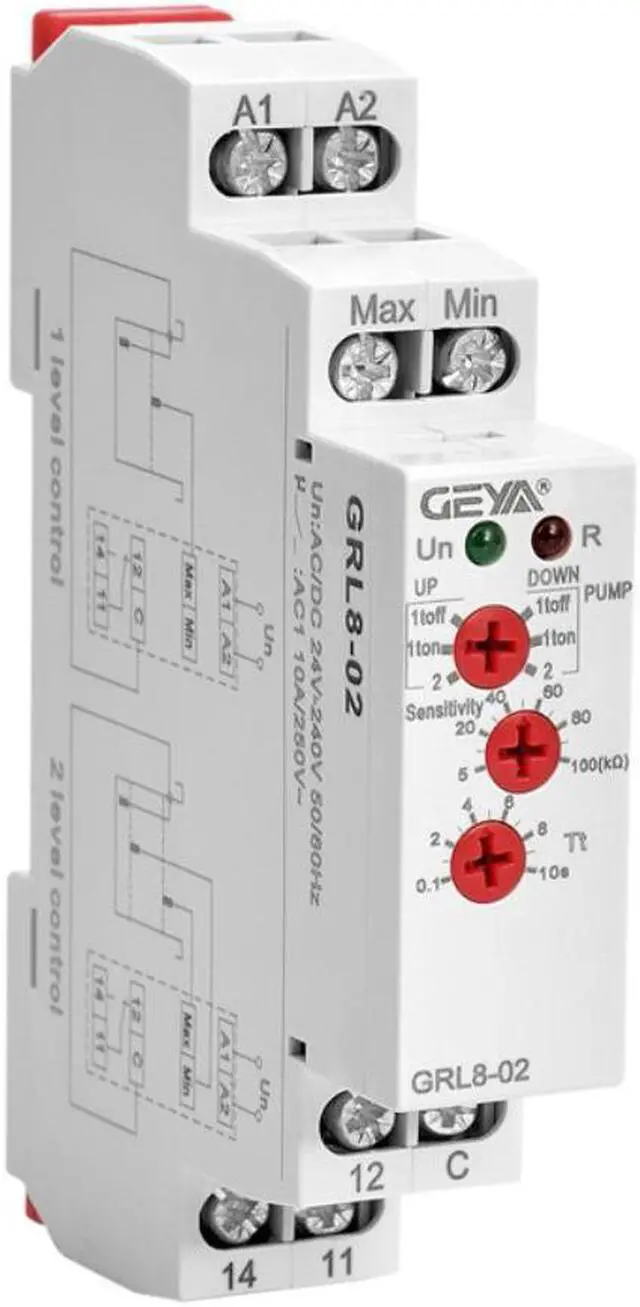

GEYA GRL8-02 Liquid Control Relay Level Control Relay 10A ACDC24V-240V Wide Range Voltage Water Pump Relay
Designed for monitoring level in wells, basins, reservoirs, tanks.

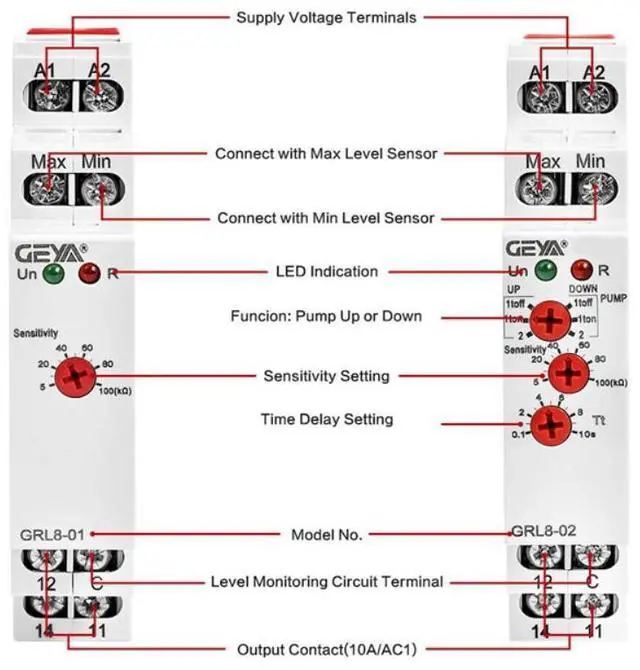

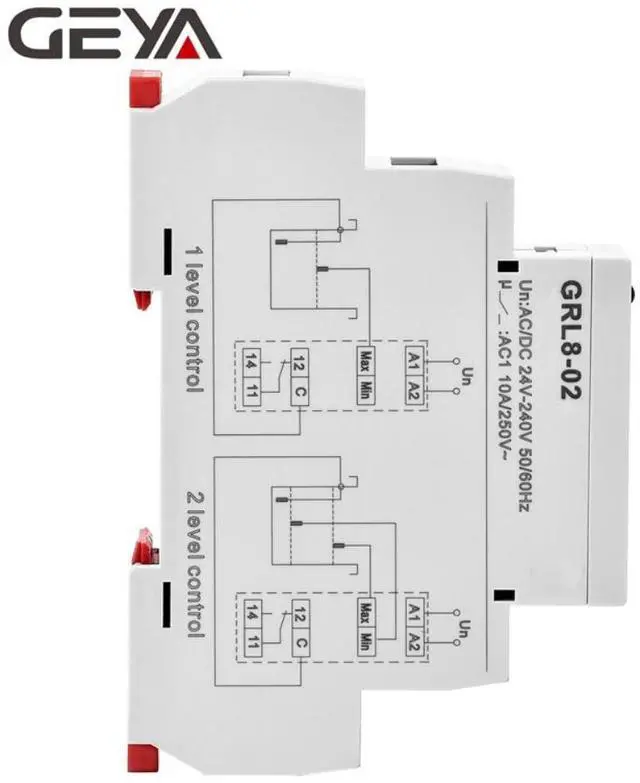

In one device you can choose the following configurations:2 level control mode, 1 level control mode.
Choice of function PUMP UP, PUMP DOWN.
Sensitivity adjustable by a potentiometer (5-100k).
Relay status is indicated by LED.
Adjustable time delay on the output (0.1 - 10s).
Galvanically separated supply voltage AC/DC 24-240V.

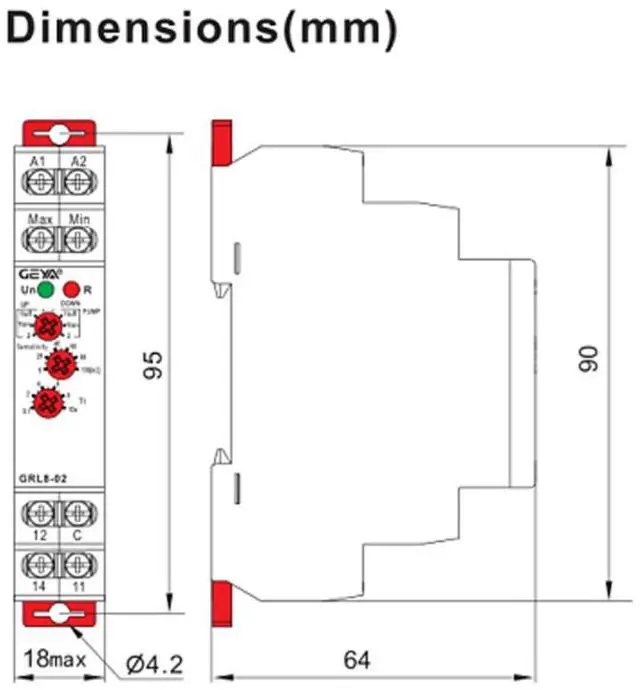

size:90*18*64MM
Material:ABS
colour:white
Package Contents:
1 * Relay
1 * Instructions
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
GEYA GRL8-02 Liquid Control Relay Level Control Relay 10A ACDC24V-240V Wide Range Voltage Water Pump Relay
Designed for monitoring level in wells, basins, reservoirs, tanks.
In one device you can choose the following configurations:2 level control mode, 1 level control mode.
Choice of function PUMP UP, PUMP DOWN.
Sensitivity adjustable by a potentiometer (5-100k).
Relay status is indicated by LED.
Adjustable time delay on the output (0.1 - 10s).
Galvanically separated supply voltage AC/DC 24-240V.
size:90*18*64MM
Material:ABS
colour:white
Package Contents:
1 * Relay
1 * Instructions
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
