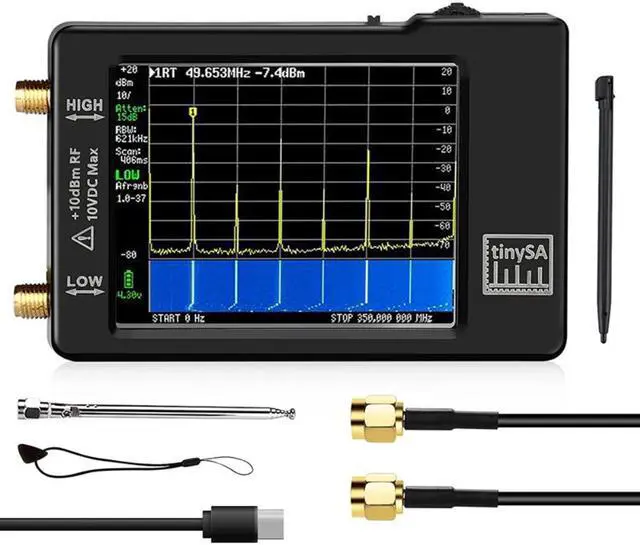

Portable TinySA Spectrum Analyzer,Upgraded V0.3.1 Handheld Tiny Frequency Analyzer 100KHz to 960MHz MF/HF

Origin:CN(Origin)

Portable TinySA Spectrum Analyzer,Upgraded V0.3.1 Handheld Tiny Frequency Analyzer 100KHz to 960MHz MF/HF

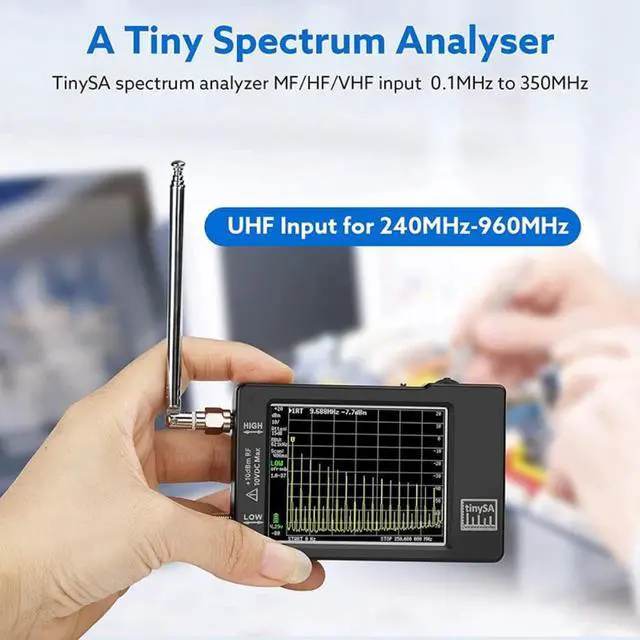

[Frequency Range ]Tiny Spectrum Analyzer with two inputs, MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz. Color display showing 290 scan points covering up to the full low or high frequency rangefrequency range. The tinySA contains all the components of a conventional heterodyne swept spectrum analyzer.
[Built-in Calibration Signal Generator]When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. Built-in calibration signal generator that is used for automatic self test and low input calibration.

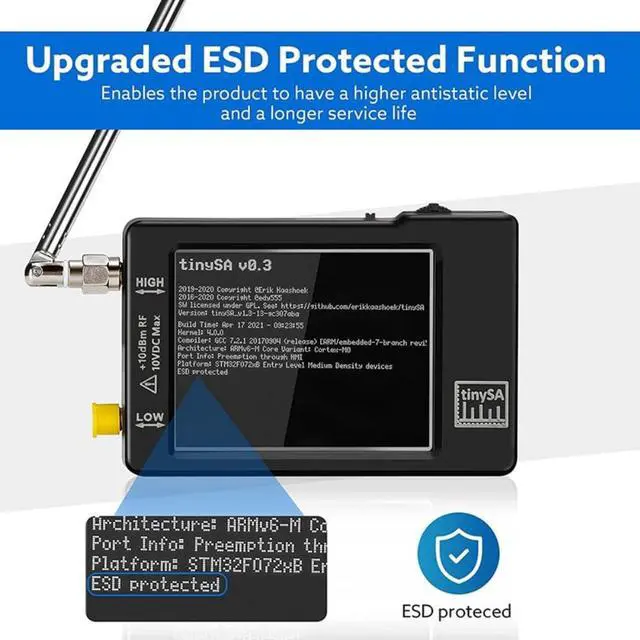

[Tiny Spectrum analyzers & ESD Function]Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz.Color display showing 290 scan points covering up to the full low or high frequency range. Bulit-in rechargeable allowing a minimum of at least 2 hours portable use.The performance of the 2021 latest version 3.1 will be more stable and sensitive, with a ESD protrcted function enable the product to have a higher antistatic level and a longer service life.
[PC Control]Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer.The USB interface implements the Serial over USB (CDC) protocol and there is a large set of commands that can be invoked over the serial interface. These command can be used to perform measurements or update internal settings. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel.
Colour: black
Material: plastic

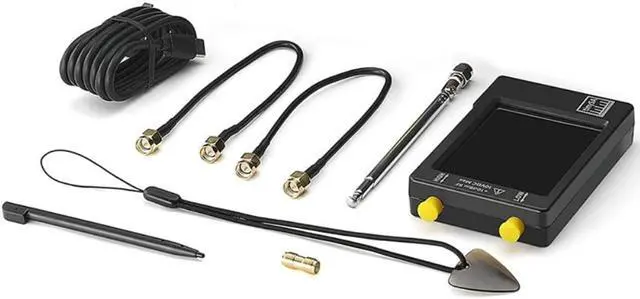

Package Contents:
1 * Mini Spectrum Analyzer
2 * 20cm RF cable
1 * USB cable
1 * SMA female to female connector
1 * Contact screen pen
1 * SMA telescopic antenna
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
