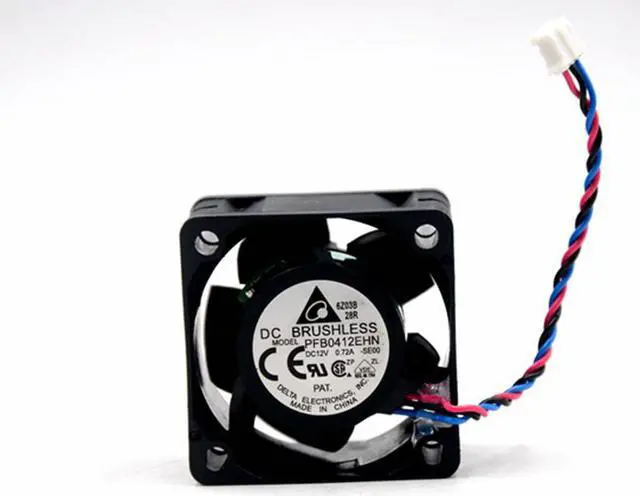

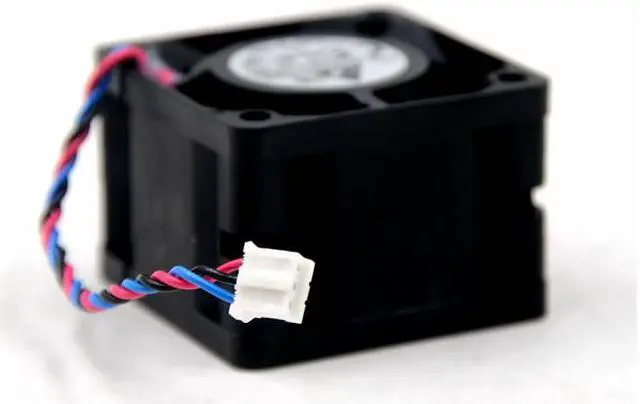

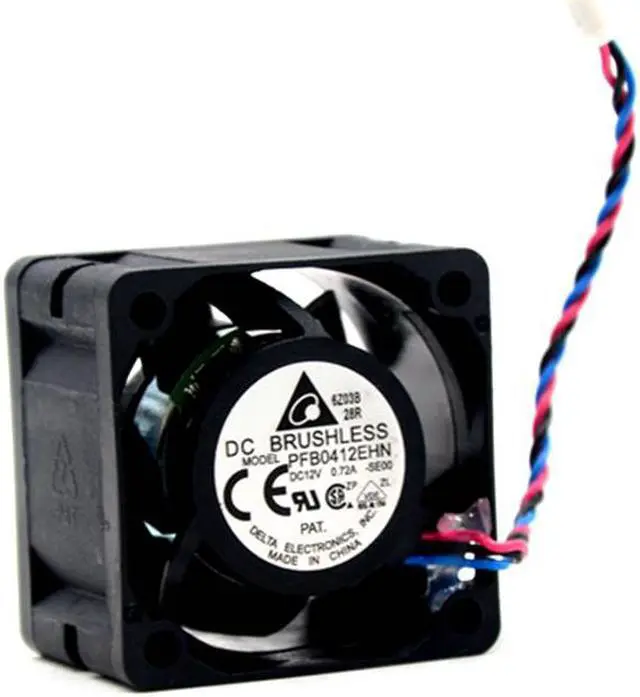

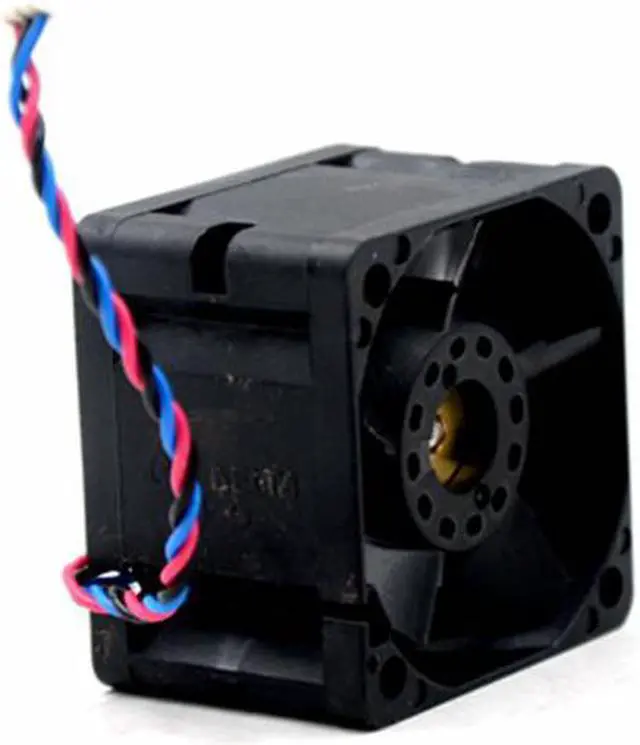

1pcs for Delta PFB0412EHN -SE00 4028 40*40*28mm DC12V 0.72A powerful axial cooling fan 40 mm
Limited time offer, ends 01/29 By dazella store
- 1pcs for Delta PFB0412EHN -SE00 4028 40*40*28mm DC12V 0.72A powerful axial cooling fan 40 mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification:CE
Origin:CN(Origin)
Application:Computer Case
Bearing:Two Ball Bearing
Fan Life:50000 hrs
Lines:3 Lines
Type:Fan
Power Interface:3pin
Heatsink Material:Plastic
1U server fan pfb0412ehn
[fan model]: pfb0412ehn
[appearance size]: 40 × 40 × 28mm
[rated voltage]: DC12V
[voltage range]: dc7.0v-13.6v
[input power]: 0.72 a
[rated speed]: 16000 r.p.m
[temperature range]: - 10.. 70 ° C
[life expectancy]: L10 life expectancy 50000 hours at 25 ° C
[bearing structure]: maintenance double ball bearing
[rotation direction]: the wind is discharged from the bracket and rotates counterclockwise facing the rotor
[wiring mode]: + Red Black signal: Blue (blue is speed measuring line yellow: PWM speed regulation)
[maximum air volume]: 22cfm
[motor protection]: overload protection, fault level protection and locked rotor current protection
[noise index]: 54.5 dB (a)
[material]: fiberglass reinforced plastic, PBT shell, PA blade
[function description]: electronic exchange outward rotor DC fan, complete electronic reversing component
Origin:CN(Origin)
Application:Computer Case
Bearing:Two Ball Bearing
Fan Life:50000 hrs
Lines:3 Lines
Type:Fan
Power Interface:3pin
Heatsink Material:Plastic
1U server fan pfb0412ehn
[fan model]: pfb0412ehn
[appearance size]: 40 × 40 × 28mm
[rated voltage]: DC12V
[voltage range]: dc7.0v-13.6v
[input power]: 0.72 a
[rated speed]: 16000 r.p.m
[temperature range]: - 10.. 70 ° C
[life expectancy]: L10 life expectancy 50000 hours at 25 ° C
[bearing structure]: maintenance double ball bearing
[rotation direction]: the wind is discharged from the bracket and rotates counterclockwise facing the rotor
[wiring mode]: + Red Black signal: Blue (blue is speed measuring line yellow: PWM speed regulation)
[maximum air volume]: 22cfm
[motor protection]: overload protection, fault level protection and locked rotor current protection
[noise index]: 54.5 dB (a)
[material]: fiberglass reinforced plastic, PBT shell, PA blade
[function description]: electronic exchange outward rotor DC fan, complete electronic reversing component
