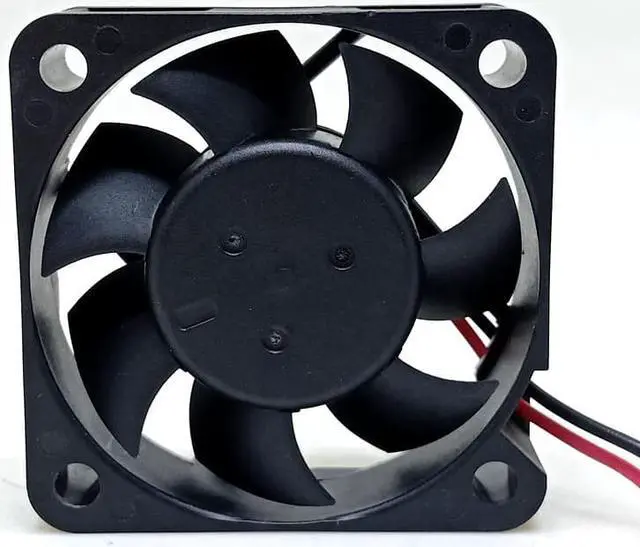

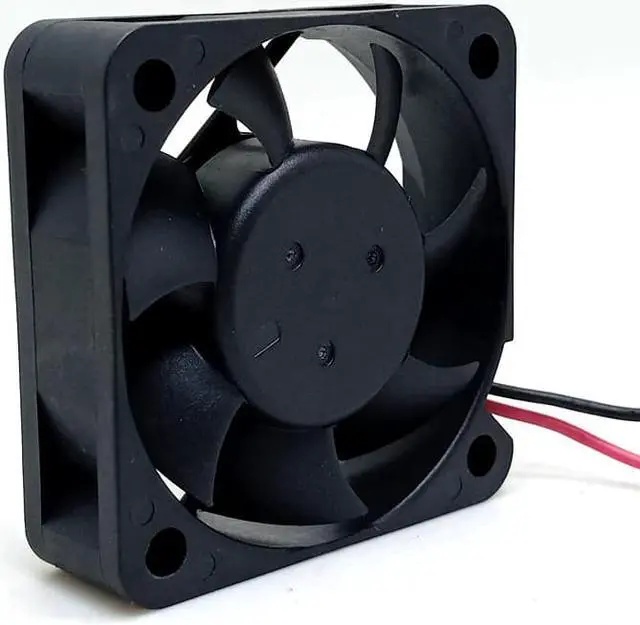

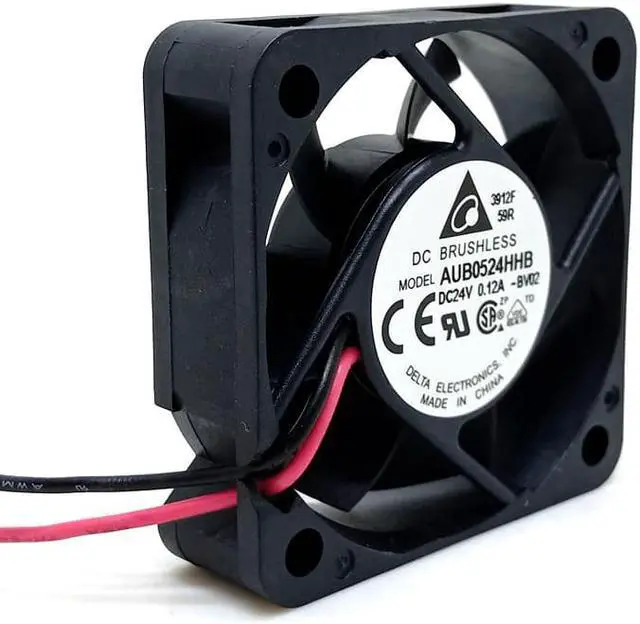

for Delta AUB0524HHB 5015 24V double ball mute fan aub0524hhb inverter Case cooling Fan 5cm

Certification:CE
Origin:CN(Origin)
Application:Computer Case
Package:Yes
Bearing:Two Ball Bearing
Fan Life:50000 hrs
Lines:2 Lines
Type:Fan
Heatsink Material:Plastic

Model: aub0524hhb
Size: 50X50X15mm
Voltage: DC 24V
Voltage range: 14 ~ 27.6v
Current: 0.12A
Speed: 2400 rpm
Air volume: 16.24 CFM 0.460m3/min
Wind pressure: 0.315 in H2O
Noise: 26 d-ba
Temperature range: - 10.. 70 ° C
Life expectancy: L10 at 25 ° c life expectancy 40000 hours
Direction of rotation: the wind is discharged from the bracket and rotates counterclockwise facing the rotor
Motor protection: fault level protection and locked rotor current protection
Material: glass fiber reinforced plastic, PBT shell, PA blade, environmental protection certification service life: 8.0000 hours (25 , 45-85% relative humidity environment)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Rotation direction of fan: anticlockwise from the direction of fan blade;
Operating temperature: - 10 ° C to + 70 ° C;
Storage temperature: - 40 to + 70 ;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: more than 500 megohm;
Withstand voltage: sink leakage current 0.5mA 500V / 1min;
Working life: 80000 hours at 25 ° C ambient temperature
