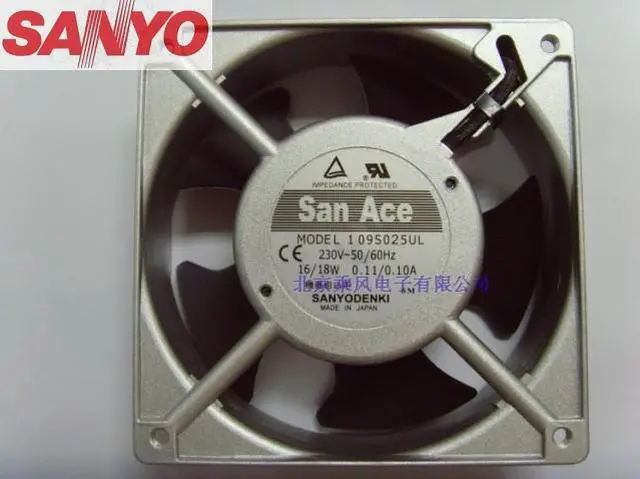

For Sanyo 109S025UL 12038 120mm 12cm AC 220V 0.11A 16/18W server inverter cooling fan
- For Sanyo 109S025UL 12038 120mm 12cm AC 220V 0.11A 16/18W server inverter cooling fan
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Certification:CE
Origin:CN(Origin)
Application:Computer Case
Package:Yes
Compatible CPU:yes
Lines:Other
Type:Fan
Model Number:109S025UL
Heatsink Material:Copper & Aluminum
[ Product Specifications ]: 120 × 120 × 38mm
[ Motor speed ]: 2700 r.p.m
[ Airflow direction ] : Suction "v" type labels in the pole side , wind to the pole
[Frequency ]: 50/60 Hz / 1 phase
[ Rotation]: Look from the rotor counterclockwise direction of rotation
[ Bearing structure ] : Maintenance-double ball bearing
[ Air traffic ]: 83.0CFM
[Low pressure ]: 0 .. 56 Pa
[ Input Voltage ]: 230VAC / 1 Phase
[ Input Power ]: 18.0W
[ Voltage Range ]: AC180V ... 240V / 1 phase
[ Life ]: 40 ° C when the life expectancy of 37,500 hours L10
[ Insulation ]: B Class ( 135 )
[ And outlet ] : Flat 3 plug wire terminals 2.8 × 0.8mm2 chip electrical connection
[ Noise Index ]: 40.0 dB (A)
[ Temperature ]: -30 .. 60 ° C
[ Material Material ] : blades with reinforced plastic PA6.6, white cast aluminum housing
Origin:CN(Origin)
Application:Computer Case
Package:Yes
Compatible CPU:yes
Lines:Other
Type:Fan
Model Number:109S025UL
Heatsink Material:Copper & Aluminum
[ Product Specifications ]: 120 × 120 × 38mm
[ Motor speed ]: 2700 r.p.m
[ Airflow direction ] : Suction "v" type labels in the pole side , wind to the pole
[Frequency ]: 50/60 Hz / 1 phase
[ Rotation]: Look from the rotor counterclockwise direction of rotation
[ Bearing structure ] : Maintenance-double ball bearing
[ Air traffic ]: 83.0CFM
[Low pressure ]: 0 .. 56 Pa
[ Input Voltage ]: 230VAC / 1 Phase
[ Input Power ]: 18.0W
[ Voltage Range ]: AC180V ... 240V / 1 phase
[ Life ]: 40 ° C when the life expectancy of 37,500 hours L10
[ Insulation ]: B Class ( 135 )
[ And outlet ] : Flat 3 plug wire terminals 2.8 × 0.8mm2 chip electrical connection
[ Noise Index ]: 40.0 dB (A)
[ Temperature ]: -30 .. 60 ° C
[ Material Material ] : blades with reinforced plastic PA6.6, white cast aluminum housing
