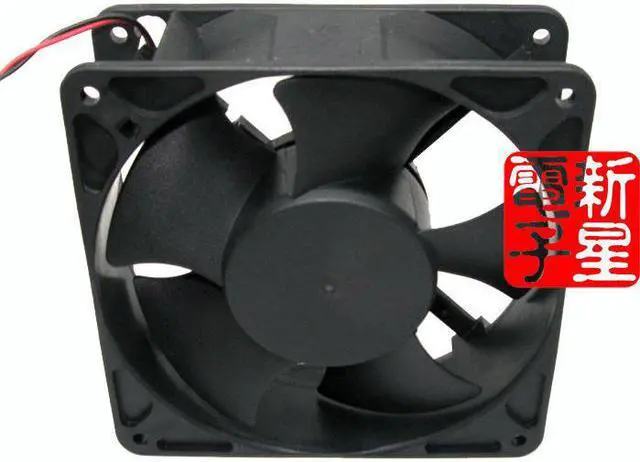

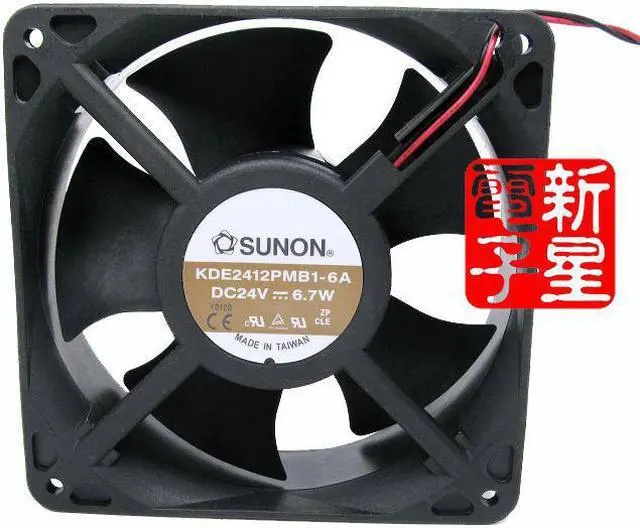

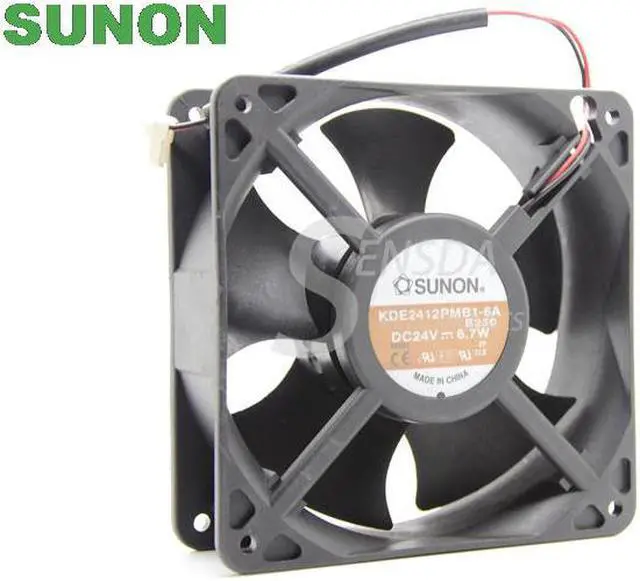

For Sunon KDE2412PMB1-6A 12038 DC 24V 6.7W 120X120X38MM 12cm server cooling fan
- For Sunon KDE2412PMB1-6A 12038 DC 24V 6.7W 120X120X38MM 12cm server cooling fan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification:CE
Origin:CN(Origin)
Application:Computer Case
Compatible CPU:yes
Lines:Other
Type:Fan
Model Number:KDE2412PMB1-6A
Heatsink Material:Copper & Aluminum
Fan Model : KDE2412PMB1-6A
Dimensions : 120 * 120 * 38MM
Screw pitch : 105mm
Bearings : High- precision double ball bearing
Voltage : 24V
Start Voltage : 16V
Operating voltage :20.4-27 .6 V
Current : 0.28A
Power : 6.7W
Speed : 3100RPM ± 250RPM
Noise : 42dB A
Airflow : 108CFM
Cable length : 30cm
Wiring: 2-wire 2P Interface
Fan Frame : injection molding , PBT +30% glass fiber VO grade flame retardant
Blade: plastic injection molding , PBT +30% glass fiber + VO grade flame retardant.
Fan rotation: counterclockwise as viewed from the direction of the blades
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature : -40 degrees Celsius to +70 degrees Celsius
Power supply range: ± 15% of rated power
Insulation resistance : more than 500 megohms
Withstanding voltage: Department of leakage current 0.5mA 500V / 1
Working life : ambient temperature of 25 degrees 80,000 hours
Scope: inverter and other industrial equipment
Weight : 326g
Origin:
Origin:CN(Origin)
Application:Computer Case
Compatible CPU:yes
Lines:Other
Type:Fan
Model Number:KDE2412PMB1-6A
Heatsink Material:Copper & Aluminum
Fan Model : KDE2412PMB1-6A
Dimensions : 120 * 120 * 38MM
Screw pitch : 105mm
Bearings : High- precision double ball bearing
Voltage : 24V
Start Voltage : 16V
Operating voltage :20.4-27 .6 V
Current : 0.28A
Power : 6.7W
Speed : 3100RPM ± 250RPM
Noise : 42dB A
Airflow : 108CFM
Cable length : 30cm
Wiring: 2-wire 2P Interface
Fan Frame : injection molding , PBT +30% glass fiber VO grade flame retardant
Blade: plastic injection molding , PBT +30% glass fiber + VO grade flame retardant.
Fan rotation: counterclockwise as viewed from the direction of the blades
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature : -40 degrees Celsius to +70 degrees Celsius
Power supply range: ± 15% of rated power
Insulation resistance : more than 500 megohms
Withstanding voltage: Department of leakage current 0.5mA 500V / 1
Working life : ambient temperature of 25 degrees 80,000 hours
Scope: inverter and other industrial equipment
Weight : 326g
Origin:
