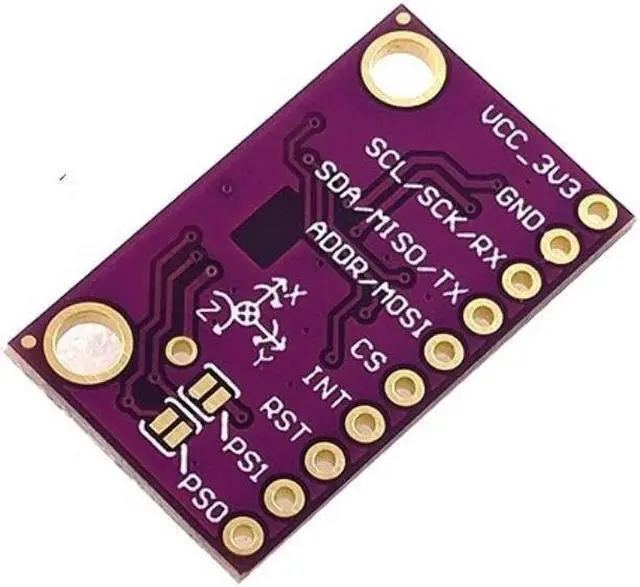

GY-BNO080 Bno085 Ar IMU High Precision Nine-Axis 9dof AHRS Sensor Module

Certification:NONE
Origin:CN(Origin)

The Power Supply Voltage Is 3.3V.
Bno080/085 Is a 9 Axes System-Level Package (SiP) That Can Quickly Develop Augmented Reality (AR), Virtual Reality (VR), Robots, and Internet of Things Devices That Support Sensors. It Is Jointly Developed by Bosch and Hillcrest Labs, with High-Performance Accelerometer, Magnetometer and Gyroscope, and Adopts 32-Bit ARM Cortex M0 + MCU with Low Power Consumption in Small Package. Hillcrest of space®Sensor Hub Software Is Pre-Integrated on Bno080/085, Providing Excellent 9 Axes and 6-Axis Motion Tracking, Which Can Realize Exciting Sensor Applications in Various Consumer and Internet of Things Products.
Bno080/085 Provides Application-Specific Configuration, Functions and Performance in a Small Turnkey Assembly. by Shortening Product Rollout Time, Shortening Development Time and BOM Cost, as Well as Providing the Highest Precision and Quality, OEM Benefits.
VR IMU Uses the Impressive Bno080 IMU. The IC Has a Combination of Three-Axis Accelerometer/Gyroscope/Magnetometer, Which Runs Together with ARM Cortex M0 + and Runs Powerful Algorithms. Bno080 Inertial Measurement Unit (IMU) Can Generate Accurate Rotation Vector Title, Which Is Very Suitable for VR and Other Heading Applications, with Static Rotation Error of 2 Degrees Or Less. This Is What We Have Been Waiting for: All Sensor Data Are Combined and Drift to Correct Meaningful and Accurate IMU Information.
The IC Is Designed to Be Implemented in Android-Based Mobile Phones to Use Only Your Mobile Phone to Process All the Calculations Required for Virtual Reality Goggles. The Sensor Has Powerful Functions and Complex Power. Provides a Library Based on 2C, Which Provides Rotation Vector (Most People Want to Read from IMU) as Well as Acceleration, Gyroscope and Magnetometer Reading, Step Number, Activity Classifier (Such as Cycling) and Calibration.
VR IMU Has Created a Demonstration Processing Application to See How IMU's Motion Uses IMU's Quaternary Output to Accurately Manipulate 3D Objects.
If I-C Is Not Your First Communication Choice, the Sensor Can Also Communicate with UA through the SPI! If You Are Using UA, We Recommend That You Use Serial Basic to Easily Connect.
This Version Uses 32 KHz Crystal on Board, Which Can Improve Precision and More Accurate Timestamp.
Features
Interfaces:
The BNO080 can communicate through a variety of interfaces. The Qwiic VR IMU has two jumpers that allows the user to select their interface of choice.
I2C (Default): Up to 400kHz
SPI: Up to 3MHz
UART: 3Mbps
UART-RVC (Robot Vacuum Cleaners): 115200kbps
Performance Characteristics:
Rotation Vector
Dynamic Error: 3.5°
Static Error: 2.0°
Gaming Rotation Vector
Dynamic Error: 2.5°
Static Error: 1.5°
Heading Drift: 0.5° / min
Geomagnetic Rotation Vector
Dynamic Rotation Error: 4.5°
Static Rotation Error: 3.0°
Gravity Angle Error: 1.5°
Linear Acceleration Accuracy: 0.35m/s
2
Accelerometer Accuracy: 0.3m/s
2
Gyroscope Accuracy: 3.1° / sec
Magnetometer Accuracy: 1.4T
