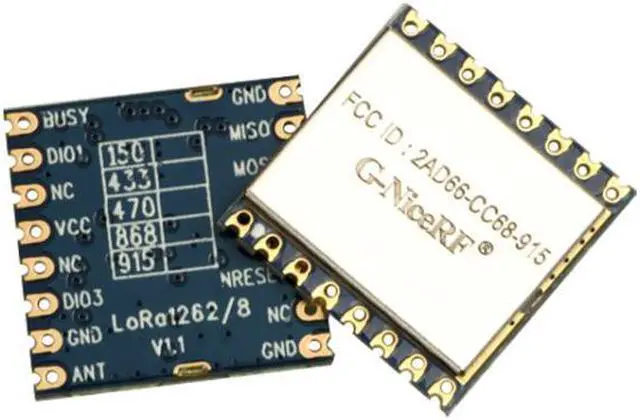

G-NiceRF FCC LoRa-CC68-TCXO 915mhz LLCC68 LoRa Module160mW 5KM Instead of sx1278,sx1276,sx1262,sx1268,si4463,si4432

Origin:CN(Origin)
Model Number:1PCS 915MHZ LoRa-CC68-TCXO
Operating Voltage:1.8~3.7V
Operating Frequency:915MHz
Maximum output power:22 dBm(160mW)
Interface:SPI interface
Product:LoRa-CC68 wireless transmitter receiver
Receiving Sensitivity:-129dBm @LoRa
TX Current(868/915MHZ):<130mA @868MHz @915MHz
TX Current(433/490MHZ):<110mA @433MHz @490MHz
RX Current:<5mA
Data transfer rate@FSK:0.6-300 Kbps @FSK
Data transfer rate@Lora:1.76-62.5 Kbps @Lora
Operating Temperature:-40~+85 degree
Modulation:Lora ,FSK

FCC certificated LoRa-CC68-TCXO 915MHz LLCC68 LoRa Module 160mW 5KM instead of sx1278,sx1276,sx1262,sx1268,si4463,si4432
Order list:
1PCS * LoRa-CC68-TCXO 915MHZ    (915MHz LoRa LLCC68 Chip LoRa-CC68 Module)

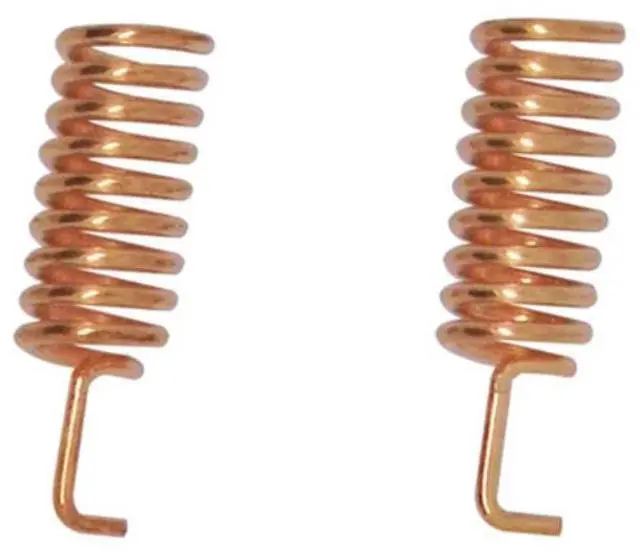

1PCS * SW915-TH12                (915MHz Wireless RF Antenna)
If you need 433MHZ,490MHZ,868MHZ ,please leave us message.

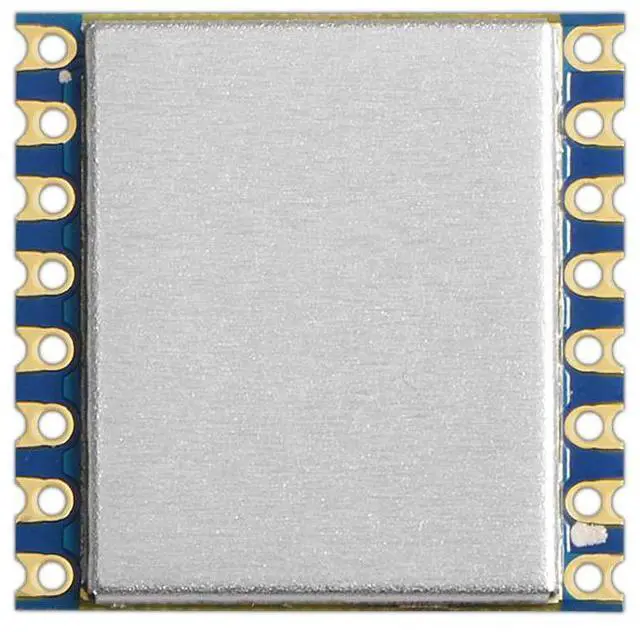

The LoRa-CC68 wireless module uses Semtech's LLCC68 device, ultra-low receive current and sleep
current, and sensitivity of -129dBm. Built-in 64KHz crystal oscillator can wake up the microcontroller
periodically under low power consumption. The module antenna switch is integrated and controlled by
the chip, which saves the resources of the external MCU. The compact size and 22dBm (160mW)
output power have great advantages in IoT and -powered applications.
LoRa-CC68 comply with lead-craft in production and testing and meets RoHS and Reach standards.
Feature:
Frequency Range433/490/868/915 MHz customizable150-960 MHz
Sensitivity-129dBm @LoRa
Maximum output power22 dBm160mW
Industrial grade high precision crystal oscillator
LoRa,(G)FSK
255 bytes FiFo
Data transfer rate 0.6-300 Kbps @FSK ;1.76-62.5 Kbps @Lora
Application:
Remote meter reading
Industrial control
Home automation remote sensing
Toys control
Sensor network
Tire pressure monitoring
Health monitoring
Wireless PC peripherals
Specifications
Schematic
Pin Configuration
Mechanical Dimension
Product show
Module performance index
