10PCS SRX882 315MHz Receiver Module --ASK Wireless rf module RX Module
- 10PCS SRX882 315MHz Receiver Module --ASK Wireless rf module RX Module
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:CN(Origin)
Model Number:SRX882S 315MHz Receiver Module
Operating Voltage:2.4~5.4V
Operating Frequency:315MHz
Operating Temperature:-30~85
Sleep Current:<0.01uA
Modulation:ASK
RF Rate:0.1~9.6Kbps
Current:2.5mA@315MHz
Module type:Wireless RF receiver Module
Sensitivity:-107dBm
is_customized:yes
Compatible:Handheld Player, Game Console, Kinect, PlayStation Move

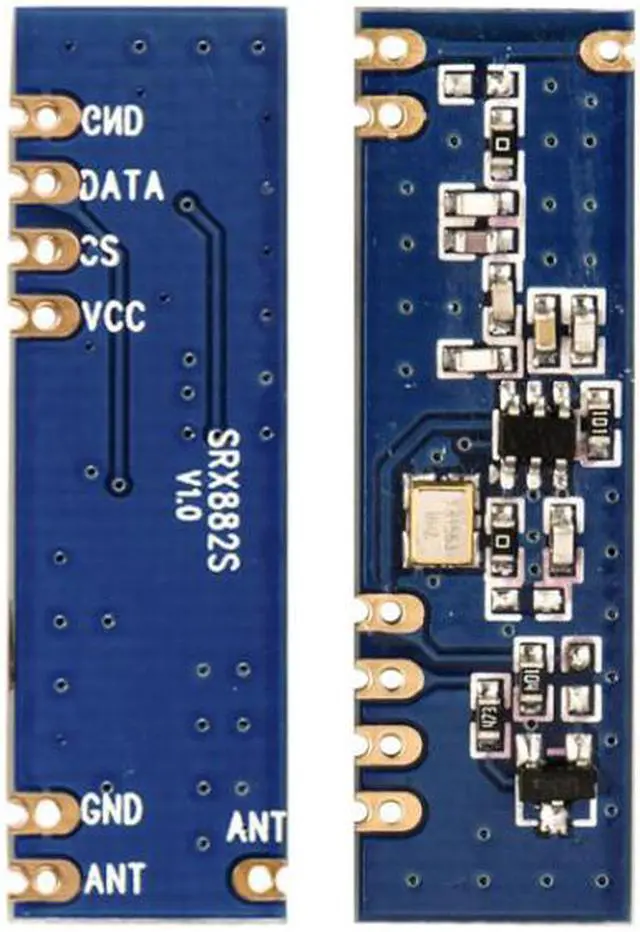

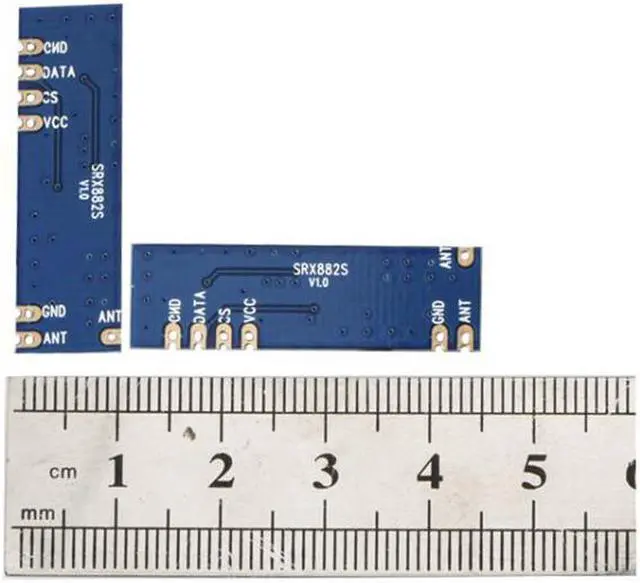

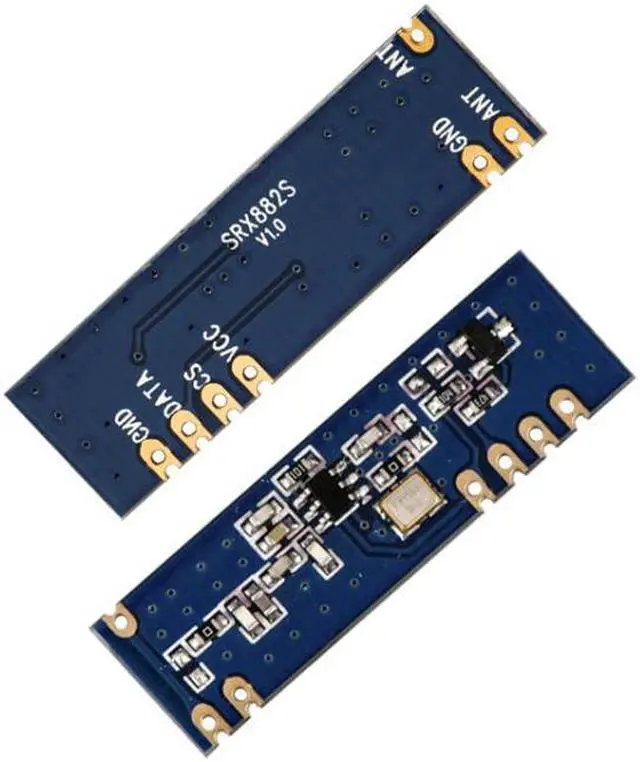

10PCS SRX882S 315MHz ASK Wireless RF Receiver Module
10pcs * SRX882S-315
10pcs * SW315-TH32 Spring antenna
SRX882
is a micro power strong driving force super heterodyne receiver module. It is can support our transmitter module STX882/STX888. It has high stability, anti-interference and high cost-effective, also has a powerful driving force, certified by ROHS, FCC, CE, The module can be connected to the microcontroller directly. So it is more convenient for user developing wireless products.
Specification:
Features:
Frequency Range: 315 MHZ
ASK /OOK modulation mode
Super anti-power interference
Low-power sleep less than 1uA
Low self radiation
Small size
Frequency stability and reliability
Various international testing standards
Model Number:SRX882S 315MHz Receiver Module
Operating Voltage:2.4~5.4V
Operating Frequency:315MHz
Operating Temperature:-30~85
Sleep Current:<0.01uA
Modulation:ASK
RF Rate:0.1~9.6Kbps
Current:2.5mA@315MHz
Module type:Wireless RF receiver Module
Sensitivity:-107dBm
is_customized:yes
Compatible:Handheld Player, Game Console, Kinect, PlayStation Move
10PCS SRX882S 315MHz ASK Wireless RF Receiver Module
10pcs * SRX882S-315
10pcs * SW315-TH32 Spring antenna
SRX882
is a micro power strong driving force super heterodyne receiver module. It is can support our transmitter module STX882/STX888. It has high stability, anti-interference and high cost-effective, also has a powerful driving force, certified by ROHS, FCC, CE, The module can be connected to the microcontroller directly. So it is more convenient for user developing wireless products.
Specification:
Features:
Frequency Range: 315 MHZ
ASK /OOK modulation mode
Super anti-power interference
Low-power sleep less than 1uA
Low self radiation
Small size
Frequency stability and reliability
Various international testing standards
