10pcs RF2401 FSK Small Size 2.4G Wireless RF Transmitter and Receiver Module

Origin:CN(Origin)
Model Number:10pcs RF2401
Operating Voltage:1.9~3.6V
Operating Frequency:2.4G~2.4835GHz
Receiving Sensitivity:-115dBm@ 1.5kbps
Operating Temperature:-40~+85 degree
Sleep Current:<1uA
TX Current:11mA@-1dBm, 36mA@+10dBm
RX Current:7mA
RF Rate:1.5~72Kbps
Modulation:FSK
Compatible:Handheld Player, Game Console, Kinect, PlayStation Move

10pcs RF2401 FSK Small Size 2.4G Wireless RF Transmitter and Receiver Module
10pcs*RF2401 (FSK RF Transmitter and Receiver Module)
10pcs* cable antenna
RF2401
is a FSK wireless transceiver working in 2.4GHz ISM band. Compared to the 2.4GHz module/chip, the low consumption, high sensitivity, high power output, long distance communication is most attractive.  This module adopts the wireless chip which is designed by one of the top Euro RF company. All the features of low cost, small size and stability, 10dBm output power, 7mA @receive mode and -115dBm sensitivity are much better than the existing 2.4G RF module in the market. It can be widely used in many fields. It complies with the FCC and ETSI certification.
Feature:
Frequency arrange:2400-2483.5 MHz
Sensitivity up to -115dBm @ 1.5K
Output power:-20~10 dBm
Data rate:1.5-72 kbps
FSK modulation
1.9-3.6 V power supply
Low power testing
Ultra low current shutdown mode current
Low current receiving mode
Transmitting current:11 mA @ -1dBm  36 mA @ +10 dB
Working temperature:-40 ~ +85 °C
integrated voltage regulator
Frequency hopping function
Application
Remote control
Remote meter reading
Home security alarm and remote keyless entry
Sensor networks
Industrial control
Tire Pressure Monitoring
Home automation telemetry
Health Monitoring
Personal data records
Wireless PC peripherals
Toy control
Tag reader
Electrical Specification

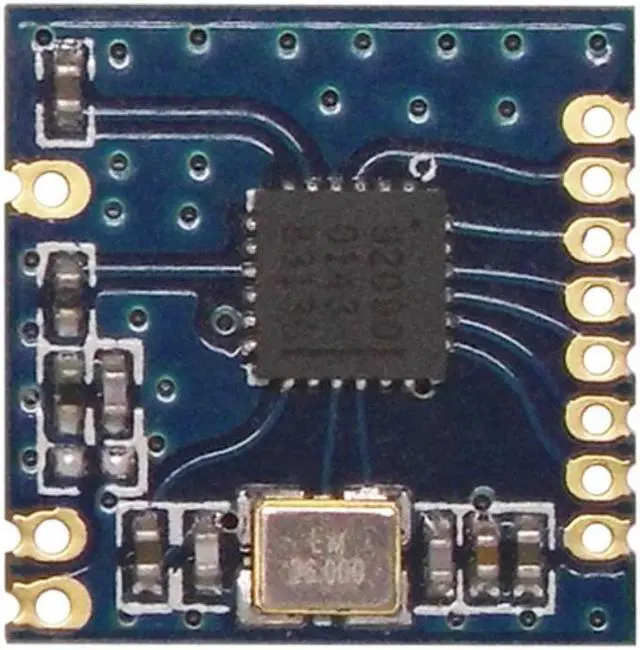

Product show
Schematic
Pin Configuration
Mechanical Dimension
