4pcs SA818-V (SA818S-V)134~174MHz(VHF) high-integrated Embedded walkie talkie module

Origin:CN(Origin)
Model Number:SA818(SA818S)
Voltage:3.5~5.5V
RX Current:60mA
V bands Frequency:134~174MHz(VHF)
U bands Frequency:400 ~ 480 MHz (UHF)
RX Sensitivity:-124dBm
Sleeping Current:<=3uA
Band width:12.5/25KHz
Power:500mW-1W
Transmission distance:up to 3.5 to 5 kminOpen area
Sensitivity::- 124 DBM
Compatible:Handheld Player, Game Console, Kinect, PlayStation Move

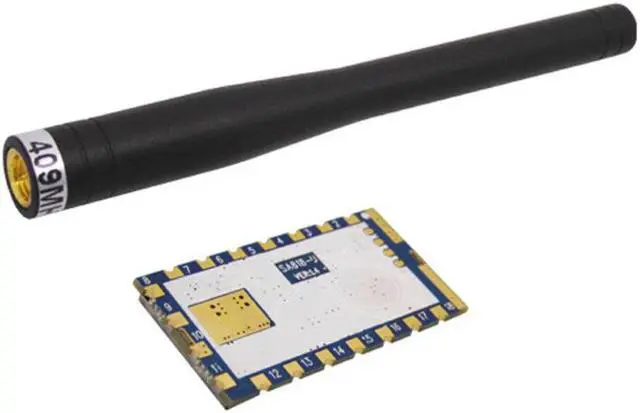

4pcs SA818-V 134~174MHz(VHF) high-integrated Embedded walkie talkie module
Package include:
4pcs * SA818-V(SA818S-V)
(VHF walkie talkie RF transmitter and receiver module)
4PCS * SW150-ZT128DN
(150MHZ VHF Wireless RF Antenna)
SA818 has been upgraded to SA818S!!
Description
SA818 is a low cost and high performance integrated walkie talkie module,This module is the 2nd generation of the walkie talkie module and the upgraded version of SA808,SA818 comes with built-in high performance microcontroller.
narrow band rf transceiver and standard UART interface.It is easy to use.Users only need to add external audio amplifier,microphone and speaker,then it becomes a professional walkie talkie with 1W output. In open area.it can easily achieve 3.5Km communication distance.Simplified interface and ultra small size make this module widely used in various applications and conveniently embedded into various handheld devices.
There are two frequency bands of SA818: SA818-U and SA818V. The only difference is the frequency range,The others are same,including module size, interface,software protocol,etc. The two modules frequency ranges are:
SA818-U:
U band 400 -- 480MHz
SA818-V:
V band 134 -- 174MHz
This link is for ordering SA818-V
Specifications:
Features:
* Frequency range:
SA818-U:  400 ~ 480 MHz (UHF)
SA818-V :  134~174MHZ (VHF)
* Tx and Rx frequency, Tx andRxCTCSS,CDCSS can be set alone.
* Band width 12.5/25KHz
* Output power up to 1 w
* Transmission distance up to 3.5 to 5 kminOpen area
* sensitivity: - 124 DBM
* small size
* Built-in EEPROM, data kept unchanged
even powered off
* 38 CTCSS
* 166 CDCSS
* 8 level squelch
* 8 adjustable volume
* high/ low power is optional (500 mw)-1w
* wide range of working voltage  3.3 to 5.5 V
* 1 ppm KDS TCXO crystal,
Application:
* small walkie talkie

* Invisible intercom system
* Sport products
* building community security system
* audio surveillance system
Internal block:
Shematic:
Pin out:
Mechanical dimension:
