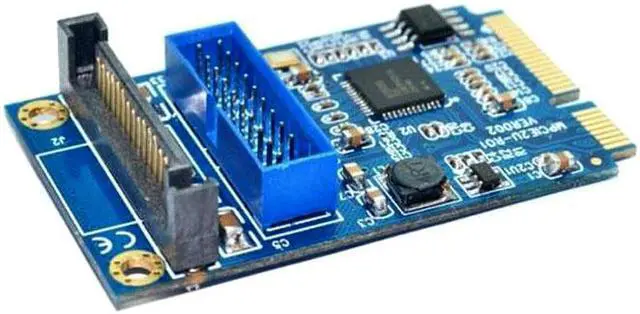

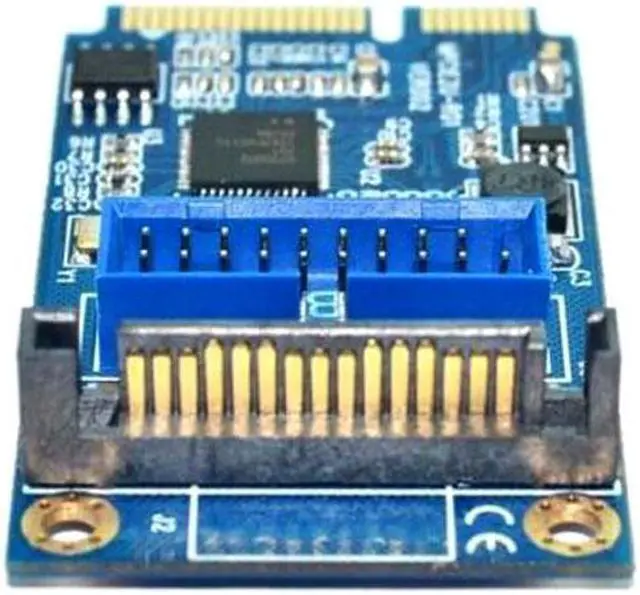

Motherboard Mini PCI Express to Dual USB 3.0 19-pin Expansion Card Adapter PCI-E to 2 ports USB 3.0 SATA Adapter XXM

Certification:CE
Origin:CN(Origin)
Package:No
Model Number:N/A
Type:M.2 SSD To PCI-E
Interface Type:PCI Express

Motherboard Mini PCI Express to Dual USB 3.0 19-pin Expansion Card Adapter PCI-E to 2 ports USB 3.0 SATA Adapter XXM
Description:
Features:
Main chip: NEC UPD720202 chipset
May have unused mini PCIe slot for PC expansion slot a 19-pin USB3.0 theoretical transfer rate up to 5Gbps, much higher than the USB2.0 480Mb / s, up to 10 times;
Backward compatible with USB2.0, USB1.1, USB1.0
Transfer rate: 5000/480/12 / 1.5Mbps
Built-in 19-pin can turn out two USB3.0 ports
Compliance with PCI-Express Specification Revision 2.0
Compliance with xHCI specification version 1.0
Compliance with USB3.0 SuperSpeed specification version 1.0
USB support hot swap function
Support Windows XP / 2003 / Vista / win7 / win8 / 2003 / linux, can provide LINUX drivers.
Note:
Mini PCI-E because without a 5V power supply, not directly to the USB-powered, so it can be inserted using the SATA power cable to work properly!
This expansion card can only be plugged into the MINI PCI-E interface, can not be used MSATA interface. Please make sure when buying interface, or can not work.
USB3.0 is double total 20PIN, which has one foot already needle injection foolproof, so called 19PIN.
Because SATA Docking Station are plastic, not iron, so the line is relatively tight, when the harness must withstand plug the cable back transposons, forced plug wire when the transposon will tilt.
Package Includes:
1 x Expansion Card
1 x Driver CD
'
