Western Digital HDD PCB logic board WD5000LMVW WD5000LMCW / 2060-800038-000 REV P1 2060 800038 000 / 800038-E00

Origin:US(Origin)
Type:Industrial Computer Accessories
Certification:NONE
Model Number:2060-800038-000
Products Status:Used

HDD PCB/Logic Board Board Number:
2060-800038-000 REV P1
The Hard Disk Drive is not include.

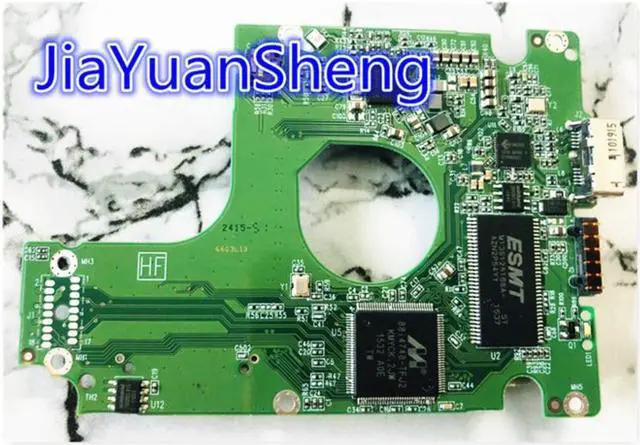

The pcb number position
Please Note:
1.These boards are used, the circuit board components not falling, the interface did not break.
2. All PCB have been tested before . If the PCB is faulty during , please inform us immediately after your received it.
3. If you are not sure the PCB is compatible with your HDD or not. Please contact us
Replacement the PCB only can solve the problem that is caused by the PCB faulty and HDD failures are not always caused by the PCB faulty. This PCB is not guaranteed to fix your HDD.
Main Controller IC:
88i4748-TFJ2
HDD Motor Combo IC:
WD REDF IN
Board Number:
2060-800038-000 REV P1 (Please make sure your PCB board number is same as our PCB)
Remarks: If your HDD firmware, date code and site code is different. You can swap the BIOS chip from PCB to the replacement PCB, to make the replacement PCB compatible with your HDD.

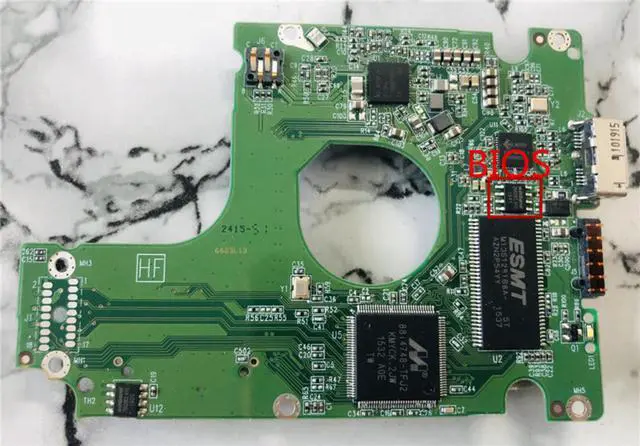

the BIOS chip position
If you need our help to swap the BIOS chip on the PCB, please contact us. Thank you.
Attention: Replacement the PCB only can solve the problem that is caused by the PCB faulty. If your HDD having the following problem.
Symptoms of failure:
The drive will power up normally (no ticking noises, errors etc) but
will not
be recognized by the computer
The drive will power up normally and be recognized correctly but
will report a size of 0 bytes
The drive will power up but report SMART errors on boot
Replacement the PCB may not solve the above problem. These problem is caused by the HDD firmware corrupted.
