HDD PCB Logic Board / F 0A29582 01 , B 0A29582 01 / IC:0A29625 / 0A29695 / HDS721616PLA380, HDS728040PLAT20

Origin:JP(Origin)
Type:Industrial Computer Accessories
Certification:NONE
Model Number:0A29582
Products Status:Used

HDD PCB for Hitich/Logic Board number: F 0A29582 01 /Main Controller IC: 0A29625 /Stickers :0A29695
Number of board space location
Please Note:
1.These boards are used, the circuit board components not falling, the interface did not break.
2. All PCB have been tested before . If the PCB is faulty during , please inform us immediately after your received it.
3. If you are not sure the PCB is compatible with your HDD or not. Please contact us
Replacement the PCB only can solve the problem that is caused by the PCB faulty and HDD failures are not always caused by the PCB faulty. This PCB is not guaranteed to fix your HDD.

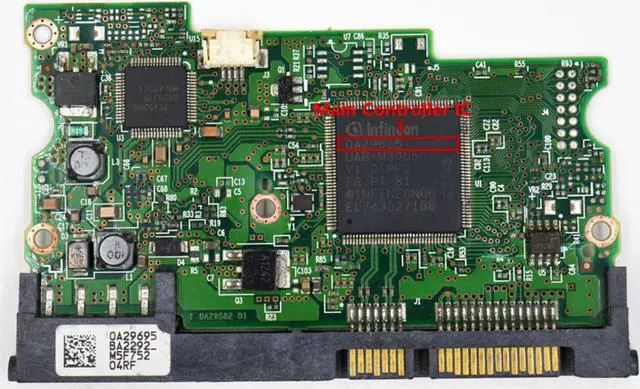

Main Controller IC:
0A29625
(Main control IC needs to be consistent with the bad boards)
HDD Motor Combo IC:0A29374(Both IC is compatible with each other)
Board Number:
F 0A29582 01
(Please make sure your PCB board number is same as our PCB)
Remarks: If your HDD firmware, date code and site code is different. You can swap the BIOS chip from PCB to the replacement PCB, to make the replacement PCB compatible with your HDD.

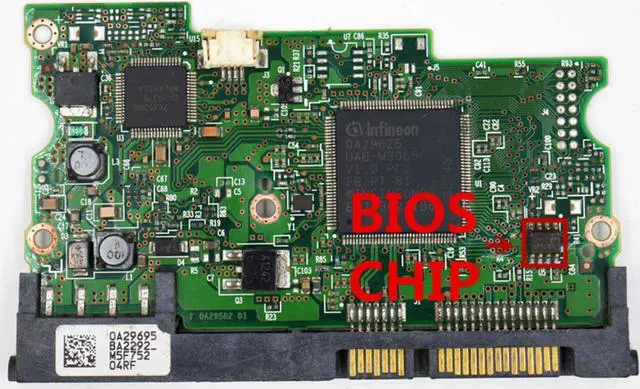

the BIOS chip position
Attention: Replacement the PCB only can solve the problem that is caused by the PCB faulty. If your HDD having the following problem.
Symptoms of failure:
The drive will power up normally (no ticking noises, errors etc) but will not be recognized by the computer
The drive will power up normally and be recognized correctly but will report a size of 0 bytes
The drive will power up but report SMART errors on boot Replacement the PCB may not solve the above problem. These problem is caused by the HDD firmware corrupted.
