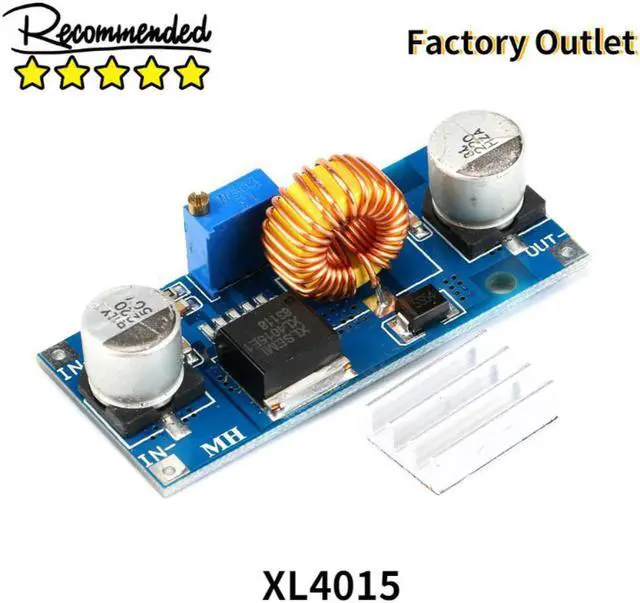

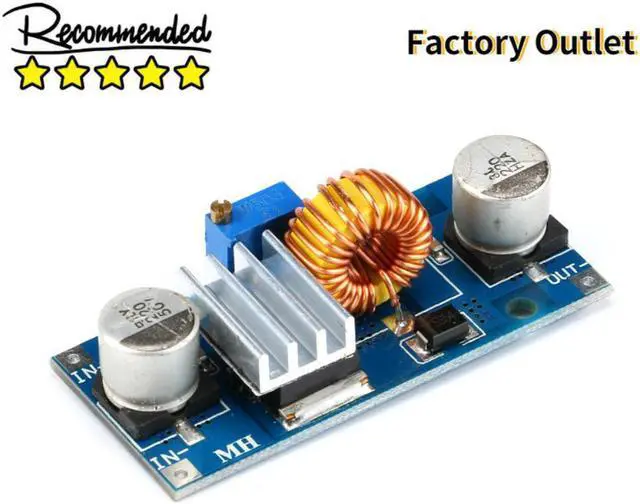

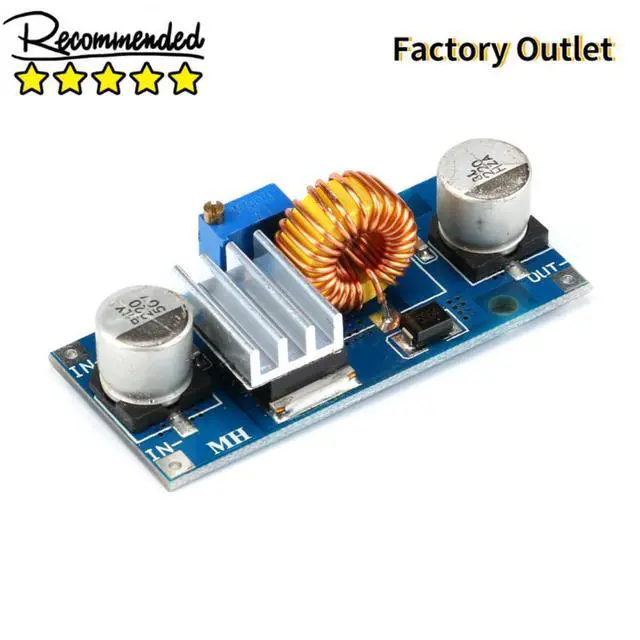

2PCS 5A XL4015 DC-DC Step Down Adjustable Power Supply Module Voltage Regulator Buck LED Module with Heatsink

Origin:CN(Origin)
Condition:
Type:Voltage Regulator
Package:TQFP
is_customized:Yes
Model Number:5A XL4015 DC-DC Step Down Adjustable Power Supply Module
Application:Voltage Regulator
Operating Temperature:-40 ~ +85 degrees
Supply Voltage:4-38V
Dissipation Power:-

2PCS 5A XL4015 DC-DC Step Down Adjustable Power Supply Module Voltage Regulator Buck LED Module with Heatsink
Product description:
Modular nature: Non-isolated buck module (BUCK)
Input voltage: 4-38V (input should try not to exceed 38V)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A
Output power: 75W
Operating temperature: -40 ~ +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Load regulation: S (I) 0.8% (input 24V, output 12V, load from 1 ~ 4.5A when measured)
Voltage regulation: S (u) 0.8% (output 12V, 4A, the voltage measured from 18 to 32V)
Power indicator: Yes
Short circuit protection: Yes (limit current 8A)
Over-temperature protection: Yes (over-temperature automatically turn off the output)
Input Reverse Protection: None, (if required, enter the high-current diode in the input string)
Installation: 2 3mm screws
Wiring method: welding, V-IN for the input, V-OUT for the output.
Applications:
This module can be used in the input voltage is higher than the output voltage of the buck area, such as batteries, power transformers, DIY adjustable power supply, 24V car pen the power supply, industrial equipment buck, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V and so on.
