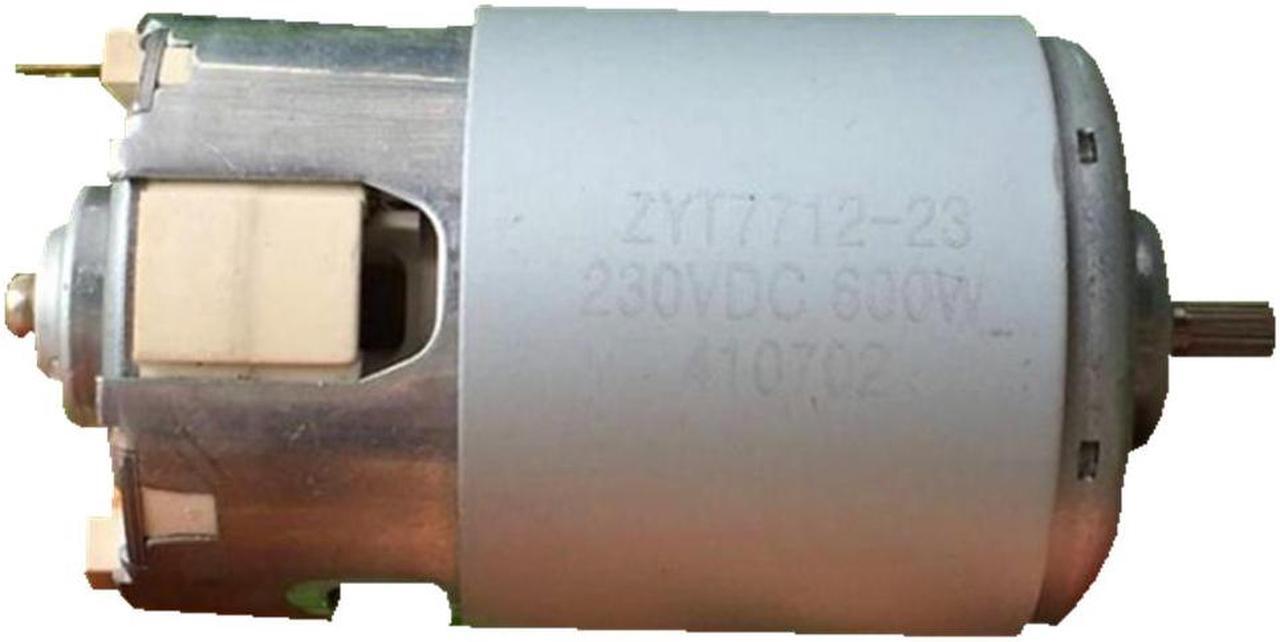

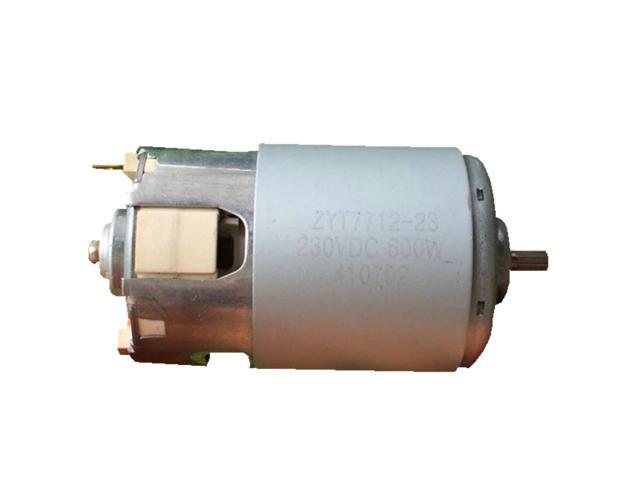

RS-7712 DC 220V 600W Motor 12000RPM High Speed High Power Large Torque Soybean Pulp Machine Motor RS-7712SHFC2J2-13160RIB

Origin:CN(Origin)
Certification:CCC
Continuous Current(A):60mA
Commutation:Brushless
Model Number:RS-7712SHFC2J2-13160RIB
Type:Micro Motor
Protect Feature:Drip-proof
Output Power:N/A
Construction:Permanent Magnet
Torque:N/A
Usage:Home Appliance
Efficiency:IE 1

Specifications:
Model: RS-7712SHFC2J2-13160RIB
Voltage: 230VDC
Current: 0.9A
Maximum efficiency point torque: about 91.64mNm (for reference only)
Speed: 12000RPM
Typical uses: household appliances, juicers, grinders, hand blenders.
Shaft diameter: the flower shaft portion is 4.5 mm; the bottom round shaft portion is 5 mm.
Screw hole: 2- M4.0
Screw hole distance: 29mm
This high-power motor is very efficient and can be driven at 6V.
12V measured speed , 600 rpm, current 40mA;
24V measured speed ,1200 rpm, current 40mA;
48V measured speed ,2400 rpm ,current 60 mA.
This is DC 230V, can not be directly connected to household electricity, must pass through a rectifier bridge, the middle two terminals of the rectifier bridge are connected to AC 220V, the right side is output positive, the left side is output negative, can be connected to the motor's two leads On the foot, regardless of the positive and negative poles, the reverse direction is the opposite direction of rotation.
The product is stocked, and some motors have oxidation points.If you mind that please donot order.
Package included:
Motor x1

Size:
