30PCS/LOT DC-DC 15A Power Rectifier Adjustable Step Down Power Module
- 30PCS/LOT DC-DC 15A Power Rectifier Adjustable Step Down Power Module
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Output Power:1 - 50W
is_customized:Yes
Type:DC/DC Converters
Size:other
Input Voltage:4-32V
Output Current:15A
Output Voltage:1.2-32V
Output Frequency:150KHz
Weight:0.1
Model Number:other
Product Description

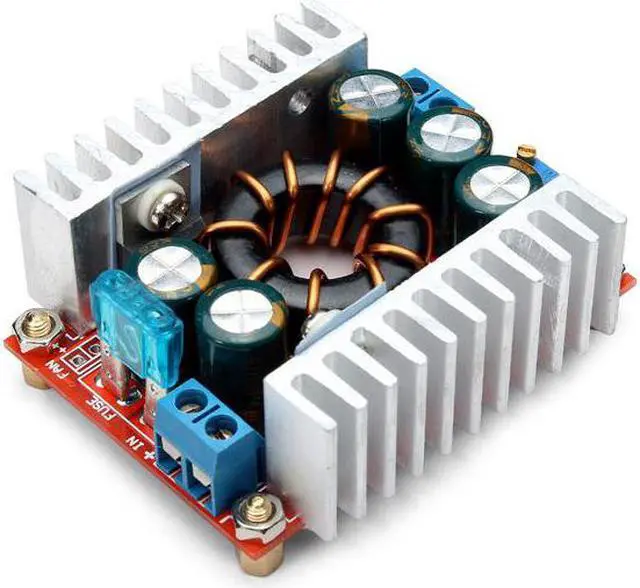

DC-DC 15A Power Rectifier Adjustable Step Down Power Module
Module parameters:
Input voltage: 4-32V Keep voltage margin.
Output voltage: 1.2-32V continuously adjustable (continuously variable) 1.2-32V fixed output
The minimum differential input and output: 1V
Output Current: 0-15A long natural heat inside 10A, temperature does not exceed 60 degrees, the peak of up to 20A. Deration is required at high ambient temperatures.
Working temperature: -40 ~ + 85 degrees
Operating frequency: 150KHz
Conversion efficiency: up to 98% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: (limit current 25A) input fuse is 15A
Overtemperature protection: (automatically reduce the output current after overtemperature)
Input Reverse Polarity Protection: None (if necessary, please enter the string into the diode)
Connection: terminals, welding, V-IN input, V-OUT output
Package included:
1 x DC-DC 15A Power Rectifier Adjustable Step Down Power Module
is_customized:Yes
Type:DC/DC Converters
Size:other
Input Voltage:4-32V
Output Current:15A
Output Voltage:1.2-32V
Output Frequency:150KHz
Weight:0.1
Model Number:other
Product Description
DC-DC 15A Power Rectifier Adjustable Step Down Power Module
Module parameters:
Input voltage: 4-32V Keep voltage margin.
Output voltage: 1.2-32V continuously adjustable (continuously variable) 1.2-32V fixed output
The minimum differential input and output: 1V
Output Current: 0-15A long natural heat inside 10A, temperature does not exceed 60 degrees, the peak of up to 20A. Deration is required at high ambient temperatures.
Working temperature: -40 ~ + 85 degrees
Operating frequency: 150KHz
Conversion efficiency: up to 98% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: (limit current 25A) input fuse is 15A
Overtemperature protection: (automatically reduce the output current after overtemperature)
Input Reverse Polarity Protection: None (if necessary, please enter the string into the diode)
Connection: terminals, welding, V-IN input, V-OUT output
Package included:
1 x DC-DC 15A Power Rectifier Adjustable Step Down Power Module
