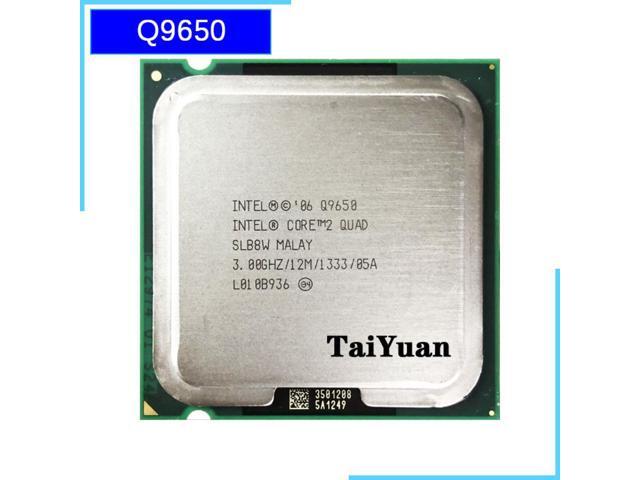

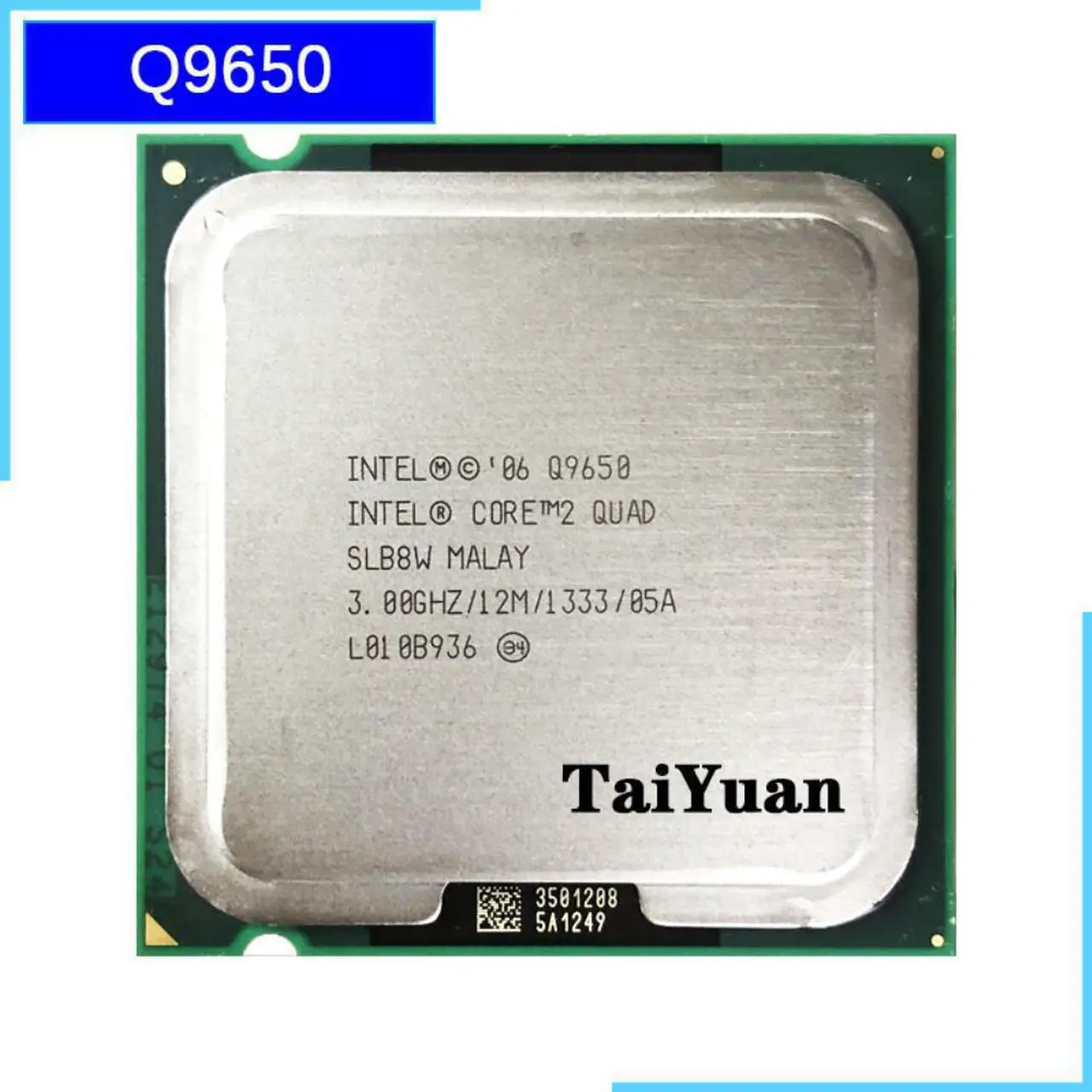

Intel Core 2 Quad Q9650 3.0 GHz Quad-Core CPU Processor 12M 95W 1333 LGA 775

Intel Model:Intel Core 2 Quad Q9650
Support Memory Channels:2
PCIe VERSION:PCIe 2.0
Application:Desktop
Number OF Therads:4
Usage Scenario:Others
Support Memory Type:DDR3
Support Chipset Models:Intel Others
Processor Type:Intel Core
Chip Process:45 nanometers
Default TDP / TDP:95W
Origin:CN(Origin)
Unlocked:Yes
Socket Type:LGA 775
Type:Quad-Core
GPU-built:Yes
L3 Cache Capacity:N/AMB
Number of Cores:Quad-Core
Package:No
L2 Cache Capacity:12MBMB
Model Number:Intel Core 2 Quad Q9650

Intel Core 2 Quad Q9650 specifications
Architecture / Microarchitecture
Microarchitecture
Core
Processor core
?
Yorkfield
Core stepping
?
E0 (QHGF, SLB8W)
CPUID
1067A (SLB8W)
Manufacturing process
0.045 micron
820 million transistors
Die
214mm2
Data width
64 bit
The number of CPU cores
4
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size
?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size
?
2 x 6 MB 24-way set associative caches (each L2 cache is shared between 2 cores)
Multiprocessing
Uniprocessor
Features
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
EM64T / Extended Memory 64 technology / Intel 64
?
NX / XD / Execute disable bit
?
SSE4.1 / Streaming SIMD Extensions 4.1
?
VT-x / Virtualization technology
?
VT-d / Virtualization for directed I/O
TXT / Trusted Execution technology
Low power features
Enhanced SpeedStep technology
?
Stop Grant state
?
Halt state
Extended Halt state
Extended Stop Grant State
Sleep state
?
Deep Sleep state
?
Deeper Sleep state
?
Integrated peripherals / components
Integrated graphics
None
Electrical / Thermal parameters
V core
?
0.85V - 1.3625V
Minimum/Maximum operating temperature
?
5°C - 71.4°C
Minimum/Maximum power dissipation
?
12 Watt (TDP in extended HALT state) / 132.48 Watt
Thermal Design Power
?
95 Watt
