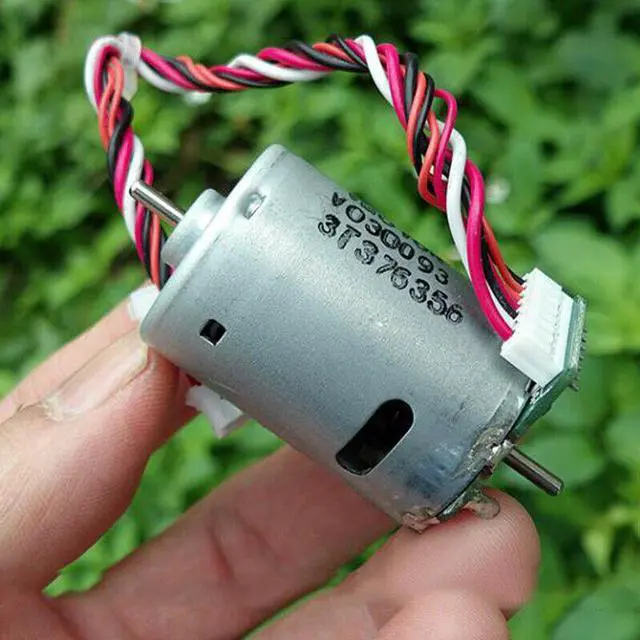

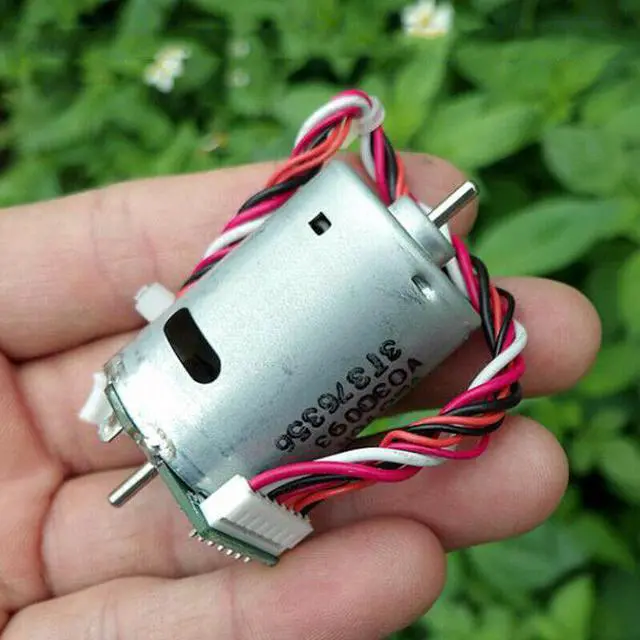

JOHNSON RS-385 Micro 27.5mm Electric Motor DC 12V-24V 13600RPM Large Torque Dual Shaft With PCB Board Hall Speed Encoder 7-wire

Origin:CN(Origin)
Certification:ROHS
Continuous Current(A):not clear
Commutation:Brush
Model Number:RS-385
Type:Micro Motor
Protect Feature:Totally Enclosed
Output Power:not clear
Construction:Permanent Magnet
Torque:not clear
Usage:Home Appliance
Efficiency:IE 1

Specification
:
1.Motor diameter: 27.5mm
2.Motor length: 39.3mm
3.Output shaft diameter: 2.3mm
4.Output shaft length: 10mm/11.5mm

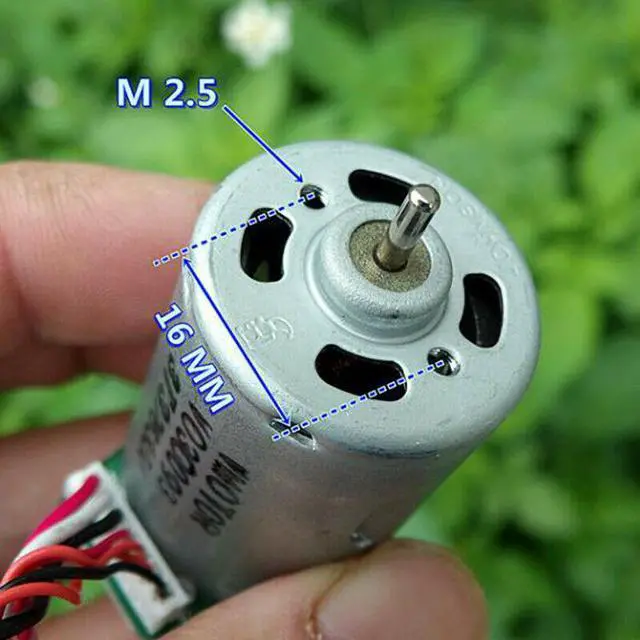

5.Screw hole diameter: M2.5
6.Screw hole distance: 16mm
7.Weight: 72 grams
8.Voltage range: DC 12V-24V
9.Test data
Voltage: 12V Speed:6600RPM Current:95mA
Voltage:24V Speed:13600RPM Current:115mA
10.Note: We also lack of more data for the motor and the hall PCB board,please buyers make sure you can use the motor if you need.
Package Include:
Motor x 1pc
