    Micro 2-phase 4-wire 10MM Stepper Motor 34mm Linear Actuator Precision Long Linear Screw Slider Nut Forward&Backward Motion

    Be the first to review this product...
    • Micro 2-phase 4-wire 10MM Stepper Motor 34mm Linear Actuator Precision Long Linear Screw Slider Nut Forward&Backward Motion
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Origin:CN(Origin)
    Certification:CCC
    Current / Phase:300mA
    Step Angle(degrees):18
    Phase:2
    Type:Hybrid
    Model Number:Mini 10mm Stepper Motor
    Model:Mini 10mm Stepper Motor
    Wiring Configuration:4-Wire Bipolar
    Shaft Diameter:2mm
    Nominal Rated Input Voltage:5V
    Shaft Type:Rotary Actuator

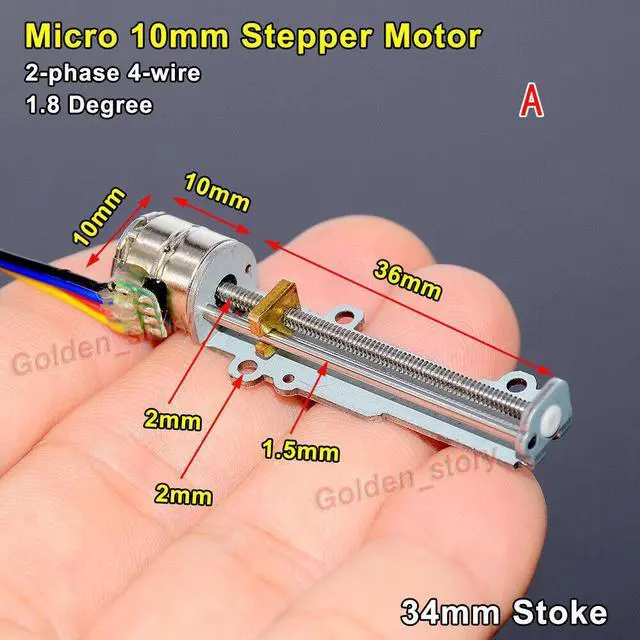

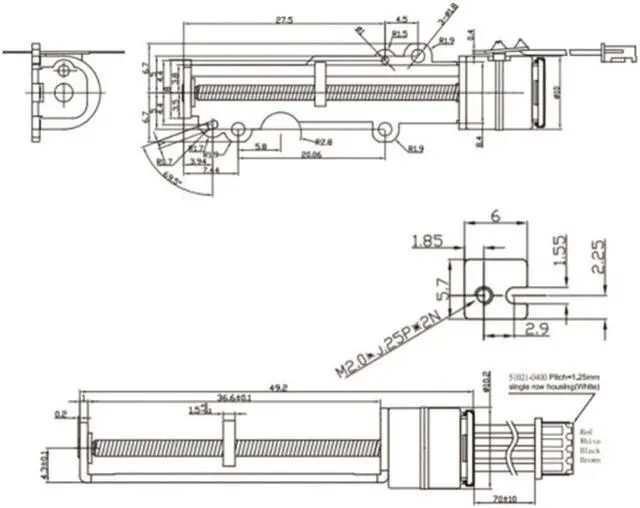

    Specification
    :
    Stepper Motor diameter: 10mm
    Output shaft length: 36mm Stroke 34mm
    Screw shaft diameter 2mm
    Rod diameter: 1.5mm
    Step Angle: 18 deg/step
    Cable length: 250mm
    Red A+,
    black
    A-, Yellow B+, Blue B-
    Package Include:
    Screw Stepper Motor x 1pc
