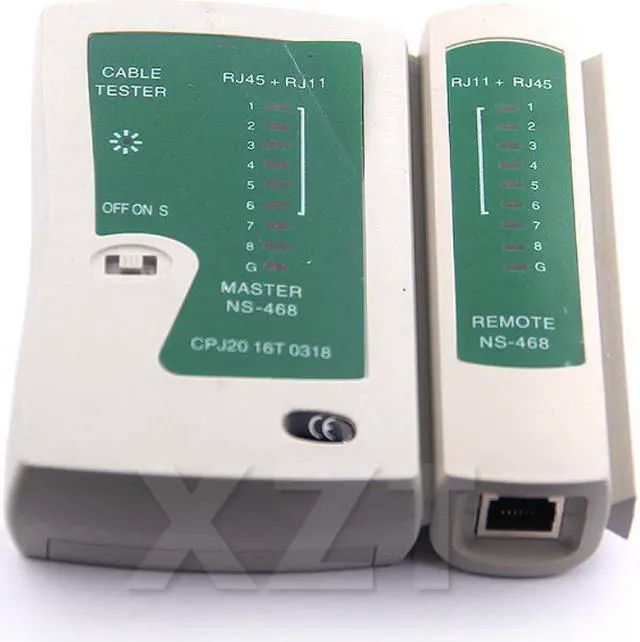

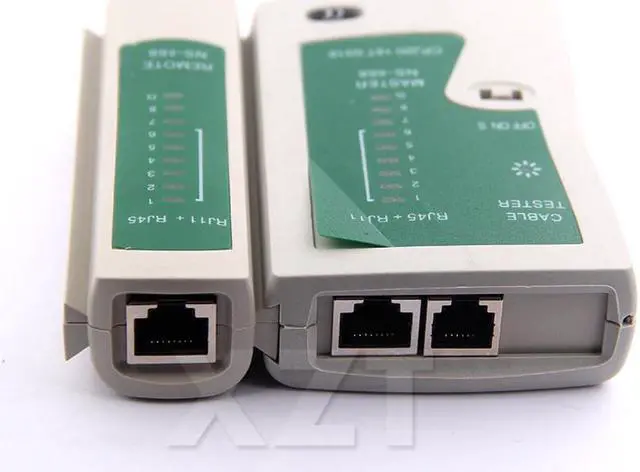

5PCS EST NS-468 RJ45 RJ11 Cable Tester Networking Tool Professional Network Cable Tester

Certification:CE
Origin:CN(Origin)
Package:No
Type:Cable Tester
Model Number:Cable Tester Networking Tool
NO:XZT000010

10PCS EST NS-468 RJ45 RJ11 Cable Tester Networking Tool Professional Network Cable Tester
Product Description
Function:
1. Can test correspoindingly double-twisted cable1,2,3,4,5,6,7,8 and G,meanwhile,can judge wrong connection,short circuit and open     circuit.
2. NS-468b tests BNC,RJH and RJ45;NS-468 tests RJ11 and RJ45;NS-468N tests RJ45 and BNC,ST-248 tests RJ45 and BNC;
3. Test of double-twisted cables: Switch on the power. (S is slow automatic grade, Mis manual.) Put cables into both main tester and       remote tester. The lights of the main tester will turn on sequently form 1 to G.
  Main Tester: 1-2-3-4-5-6-7-8-G
  Remote Tester: 1-2-3-4-5-6-7-8-G           RJ45
                           1-2-3-4-5-6.........            RJ12
                            2-3-4-5..............           RJ11
Attention:
1. If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tseter and remote tester will not turn on.
2. If several cables are not connected, several lights will not turn on respectively. If less than two cables are conntected,none of the     lights is on.
3. If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on:
  Main tester: 1-2-3-4-5-6-7-8-G
  Remote tester: 1-4-3-2-5-6-7-8-G
4. If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding liaghts is on.
5. If test patch panels or wall plate outlels, two cables which can match each other (RJ45) will be connected to the tester.
6. If test cables of the same axes, BNC turns on when the cable works.
