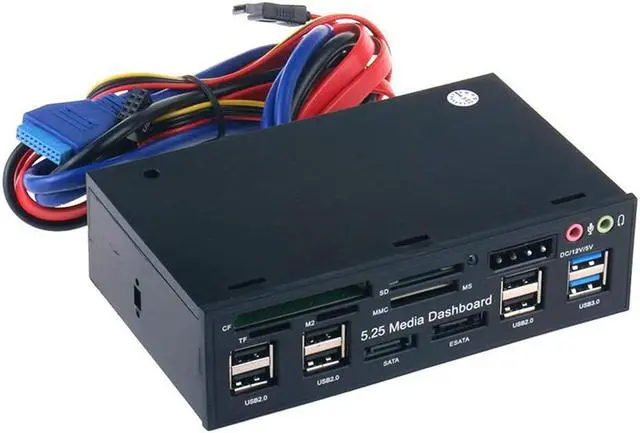

5.25 Inch PC Media Dashboard Front Panel Audio With SATA eSATA 2 x USB 3.0 And 6 x USB 2.0 Hub SD TF MMC M2 CF MS Card Reader

Interface Type:USB 2.0
Ports:8
Origin:CN(Origin)
Funtion:Reader
Standard:USB 3.0
Length:Other
Package:Yes
Model Number:ZD0067
Certification:CE/RoHS
Plug Standard:None

5.25 Inch PC Media Dashboard Front Panel Audio With SATA eSATA 2 x USB 3.0 And 6 x USB 2.0 Hub SD TF MMC M2 CF MS Card Reader
Features:
This front panel media dashboard is made of ABS material and etched on surface. It is stable with high speed and safety. It is durable as well as beautiful. It is anti-rust and hard to be scrapped
20Pin Interface. It has build-in USB 3.0 Port, USB 2.0 port, e-SATA, SATA port, 4 pin IDE Power port or DC 12V, Audio, Multi Card Reader, which can command your needs; Power 12V/5V output. Note: 4pin power connector is to pay attention to the direction of connection, otherwise it will cause a short circuit, the product map has the correct link method
2 USB 3.0 Hub(Host), transfer speed up to 5.0Gbps; 6 USB 2.0 Hub, transfer speed up to 480Mbps; e-SATA port, the transfer speed up to 3.0Gbps; SATA Port, the transfer speed up to 1.5Gbps
All-in-one Card Reader: Support SD / MMC / CF / MS / TF / M2, At the same time Card reader can only read one memory card.
Function:
2 USB 3.0 Hub(Host), transfer speed up to 5.0Gbps,downward is compatible with USB2.0 and USB1.1.
USB 3.0 20Pin Interface
6 USB 2.0 Hub, transfer speed up to 480Mbps
e-SATA port, the transfer speed up to 3.0Gbps
SATA Port, the transfer speed up to 1.5Gbps
Audio ports: front speakers and microphone. It solves the inconvenience of the plug behind your chassis.
All-in-one Card Reader: Support SD / MMC / CF / MS / TF / M2, At the same time Card reader can only read one memory card.
Power 12V/5V output
Supply Port4Pin Power Interface
Operating System: Window98/Me/2000/XP/Vista/win7/ win8, Mac9.X/10.X/Linux11. Net Weight:297g
Gross Weight:413g
Package Size:198x170x66mm
Package:
1 x 5.25" Internal SATA e-SATA Dual USB 3.0 Six USB 2.0 Five-in-one Card Reader Multi-Function Front Panel Media Dashboard
1 x User Manual
4 x Screws
NOTE:
At the same time, Card reader can only read one memory card.
When the computer can not shut down, unplug the 4-pin power cord connected to the computer, can be resolved. Because some computer motherboards in the shutdown will also appear after the return of the phenomenon, leading to not immediately shut down.
4pin power connector is to pay attention to the direction of connection, otherwise it will cause a short circuit, the product map has the correct link method.
