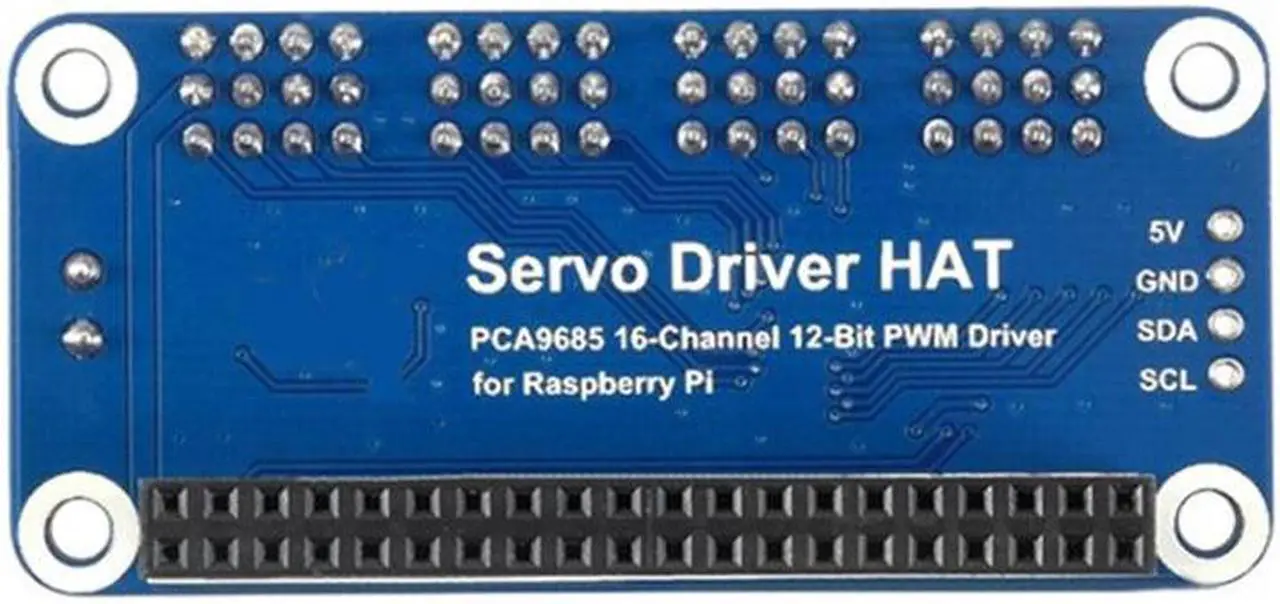

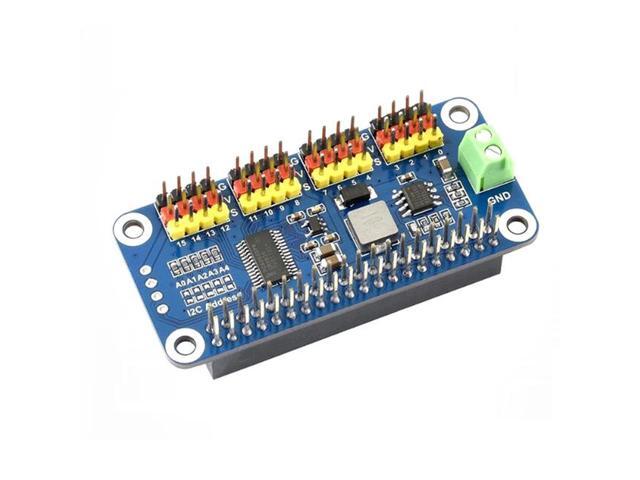

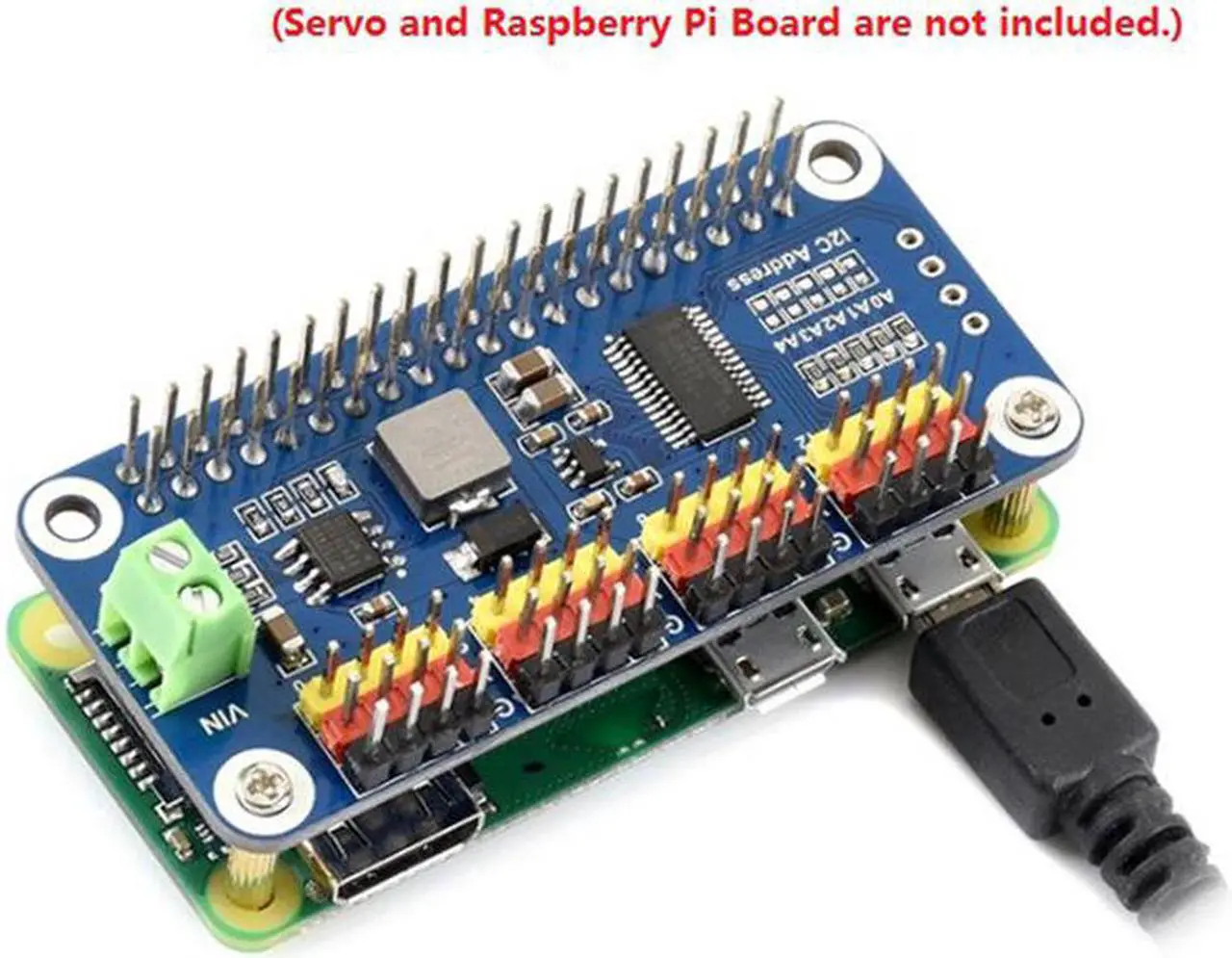

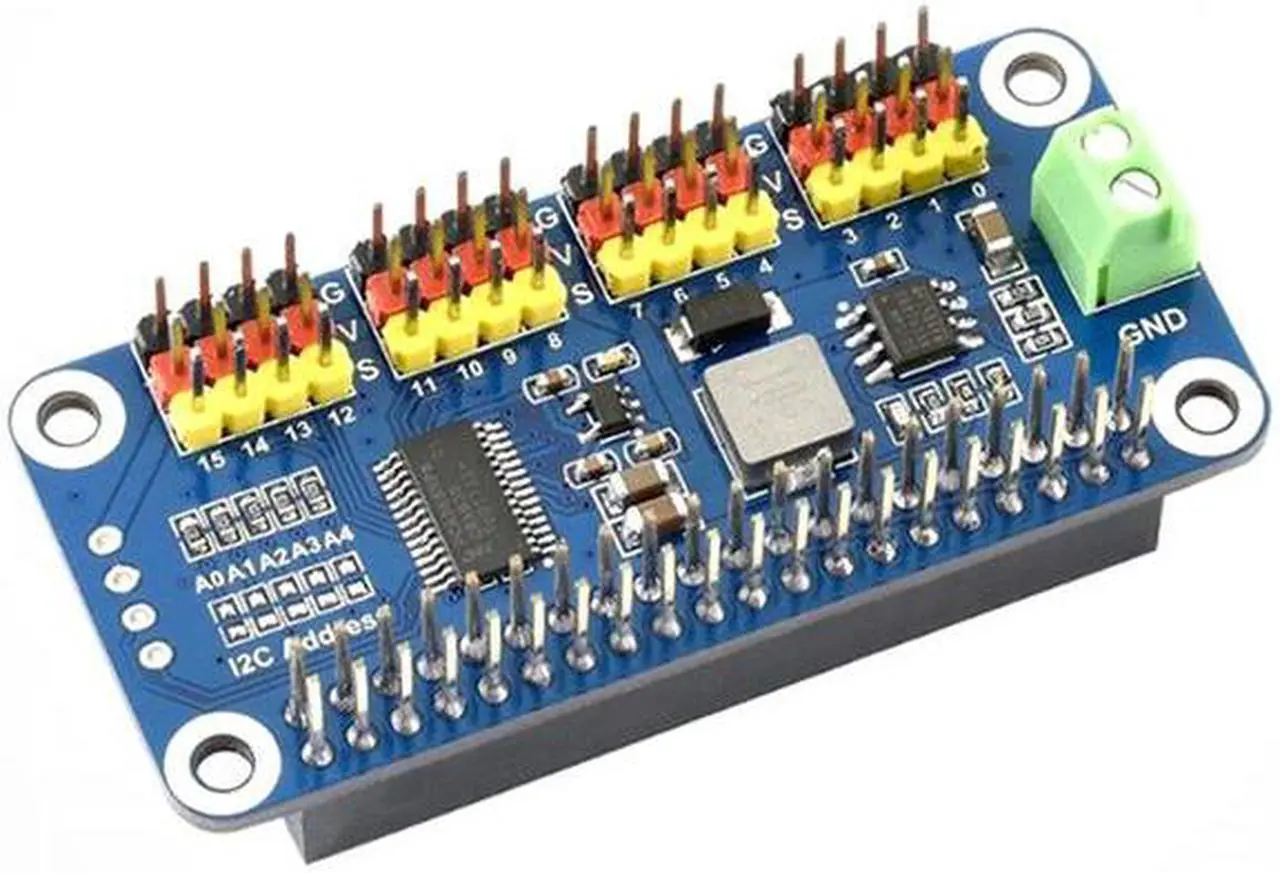

16-CH 12-Bit PWM Servo Motor Driver Module Shield Expansion Board HAT for Raspberry Pi RPI Zero W WH 3B Plus 4B
- 16-CH 12-Bit PWM Servo Motor Driver Module Shield Expansion Board HAT for Raspberry Pi RPI Zero W WH 3B Plus 4B
+
+
Overview
Specs
Reviews
Demo Board Type:ARM
Model Number:for Raspberry Pi 4 2gb 4gb 8gb Accessories kit
Servo voltage:5V
Origin:CN(Origin)
Type:Other
Standard for Raspberry Pi 40PIN GPIO expansion header, support for Raspberry Pi series boards, Jetson Nano
Up to 16 channels of servo/PWM output, 12-bit resolution per channel (4096 scale)
Integrated 5V regulator, output current up to 3A, can be powered by through VIN terminal
Standard steering gear interface, support SG90, MG90S, MG996R and other common steering gears.
Reserve I2C control pins, allowing use with other control boards
Material:plastic
colour:Blue
Package Contents:
1 x Servo Driver HAT
1 x RPi screws pack
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Model Number:for Raspberry Pi 4 2gb 4gb 8gb Accessories kit
Servo voltage:5V
Origin:CN(Origin)
Type:Other
Standard for Raspberry Pi 40PIN GPIO expansion header, support for Raspberry Pi series boards, Jetson Nano
Up to 16 channels of servo/PWM output, 12-bit resolution per channel (4096 scale)
Integrated 5V regulator, output current up to 3A, can be powered by through VIN terminal
Standard steering gear interface, support SG90, MG90S, MG996R and other common steering gears.
Reserve I2C control pins, allowing use with other control boards
Material:plastic
colour:Blue
Package Contents:
1 x Servo Driver HAT
1 x RPi screws pack
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
