NGFF M.2 to PCI-E 4X Riser Card M2 M Key to PCIe X4 Adapter with LED Indicator SATA Power Riser for Bitcoin Miner Mining

Origin:CN(Origin)
Type:Other
Certification:NONE
Model Number:NGFF M2 M.2 To PCIE

NGFF M.2 to PCI-E 4X Riser Card M2 M Key to PCIe X4 Adapter with LED Indicator SATA Power Riser for Bitcoin Miner Mining

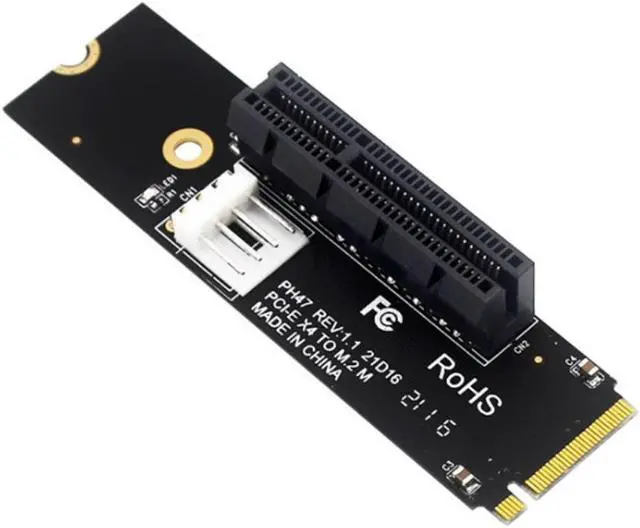

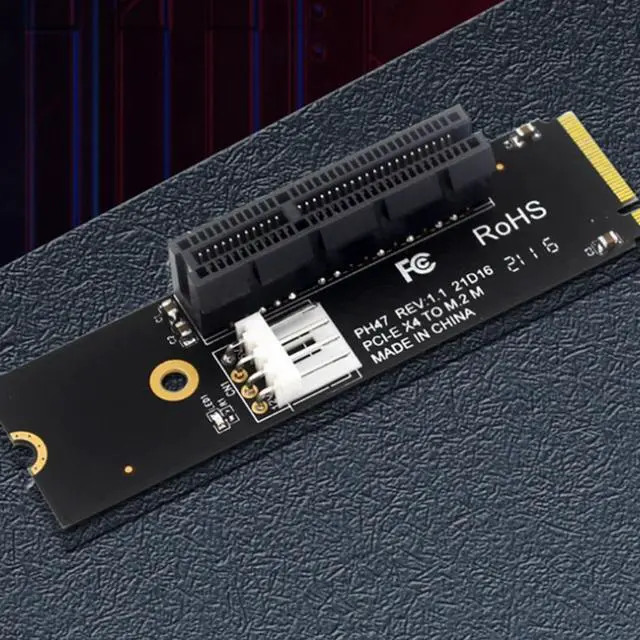

Transfer card from NGFF to PCI- E, expansion card from M.2 to PCI-E, X4 card slot.
Association standard M.2 M Key gold finger, high gold plating: strong oxidation resistance, good conductivity and wear resistance.
Multi-layer circuit boards are used for lossless transmission, and 4-layer circuit boards are used, which have strong anti-interference ability and effectively ensure the stability of PCI-E high-speed signal transmission, data integrity and impedance matching.
Adopt horizontal small 4PIN power supply interface to effectively avoid interference with PCI-E equipment after power cord is inserted.
At no cost, just for stability, four filter capacitors with large capacity and small volume are added.
Note: M.2 NGFF to PCI-E X4 riser card, use this riser card to convert M.2 NGFF interface to ordinary PCI-E X4 interface, there are 2 fixed holes on the board, 22 respectively x 60mm, 22 x 80mm, according to the length of the slot in your machine, it can be broken and positioned.
Type: Riser card
Product Name: NGFF M.2 to PCI-E 4X Riser Card
Features: 3.3V 12V LED Indicator
Power Supply: SATA Power Cable
Compatible: with 1X 4X PCIE Slot
Interface: NGFF M2 to PCIE X4
size:80x22mm
Material:PCB+Plastic+Metal
colour:black

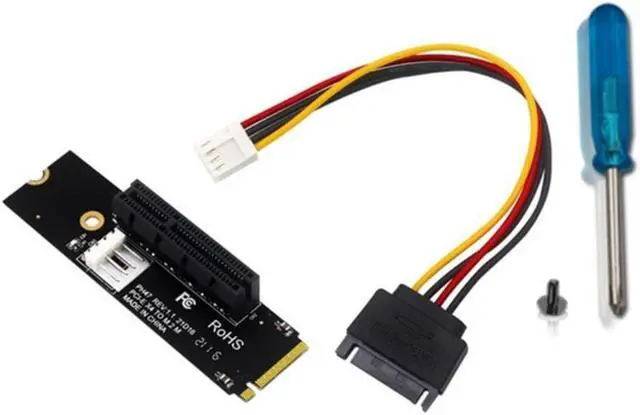

Package Contents:
1 * NGFF to PCI-E riser card
1 * SATA Power Cable
1 * Screw
1 * Screwdriver(The color and style of the screwdriver are random, and the designation is not accepted)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
