90W 12V Silent Fanless Low Power Consumption In-Line DC-ATX ITX Desktop Chassis Computer Power Supply Module 20PIN

Origin:CN(Origin)
Type:Dada Transfer Cable
Certification:NONE
Product name:DCATX power supply module
Power supply:90W
Input voltage:12V
Output voltage:0.05A
Product size:47.5x24.6mm thick 13.3mm

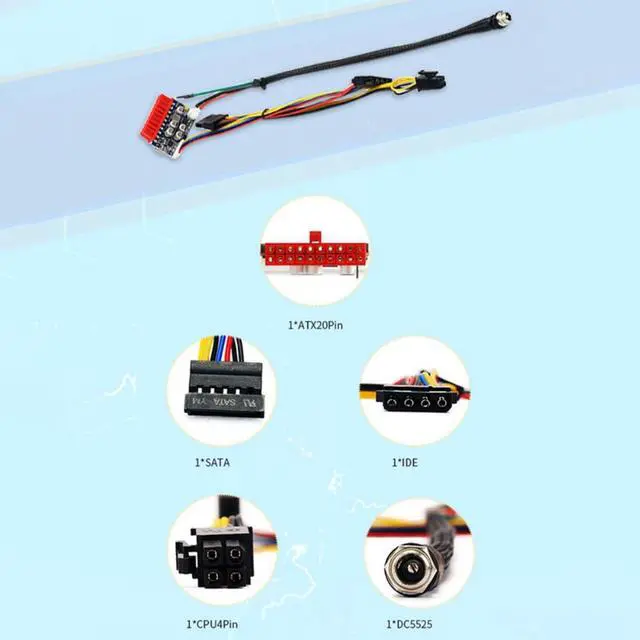

Interface:1ATX 20PIN; 1CPU4pin; 1SATA; 1IDE; 1DC5525
Cable length:DC cable length 320mm; IDE200mmSATA150mmCPU4pin210mm
Power standard:ATX 12V 1.3
Applicable CPU range:low and medium power consumption CPU
PFC type:no PFC

90W 12V Silent Fanless Low Power Consumption In-Line DC-ATX ITX Desktop Chassis Computer Power Supply Module 20PIN
90W output 12V DC input.
20-pin ATX connector, directly plug into the ATX connector.
Fanless design, silent.
Industrial solid capacitors are used, which have a long service life and are very suitable for harsh evironment.
Lightweight and compact design, saving space and durable.
Product name: DC-ATX power supply module
Output voltage: maximum load +5VSB: 2A; +5VDC: 4A; +3.3VDC: 4A; +12VDC: 4A; -12VDC: 0.05A
Interface: 1 x ATX 20PIN; 1 x CPU4pin; 1 x SATA; 1 x IDE; 1 x DC5525
Cable length: DC cable length 320mm; IDE200mm + SATA150mm + CPU4pin210mm
Power standard: ATX 12V 1.3
Applicable CPU range: low and medium power consumption CPU
CPU power supply interface: 4pin
colour:Blue red
Material:PCB+metal
size:16 x 8 x 4CM
Package Contents:
1 x ATX power module
1 x Power cord
1 x Connecting line
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
