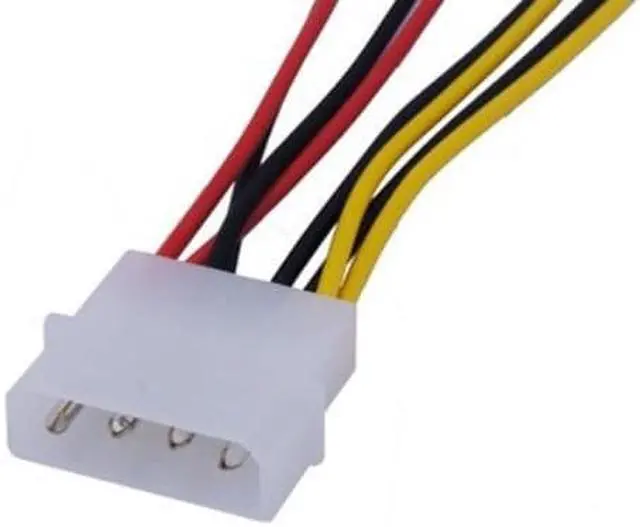

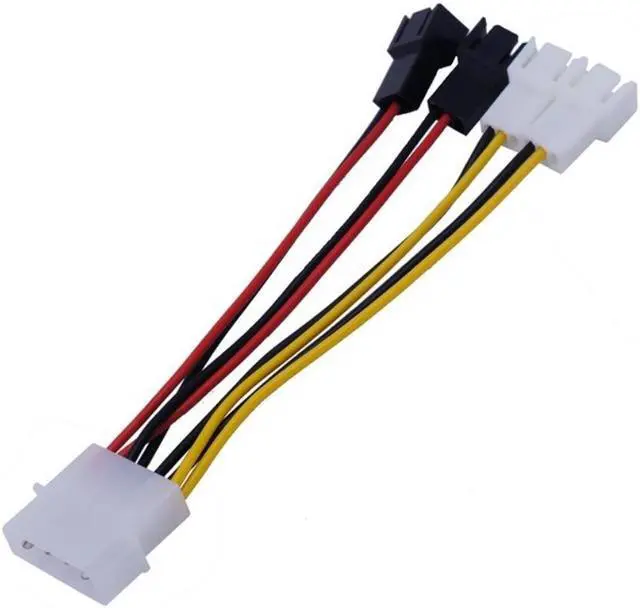

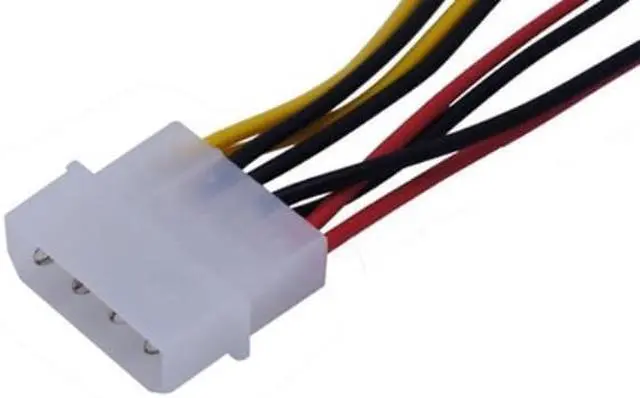

1pcs/lot Computer Cooling Fan Power Cables 4Pin Molex To 3Pin Fan Power Cable Adapter Connector 12v*2/5v*2 for CPU PC Case Fan

Origin:CN(Origin)
Type:PCI Cables
Certification:NONE
Wire material:oxygen-copper
length:0.12m
Converter type:Adapter/Adapter Cable
interface type:4Pin

1pcs/lot Computer Cooling Fan Power Cables 4Pin Molex To 3Pin Fan Power Cable Adapter Connector 12v*2/5v*2 for CPU PC Case Fan
[Product name]: 2 speed control cable for large 4Pin to small Pin fan
[Product voltage]: 2 channels 12V, 2 channels 5V
[Product length]: 12.5cm
[Wire Model]: 1007 22AWG
[Insulation material]: PVC insulation
[Conductor specifications]: 17*0.12TS
[Conductor material]: tinned copper
[Outer diameter of wire]: OD1.6mm
[Rated temperature]: 80
[Wire color]: black, white, red,
[Product interface]: power supply 4Pin to 3Pin interface, one point four channels (2 12V 2 5V)
[Product function]: Solve the problem that the 3Pin interface is not enough. You can adjust the fan speed by changing to a different interface.
Product usage: Take power from the D port of the power supply, and can start 2 12V or 2 5V fans at the same time!
              The 5V interface can be used for fan speed reduction and used as a speed reduction line
Instructions for use: Two channels of 12V power supply, the 12V fan runs at full speed normally (12V is the yellow and black line)
              Two-way 5V power supply, 12V fan using 5V can reduce the speed and reduce wind noise! (5V is red and black wire)
Because it is only used for power supply, each small 3P plastic shell actually only connects 2 wires, and this power supply has no speed measurement function.
