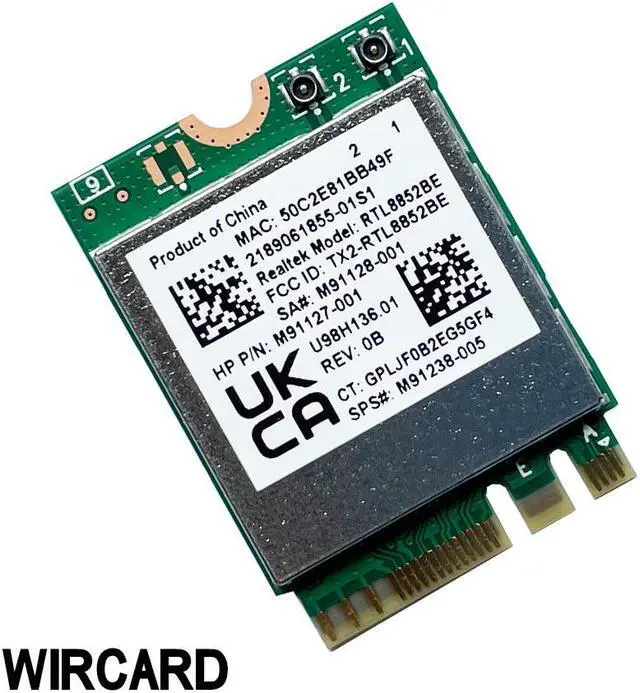

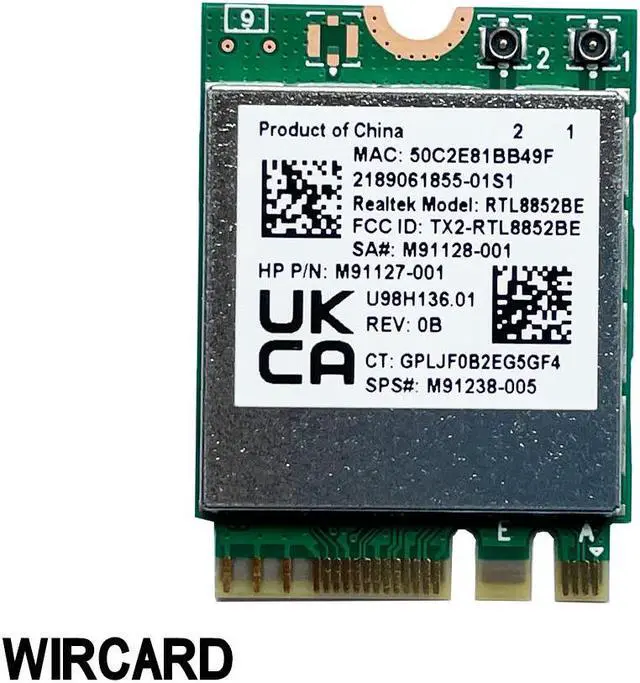

RTL8852BE Dual Band 2.4G/5G WIFI6 802.11ax WIFI Card 1800M BT5.2 Module Network NGFF M.2 For laptop/PC Support Win10/Win11

Transmission Rate:1300Mbps
Type:wireless
Kind:Internal
Origin:CN(Origin)
Interface Type:NGFF
Wi-Fi Supported Frequency:2.4G & 5G
Wireless Protocol:802.11n
Applicable Network Type:Gigabit Ethernet
Application:Laptop
Package:Yes
Certification:CE
Transmission Speed:1200 Mbps
Model Number:RTL8852BE

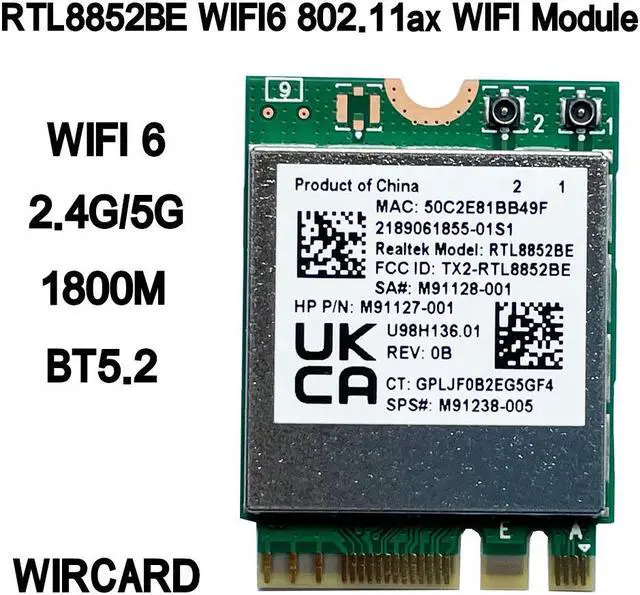

RTL8852BE WLAN 802.11ax 2T2R
+ BT5.2 M.2 2230 Combo Card
The
RTL8852BE-M2CC
is a highly integrated singlechip that support 2stream 802.11ax solutions with
Multiuser MIMO (MultipleInput, MultipleOutput) with Wireless LAN (WLAN) PCI Express
network interface controller with integrated Bluetooth Smart Ready USB interface controller. It
combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in single chip. The RTL8852BE-M2CC
provides a complete solution for a highperformance integrated wireless and Bluetooth device.
common Features

Form factor: NGFF M.2 2230 (AE Key) type.

Supports for BT& WLAN Coexistence.

WAPI(WirelessAuthentication Privacy Infrastructure) certified.

RoHS Compliance.

Halogen Compliance.
1.2.2 Wi-Fi Features

IEEE 802.11a/b/g/n/ac/axWLAN.

WLAN supports 2.4GHz and 5GHz channel.

Supports lowpower PCIe Gen2 with L1SS.

Enterpriselevel securitysupporting:WPA,WPA2,WPA3,Open, sharedkey,
and pairwise key authenticationservices.

Maximum PHY data rate up to 286.8 Mbps using 20MHz bandwidth, 573.5Mbps using 40MHz
bandwidth, and 1201Mbps using 80MHz bandwidth.

TwoTransmit andTwoReceive paths 20MHz / 40MHz / 80MHz bandwidth transmission.

Supports 802.11ac 2T2R, Wave2 compliant with MUMIMO.

Supports 802.11ax 2T2R, with OFDMAand MUMIMO, by 4 types PPDU format, such as HESU
PPDU
,
HE

E
U
R
,

SU

PPD HE

MU

PPDU
,
and HE

TB

PPD
U
.
1.2.3 Bluetooth Features

Bluetooth: BT2.1/3.0/4.0/4.1/4.2/5.2.

Supports Class I (TX power maximum to +6dBm).

Supports 2 Mbps Bluetooth Low Energy (BLE), BLE long range.

Supports for SCATTERNET and PICONET.

Supports Secure Simple Pairing.

FastAGC controlto improve receiving dynamic range.

Dual Mode support: Simultaneous LE and BR/EDR.
