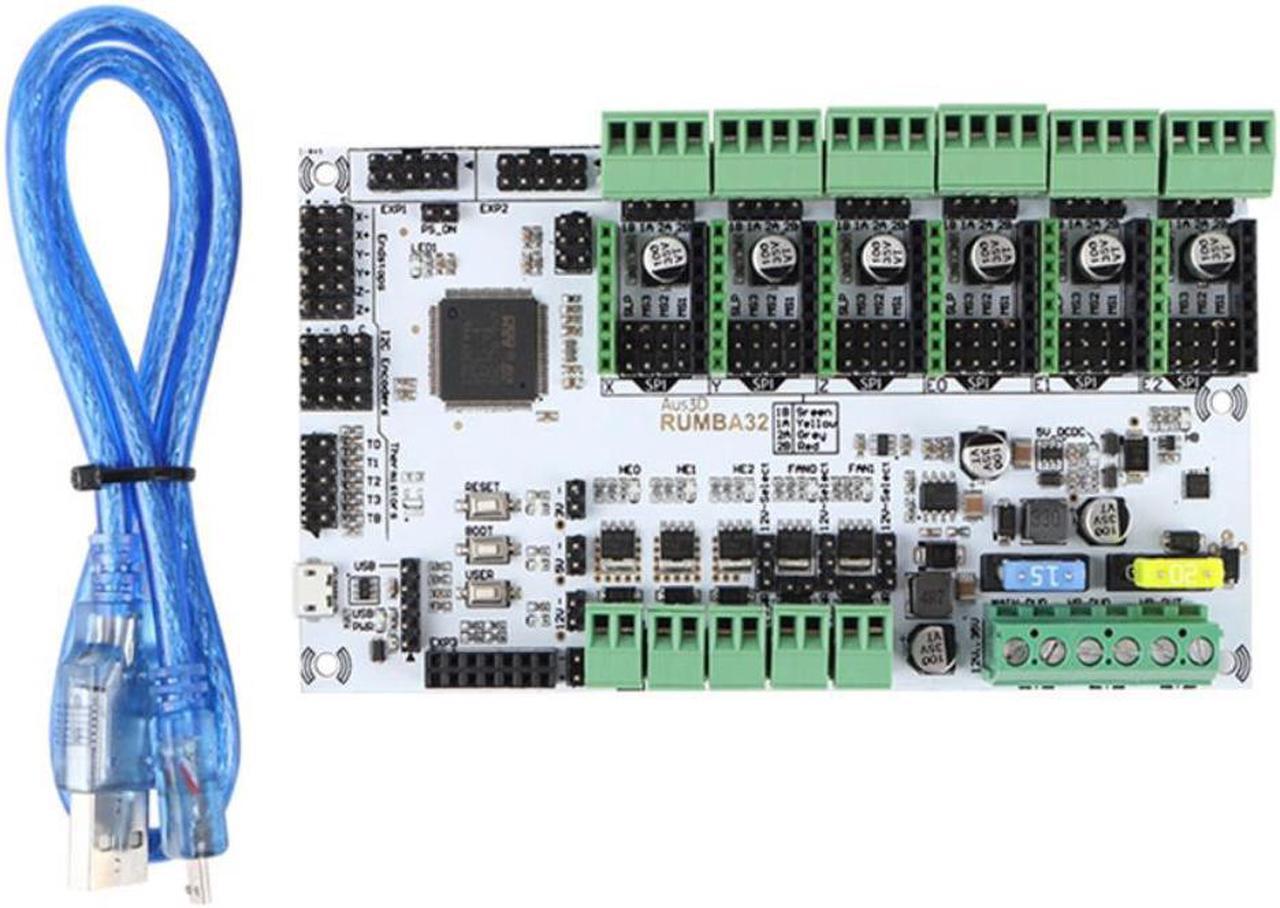

3D Printer RUMBA32 Main Control Board Compatible With Marlin 2.0 32-bit Rumba Upgrade Version DIY Supports 6 Motors

Origin:CN(Origin)
Model Number:Printer control board

Features
1. The RUMBA32 control board relies on Marlin 2.0's 32-bit support is a brand control board from Aus3D. which is evolving rapidly, so documentation and configuration settings may change.
2. RUMBA+ hardware design is adopted and upgraded with a processor: STM32F446. It has a clock frequency of 180MHz, 512Kb of flash memory and 128Kb of SRAM, all of which are built on the high-performance ARM architecture.
3. RUMBA32 is a 32-bit control board, it supports common character and graphic LCDs.

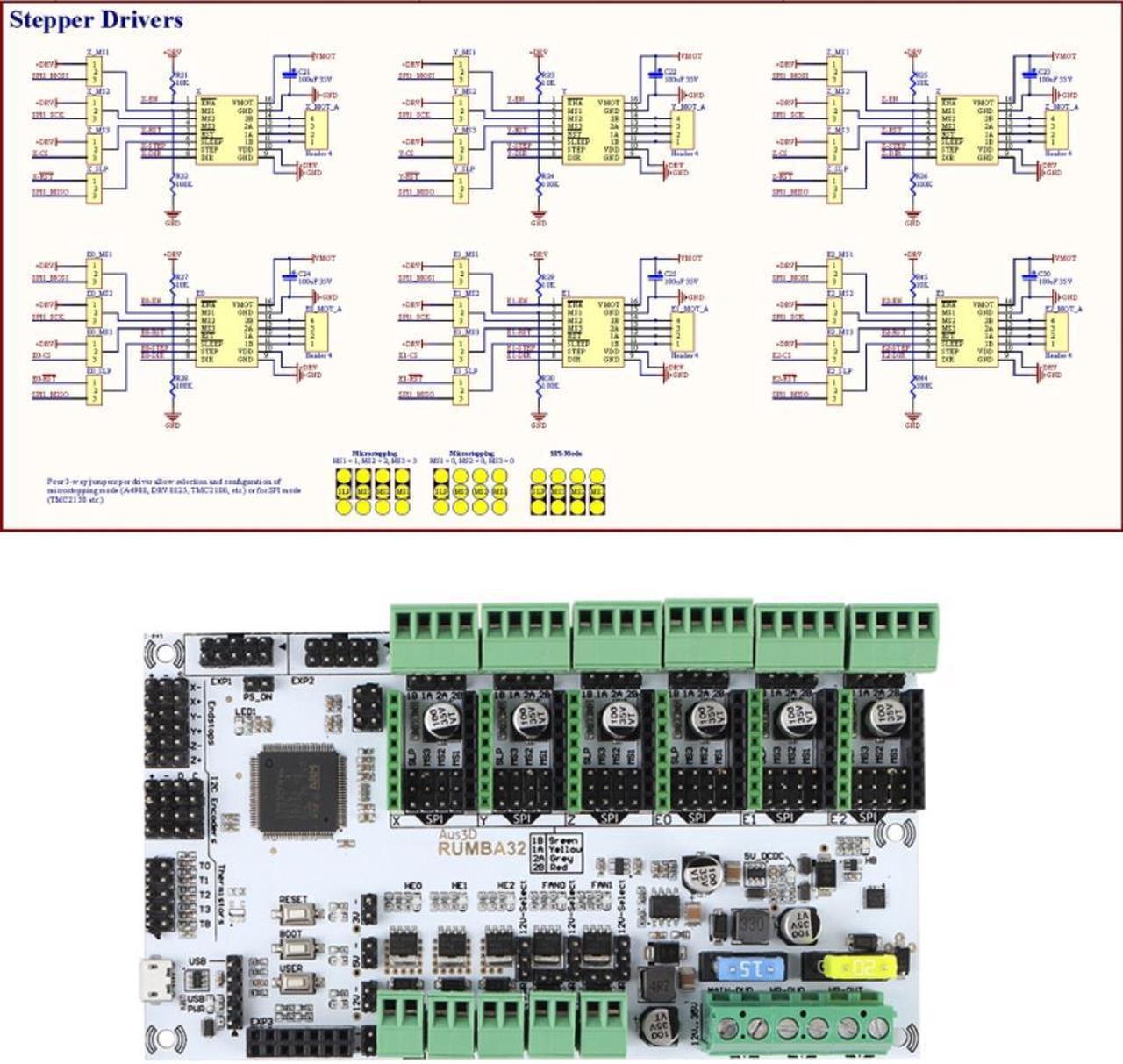

4. RUMBA32 supports standard stepper drivers, such as A4988, DRV8825, etc., but it also has additional SPI driver support: just change the jumper under any driver, and you can use SPI-based stepper drivers, such as TMC2130-no need Extra wiring!
5. RUMBA32 is a 32-bit control board running Marlin 2.0, performance upgrade,comfortable and familiar
Specifications:
Product name: RUMBA32 main control board
Input voltage (recommended): 12-24V
Input voltage (limit): 6-35V
Stepper driver: 6 (support SPI socket type StepStick)
MOSFET output: 6
Maximum bed current: 20A
Maximum heater current: 5A
Number of thermistor connections: 5
Limit switch: 6
Firmware: Marlin bufix-2.0
Material:plastic
Colour:White + Green
Size:approx 135x75mm/5.3x2.95in
Package Includes:
1 X Rumba Main Control Board
1 X Usb Data Cable
