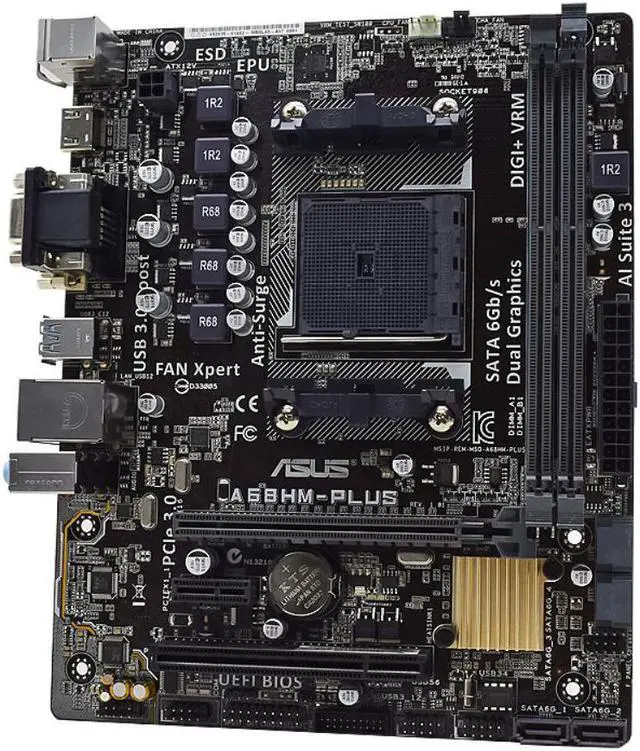

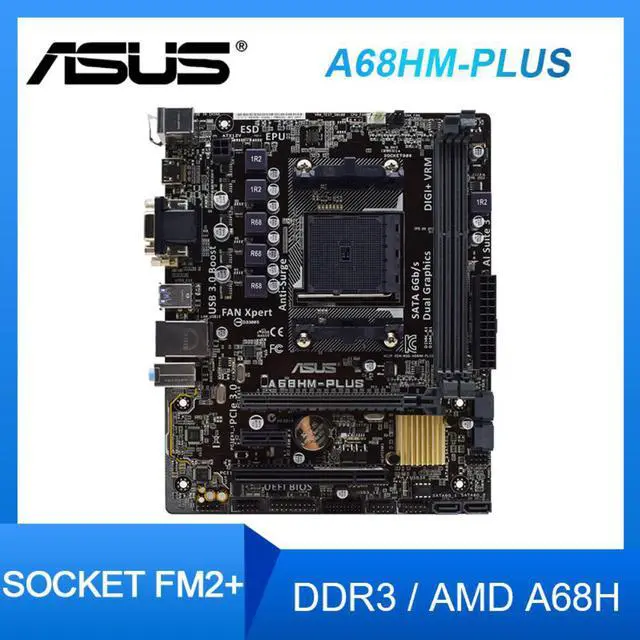

ASUS A68HM-PLUS AMD A68H Motherborad DDR3 32GB Socket FM2+ PCI-E 3.0 USB3.0 Micro ATX Placa-mãe support AMD A4-6300B cpus

Quality Certification:ce
Chipset:AMD A68H
Socket Type:Socket FM2+
Storage Interface Type:U.2
Onboard LAN:1x RJ45
Package:No
Model Number:A68HM-PLUS
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:32 GB
Chipset Manufacturer:AMD
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Office
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:1
Memory channel:Double
Number of SATA Ports:4
Form Factor:CeB
Support USB Type:USB 2.0
Launch Date:2004
Number of PCIe x 1:1
Certification:WEEE

Motherboard chip
Integrated chip sound card/network card
Main chipset AMD A68H
Chipset description Using AMD A68H chipset
Display chip APU built-in display chip (requires APU support)
Audio chip Integrated Realtek ALC887-VD 8-channel audio chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card
Processor specifications
CPU type AMD A10/A8/A6/A4/Athlon
CPU socket Socket FM2+
CPU description supports AMD Turbo Core 3.0 technology
Memory specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2400 (overclocking)/2133/1600/1866/1333MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 1×PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 4×SATA III interface
I/O interface
USB interface 4 × USB3.0 interface (2 built-in + 2 backplane), 6 × USB2.0 interface (4 built-in + 2 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface, 1×COM interface
Plate type
Motherboard board type Micro ATX board type
Dimensions 22.6×18.3cm
